S5002 (8983-3) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

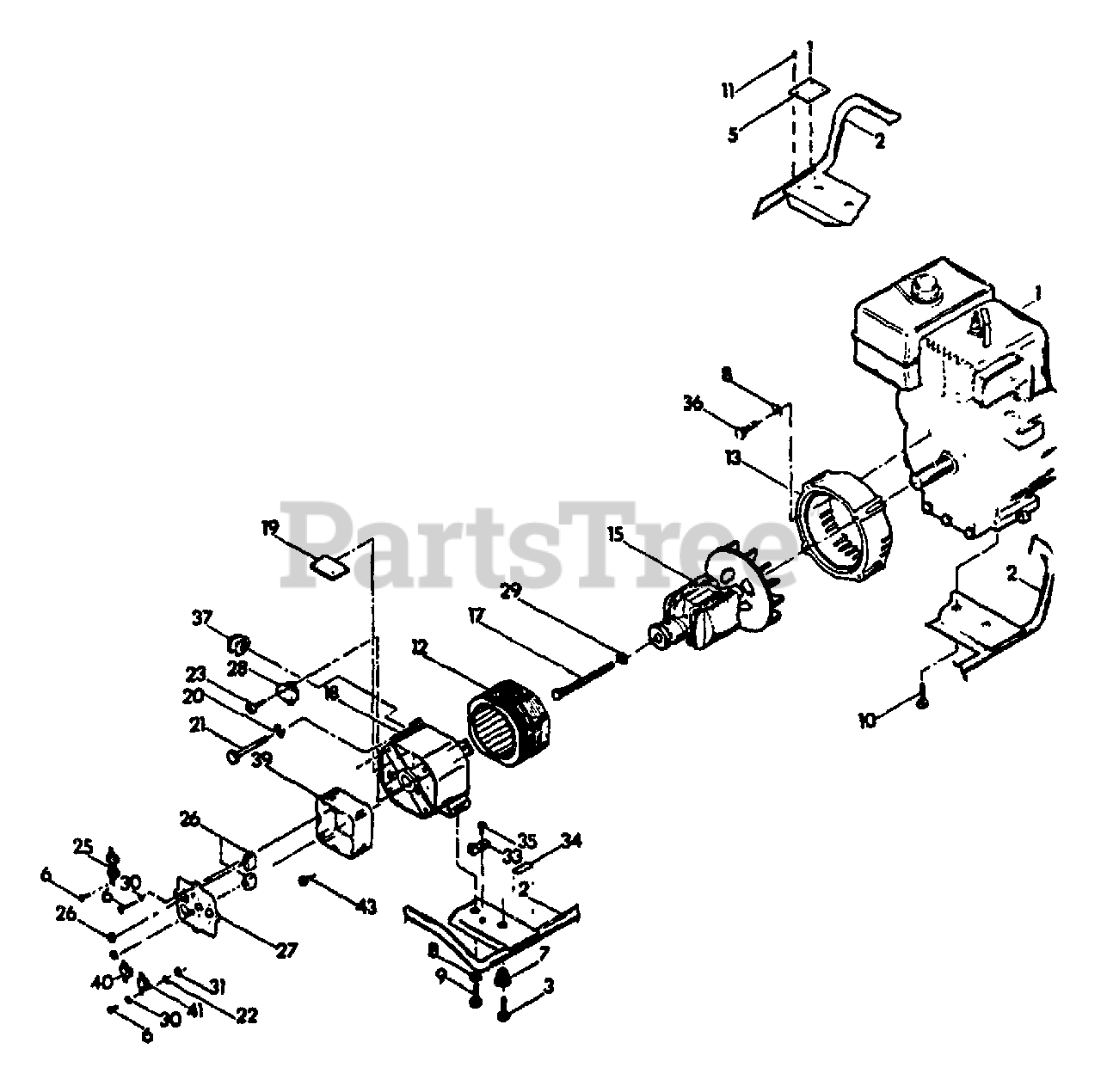

Generator Parts Diagram

  • Title

1

Briggs & Stratton 71389

ENGINE-Tecumseh HM100

$

$

Currently unavailable

2

Briggs & Stratton 72097

CRADLE ASSY

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (Taptite)-5/16"-18 x 1/2"

$

$

Not available

5

Briggs & Stratton 22906

PLATE, Serial
(Superseded to 690265)

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 36917

SCREW, Pan Head Machine- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCKWASHER-M6
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, Pan Head Machine-M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59837

SCREW (Taptite)- 3/8"-16 x 3/4"

$

$

Currently unavailable

11

Briggs & Stratton 36261

RIVET- Stainless Steel

$

$

Not available

12

Briggs & Stratton 74738

STATOR ASSY
(Superseded to 7074738YP)

$33.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365D

HOUSING, Engine Adaptor
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 73056

ROTOR ASSY

$

$

Currently unavailable

17

Briggs & Stratton 46858

BOLT, Rotor- 5/16"-24 x 8"

$

$

Currently unavailable

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Circuit- Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449F

BOLT, Stator- M6-1.00 x 140mm

$

$

Not available

22

Briggs & Stratton 22264

LOCKWASHER-No.8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72293

DECAL- Receptacle Panel
(Superseded to 7072293YP)

$51.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 69759

RECEPTACLE- 120 volts a-c

$

$

Currently unavailable

26

Briggs & Stratton 68819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

27

Briggs & Stratton 72290

PANEL
(Superseded to 7058295YP)

$47.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67451

FLATWASHER (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

LOCKWASHER Serrated (No 8)
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL- Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (Taptite)- No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22336

SCREW, Hex - 5/16"-24 x 3/4"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 72280

SHROUD, Panel
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68887

RECEPTACLE - 120/240 volts, 20 amp

$

$

Not available

43

Briggs & Stratton 73540

SCREW, Pan Head- M5-0.80

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector- 120 volts, 30 amp
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector- 120/240 volts, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
