S6031-KW (53DI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Mower Deck 60-Inch Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

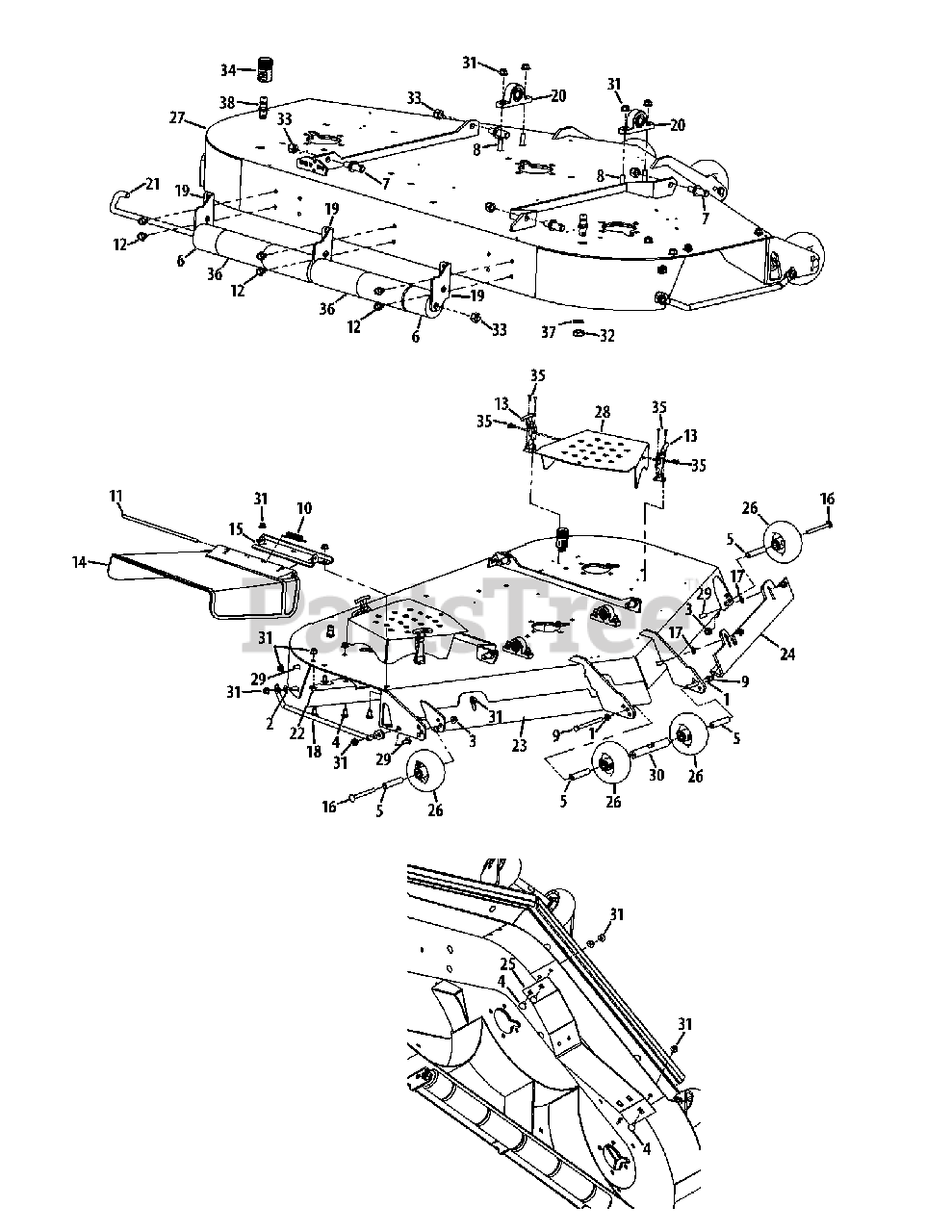

Mower Deck 60-Inch Parts Diagram

  • Title

1

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Washer, 3/8

$4.99

$

In Stock, Qty 5

0

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 750-3193

Wheel Spacer

$19.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01001169

Grass Catcher Roller

$25.99

$

In Stock, Qty 18

0

7

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 16

0

8

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0944

Hex Cap Screw, 3/8-16 x 4.50

$11.99

$

In Stock, Qty 11

0

10

Cub Cadet 732-04797

Torsion Spring, 0.639 x 2.16

$12.99

$

In Stock, Qty 8

0

11

Cub Cadet 747-3384

Chute Deflector Rod

$29.99

$

In Stock, Qty 7

0

12

Cub Cadet 01004304

Hex Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01005869P

T-Handle Latch Draw
(Superseded to 935-04038)

$16.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01006693P

Chute Deflector

$73.99

$

In Stock, Qty 19

0

15

Cub Cadet 01006748-0637

Chute Deflector Bracket

$37.99

$

In Stock, Qty 7

0

16

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01008644

Finger Guard

$38.99

$

In Stock, only 2 left!

0

19

Cub Cadet 01008790-0637

Grass Catcher Roller Bracket

$39.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000109

Pillow Block

$134.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02002800

J-Hook w/ Threaded Roller

$24.99

$

In Stock, only 4 left!

0

22

Cub Cadet 02005195-0637

Chute Baffle

$48.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02005200-4021

Right Hand Front Adjustment Skirt

$

$

Not available

24

Cub Cadet 02005201-4021

Left Hand Front Adjustment Skirt

$

$

Not available

25

Cub Cadet 02005694-0637

Baffle, 60" Adjustment

$59.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$36.99

$

In Stock, Qty 20+

0

27

Cub Cadet 680-00117-0637

60" Deck Assembly

$

$

Not available

28

Cub Cadet 703-06871-4021

Deck Belt Cover

$

$

Not available

29

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 711-05159

Ball Wheel Mounting Shaft

$35.99

$

In Stock, Qty 7

0

31

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 10

0

33

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 921-04041

Water Nozzle Adaptor

$24.99

$

In Stock, Qty 20+

0

35

Cub Cadet 728-04033

Pop Rivet, 3/16

$3.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-3005

Front Roller

$30.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 11

0

38

Cub Cadet 737-04003D

Deck Water Nozzle

$24.99

$

In Stock, Qty 11

0
