SAC 55140 BV (85637) - Snapper Chipper Shredder, 5hp Hopper & Engine Group Parts Diagram

Chipper Shredder, 5hp

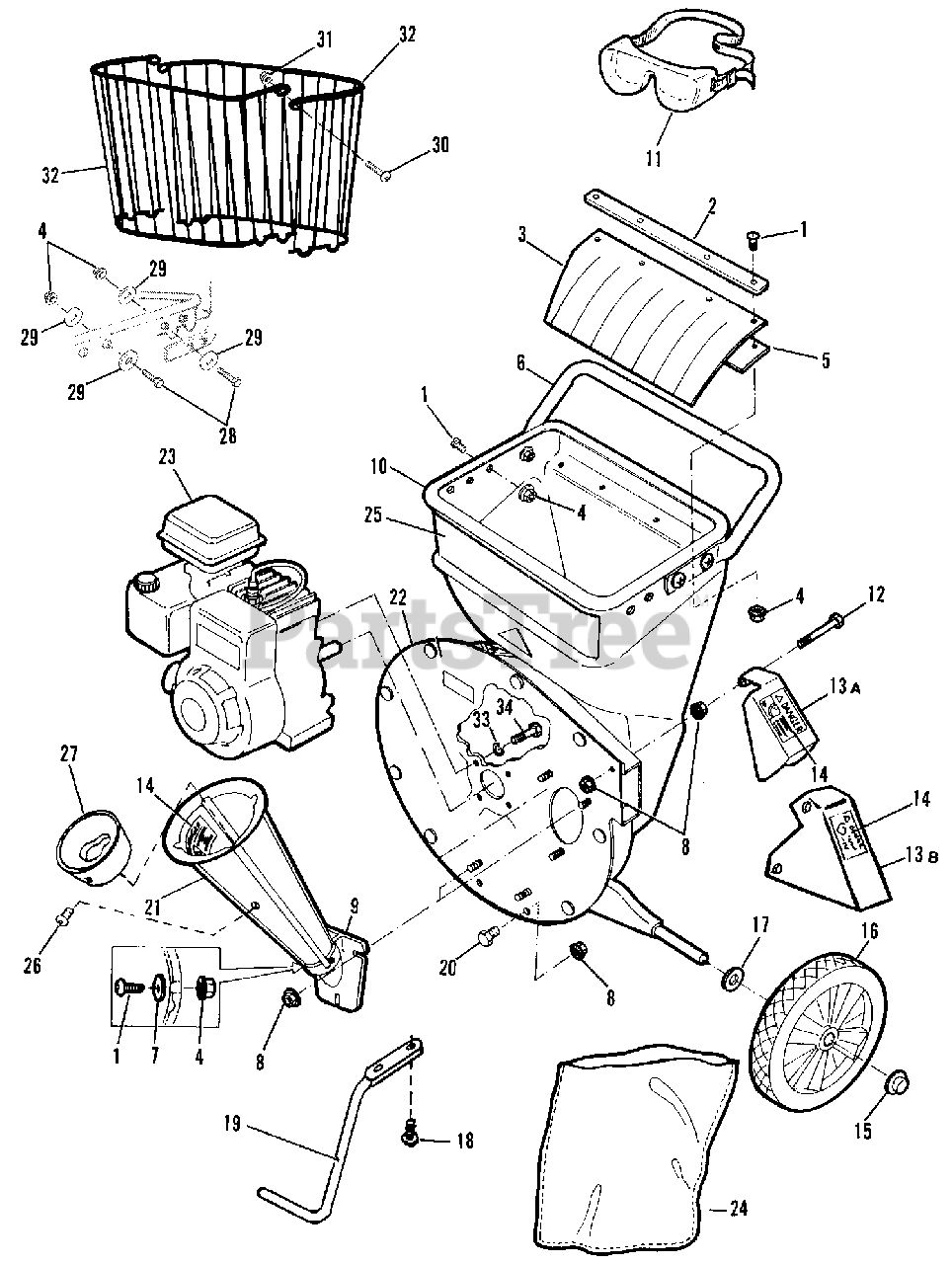

Hopper & Engine Group Parts Diagram

  • Title

1

Snapper 1960507

SCREW, Hex, Button Hd., 1/4-20 x 3/4 (Qty.10 used on European models)
(Superseded to 1960507SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 1098100

RETAINING STRIP, Hopper Guard
(Superseded to 1098100SM)

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 1095100

GUARD, Hopper
(Superseded to 1095100SM)

$42.99

$

Usually ships in 2-12 days

0

4

Snapper 1930642

NUT, Flange, 2-Way Lock, 1/4-20 (Qty.10 used on European models)
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

5

Snapper 1709603

SUPPORT, Hopper Guard
(Superseded to 1709603SM)

$55.99

$

Usually ships in 2-12 days

0

6

Snapper 3621100

HANDLE
(Superseded to 1729181SM)

$46.99

$

Usually ships in 2-12 days

0

7

Snapper 1921319

WASHER, Plain, 17/64 x 518 x 3164
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

8

Snapper 1931277

NUT, Whiz, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1714939

CASTING, Chipper Cone, 3"
(Superseded to 1753576YP)

$

$

Not available

10

Snapper 1713521

HOPPER, Red
(Superseded to 1713521SM)

Note: Was 1709469

$364.99

$

Usually ships in 2-12 days

0

11

Snapper 2005612

SAFETY GOGGLES
(Superseded to 1729013SM)

$

$

Not available

12

Snapper 1926106

CAPSCREW, Hex, 5/16-18 x 3-1/4, Gr.5
(Superseded to 1926106SM)

$3.99

$

Usually ships in 2-12 days

0

13A

Snapper 3685100

DEFLECTOR
(Superseded to 1729194SM)

$

$

Not available

13B

Snapper 1709556

DEFLECTOR, Fi x ed (European model only)
(Superseded to 1709556SM)

$

$

Not available

14

Snapper 5001612

DECAL, Danger
(Superseded to 1729207SM)

$17.99

$

Usually ships in 2-12 days

0

15

Snapper 1960519

PUSH NUT, 1/2
(Superseded to 703179)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 1714250

WHEEL & TIRE ASSY., 1-3/4 x 12 (5/14 Only)
(Superseded to 1714250SM)

Note: Was 3612100

$43.99

$

Usually ships in 2-12 days

0

16

Snapper 1713258

WHEEL & TIRE ASSY., 2-1/4 x 12 (8/14 Only)
(Superseded to 1714250SM)

$43.99

$

Usually ships in 2-12 days

0

17

Snapper 7091587

WASHER, Plain, 17/32Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 704123)

Note: Was 1924361

$4.49

$

In Stock, Qty 15

0

18

Snapper 1928635

SCREW, Taptite, 3/8 16 x 1-1/4
(Superseded to 1928635SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 1713099

ROD LEG
(Superseded to 1713099SM)

$57.99

$

Usually ships in 2-12 days

0

20

Snapper 7091138

CAPSCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

Note: Was 1925205

$4.49

$

In Stock, only 2 left!

0

21

Snapper 1709468

CONE, Chipper, Red
(Superseded to 1753576YP)

$

$

Not available

22

Snapper 1713281

ENGINE PLATE ASSY.
(Superseded to 1714085SM)

$159.99

$

Usually ships in 2-12 days

0

23

ENGINE, 5 HP, Briggs & Stratton ENGINE, 8 HP, Briggs & Strat

$

$

Not available

24

Snapper 1709403

COLLECTION BAG, 24" x 36"
(Superseded to 1709403SM)

$81.99

$

Usually ships in 2-12 days

0

25

Snapper 7071916

DECAL, Snapper
(Superseded to 1750913YP)

Note: Was 7071916

$12.99

$

In Stock, only 1 left!

0

26

Snapper 1926025

SCREW, Round. Hd., Phillips, 1/4-20 x 1/2 (European model only)
(Superseded to 1926025SM)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 1709729

INSERT, Cone (European model only)
(Superseded to 1709729SM)

$64.99

$

Usually ships in 2-12 days

0

28

Snapper 1921960

CAPSCREW, Hex, 1/4-20 x 1, Gr. 5 (European model only)
(Superseded to 1921960SM)

$3.49

$

In Stock, only 2 left!

0

29

Snapper 1960151

WASHER, Plain, 1/4 x 1-1/4 x 5/64 (European model only)
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 1918249

SCREW, Truss Hd., 5/16-18 x 3/4 (European model only)
(Superseded to 1918249SM)

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 1927557

NUT, Flange, Whiz Lock, 5/16-18 (European model only)
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

32

Snapper 1709561

HOPPER HALF, Upper (European model only)
(Superseded to 1709561SM)

$72.99

$

Usually ships in 2-12 days

0

33

Snapper 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7091608

CAPSCREW, Hex Hd., 5/16-24 x 3/4
(Superseded to 7091608YP)

Note: Was 1921515

$3.49

$

Usually ships in 2-12 days

0
