SAC 55140 BV (85637) - Snapper Chipper Shredder, 5hp Housing & Rotor Group Parts Diagram

Chipper Shredder, 5hp

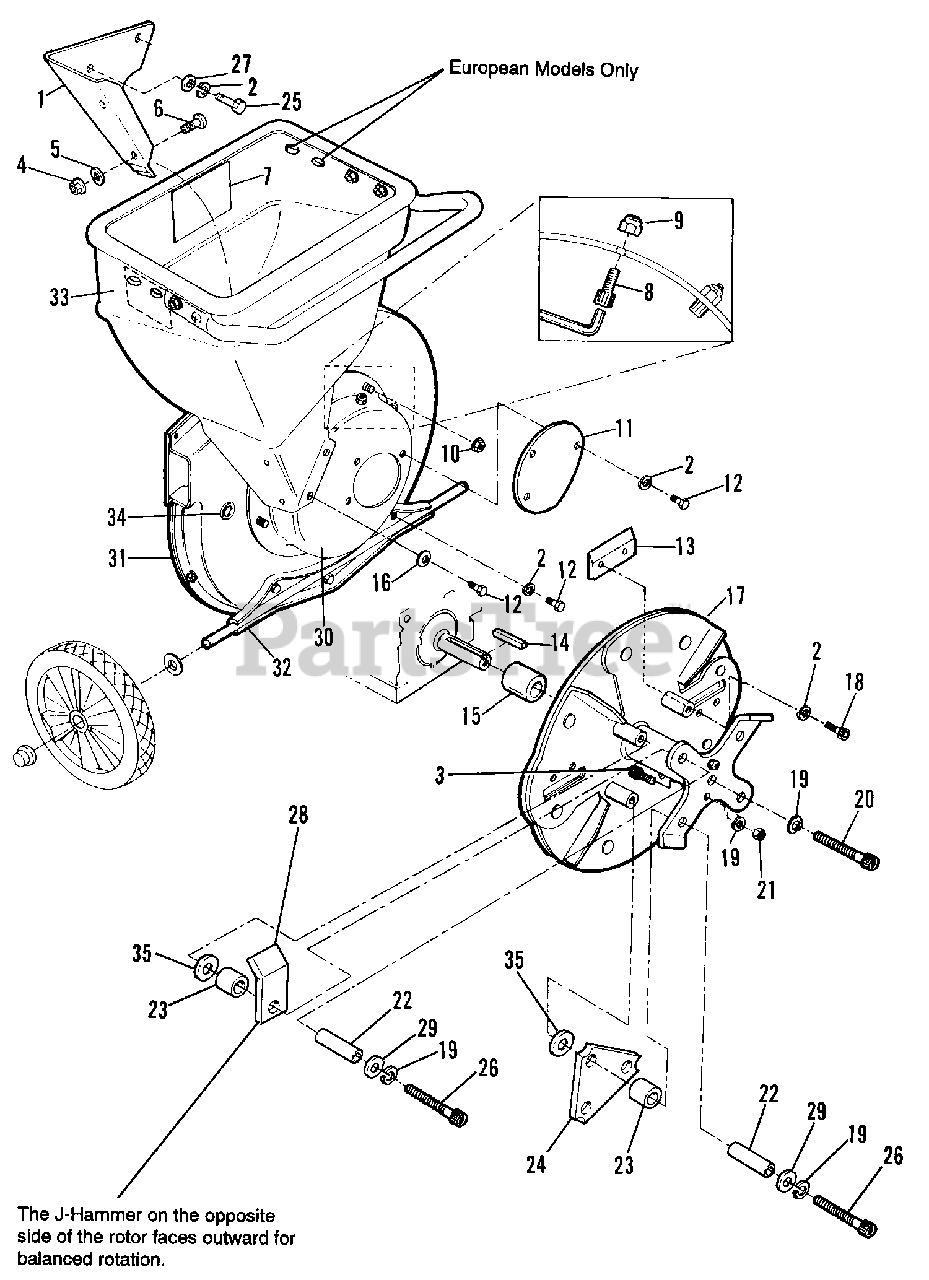

Housing & Rotor Group Parts Diagram

  • Title

1

Snapper 3525100

HOPPER LINER
(Superseded to 1729176SM)

$73.99

$

Usually ships in 2-12 days

0

2

Snapper 1917356

* Lockwasher, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 6518100

CAPSCREW, Socket Hd., 3/8-16 x 5/8
(Superseded to 1729236SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 1930647

NUT, 2-way Lock, 1/4-20
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 1921319

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

6

Snapper 1960472

CAPSCREW, Phillips Hd., 1/4-20 x 5/8
(Superseded to 1960472SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5004100

DECAL, Caution
(Superseded to 1729208SM)

$

$

Not available

8

Snapper 6005100

CAPSCREW, Socket Hd., 5/16-18 x 1/2
(Superseded to 1729214SM)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 12

0

10

Snapper 1931277

NUT, Flange, Hex, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 3520100

COVER, Rotor Housing
(Superseded to 1729174SM)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 7090534

CAPSCREW, Hex Hd., 5/16-18 x 1/2
(Superseded to 704317)

Note: Was 1920787

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 3315612

CHIPPER KNIFE
(Superseded to 1729148SM)

$136.99

$

In Stock, only 1 left!

0

14

Snapper 2905100

KEY, 1/4 Sq. x 1-7/8
(Superseded to 2805100SM)

$5.49

$

In Stock, only 1 left!

0

15

Snapper 3299100

SPACER, Rotor (5/14 Only)
(Superseded to 1729132SM)

$28.99

$

In Stock, only 1 left!

0

15

Snapper 1713206

SPACER, Rotor (8/14 Only)
(Superseded to 1713206SM)

$7.49

$

Usually ships in 2-12 days

0

16

Snapper 1919326

WASHER, Flat, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

17

Snapper 1709617

* ROTOR, 1" Hub
(Superseded to 1714177SM)

$389.99

$

Usually ships in 2-12 days

0

18

Snapper 6005612

CAPSCREW, Socket Hd., 5/16-24 x 5/8
(Superseded to 1729215SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 3031008

* LOCKWASHER, Split, 3/8
(Superseded to 703454)

Note: Was 1916965

$3.49

$

In Stock, Qty 9

0

20

Snapper 6516100

CAPSCREW, Socket Hd., 3/8-24 x 2
(Superseded to 1729235SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 3031009

NUT, Hex, 3/8-16
(Superseded to 7091302SM)

Note: Was 1916950

$4.49

$

In Stock, Qty 5

0

22

Snapper 1709614

* SPACER, Tube
(Superseded to 1709614SM)

$17.99

$

Usually ships in 2-12 days

0

23

Snapper 1709616

* SPACER, 3/4" O.D., 3/4" Long (5/14 Only)
(Superseded to 1709616SM)

$13.99

$

Usually ships in 2-12 days

0

23

Snapper 1713207

* SPACER, 1"0.D., 33/64"Long (8/14 0nly)
(Superseded to 1713207SM)

$20.99

$

Usually ships in 2-12 days

0

24

Snapper 3307612

HAMMER, Triangular
(Superseded to 1729138SM)

$48.99

$

In Stock, only 3 left!

0

25

Snapper 1921332

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

26

Snapper 1960508

* CAPSCREW, Hex, Socket Hd., w/Patch, 3/8 16 x 2, Gr. 8
(Superseded to 1960508SM)

$18.99

$

Usually ships in 2-12 days

0

27

Snapper 7091098

WASHER, Flat, 5/16
(Superseded to 703302)

Note: Was 1924874

$4.49

$

In Stock, Qty 20+

0

28

Snapper 3307100

J HAMMER
(Superseded to 1729137SM)

$50.99

$

In Stock, only 2 left!

0

29

Snapper 7090122

* WASHER, Flat, 7/8 O.D.
(Superseded to 703878)

Note: Was 1924940

$3.99

$

In Stock, Qty 20+

0

30

Snapper 3521100

HOUSING, Rotor
(Superseded to 1729175SM)

$153.99

$

Usually ships in 2-12 days

0

31

Snapper 3501100

HOUSING, Fan
(Superseded to 1729160SM)

$313.99

$

Usually ships in 2-12 days

0

32

Snapper 3505100

AXLE ASSEMBLY
(Superseded to 3505100YP)

$341.99

$

Usually ships in 2-12 days

0

33

Snapper 5001612

DECAL Danger
(Superseded to 1729207SM)

$17.99

$

Usually ships in 2-12 days

0

34

Snapper 6075100

Plug BUTTON
(Superseded to 1729226SM)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 1676435

WASHER, Plain, 1/2 x 1-1/4 x 3/16 (8/14 0nly)
(Superseded to 1676435SM)

$8.49

$

Usually ships in 2-12 days

0
