SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS481V (SN: 313000000 - 313999999) (2013) Main Frame Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V

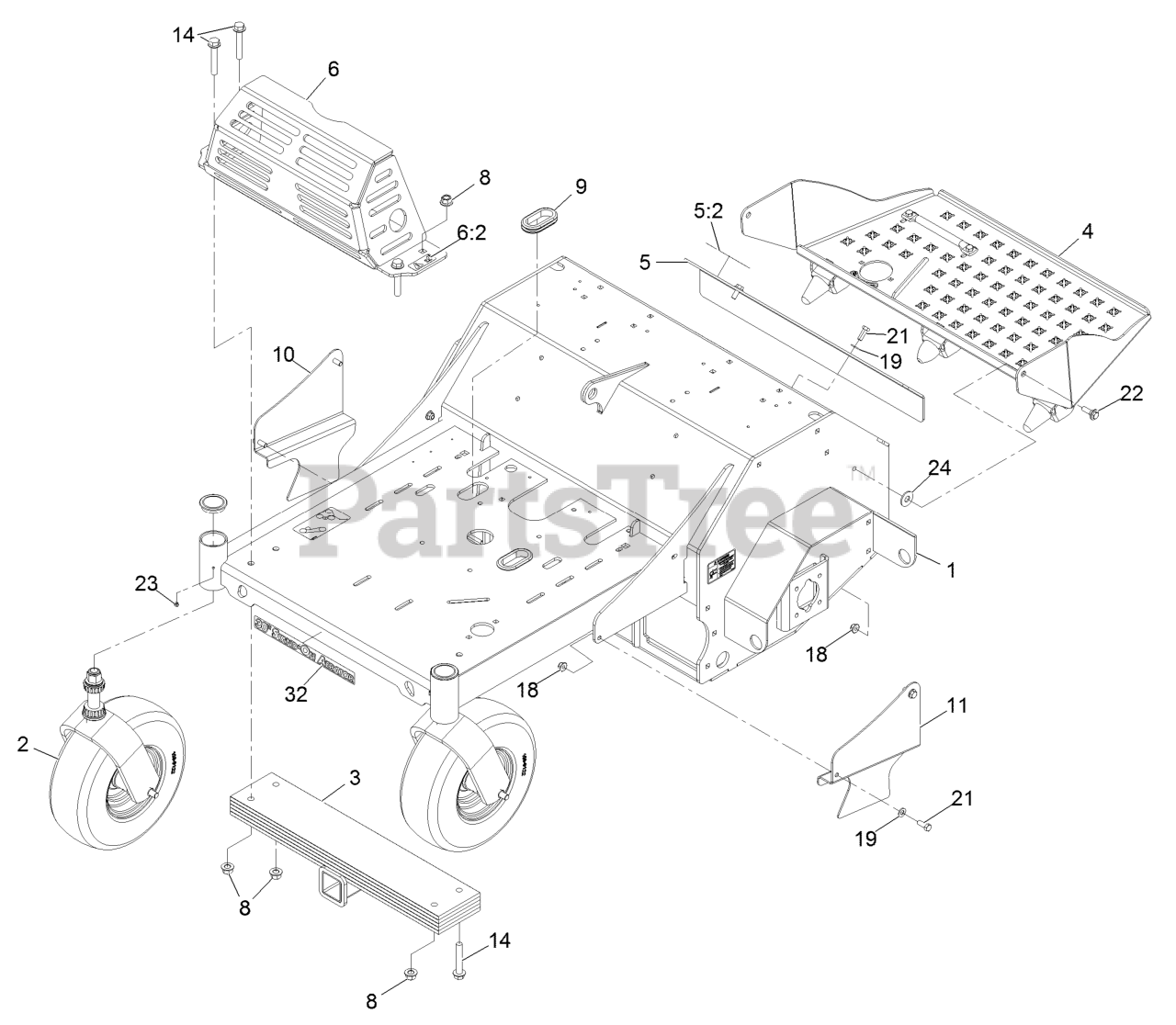

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-8134

Frame-Main Asm W/Decals

$

$

Currently unavailable

2

Front Caster Asm W/Fork

Note: Not serviced separately

$

$

Not available

3

Exmark 116-6536-01

WEIGHT

$660.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9134

PLATFORM ASM W/DECAL & RO

$609.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6939

116-7300
(Superseded to 116-7300)

$142.99

$

Usually ships in 3-6 days

0

5:2

Exmark 116-6459

DECAL-TINE GROUND OPERATI
(Superseded to 121-6163)

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8258

MUFFLER GUARD ASM

$343.99

$

Usually ships in 3-6 days

0

6:2

Exmark 115-2047

DECAL-SURFACE, HOT

$18.99

$

In Stock, only 1 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 11

0

9

Exmark 126-0015

GROMMET

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-6612-01

GUARD-CHAIN, RH

$67.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6611-01

GUARD-CHAIN, LH

$67.99

$

Usually ships in 3-6 days

0

14

Exmark 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

23

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

24

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

32

Exmark 116-6952

DECAL-STAND-ON AERATOR 30

$26.99

$

Usually ships in 3-6 days

0
