SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS481V (SN: 314000000 - 314999999) (2014) Tine Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V

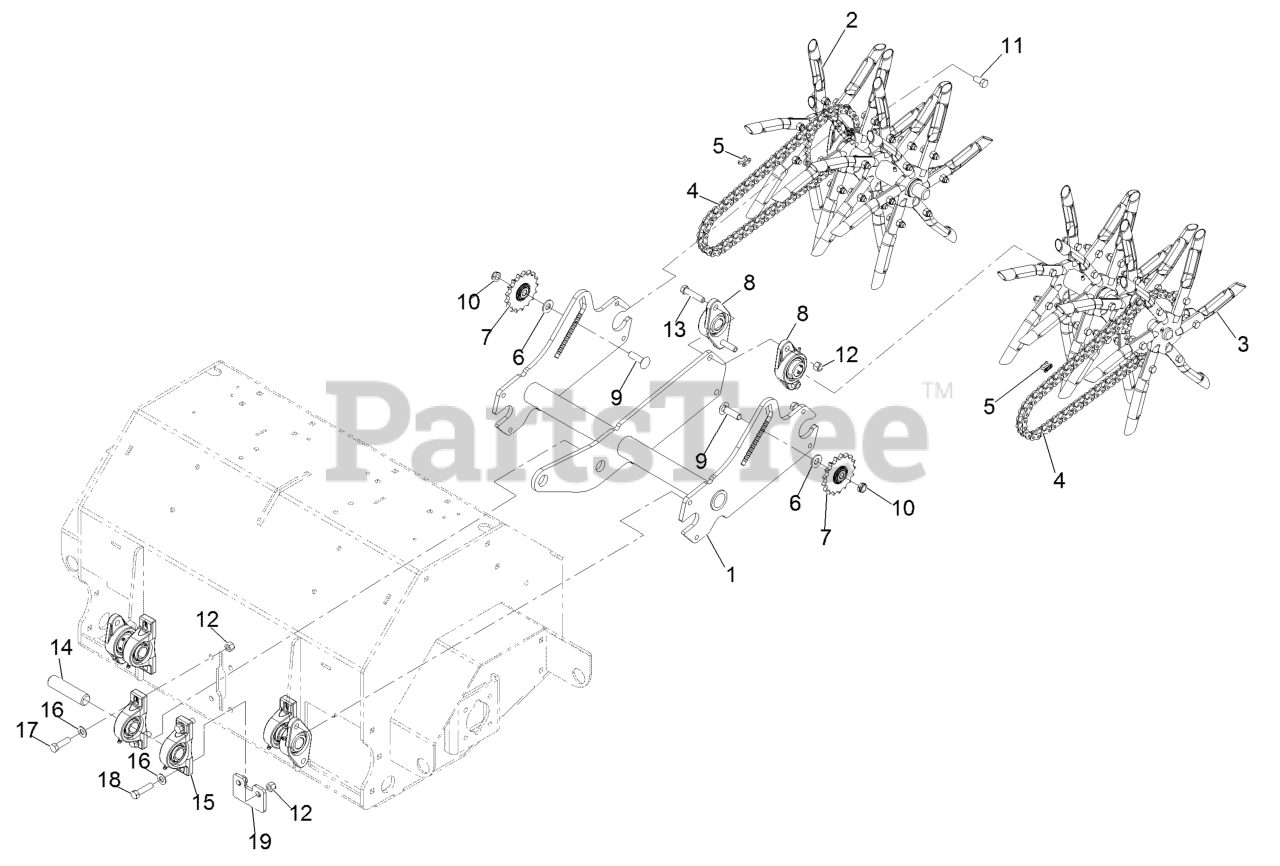

Tine Assembly Parts Diagram

  • Title
1

Exmark 116-6553-03

126-4817-03
(Superseded to 126-4817-03)

$477.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6738

135-2507
(Superseded to 135-2507)

$1008.99

$

Usually ships in 3-6 days

0

3

Exmark 116-6739

LH TINE WHEEL ASM
(Superseded to 135-2510)

$1008.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6895

126-8808
(Superseded to 126-8808)

$205.99

$

In Stock, only 4 left!

0

5

Exmark 116-6897

LINK-CONNECTING

$7.99

$

In Stock, Qty 6

0

6

Exmark 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

7

Exmark 116-6719

126-9108
(Superseded to 126-9108)

$103.99

$

In Stock, Qty 12

0

8

Exmark 116-6777

BEARING-FLANGE, 2 BOLT

$44.99

$

In Stock, only 4 left!

0

9

Exmark 3233-14

SCREW-CARR

$16.99

$

In Stock, Qty 17

0

10

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Exmark 116-7109

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, only 2 left!

0

12

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

14

$20.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6756

BEARING-PILLOW BLOCK

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$52.99

$

In Stock, only 3 left!

0

16

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

17

Exmark 324-6

1-800811
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

18

Exmark 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 116-7327-01

PLATE-DOWNSTOP

$9.99

$

Usually ships in 3-6 days

0
