SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS730V (SN: 312000000 - 312999999) (2012) Auxiliary Hydraulic Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS730V

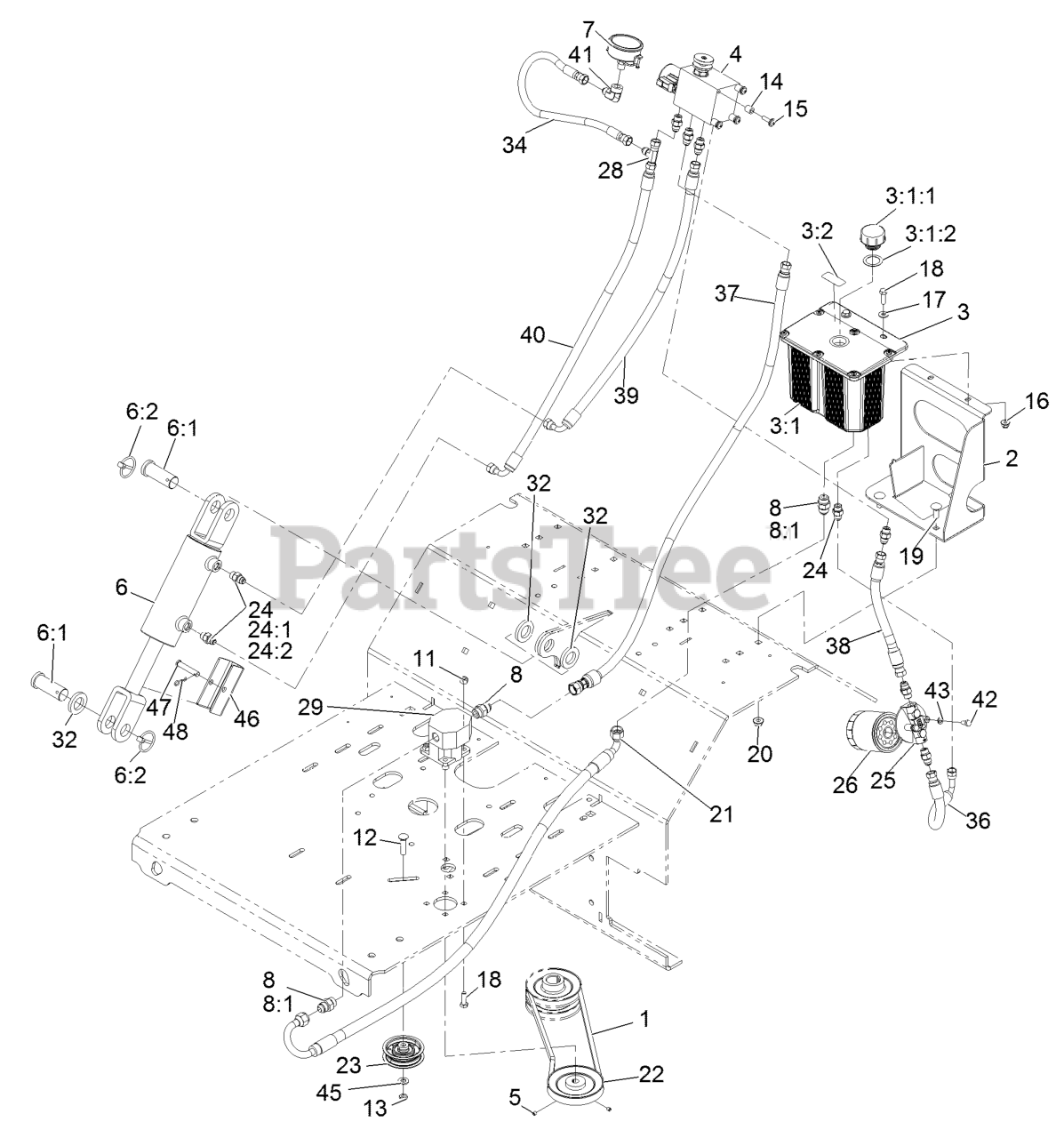

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-6894

BELT-A

$25.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6618-03

BRACKET-TANK, HYDRAULIC

$123.99

$

Usually ships in 3-6 days

0

3

Exmark 116-7556

ASM-RESERVOIR W/DECAL

$342.99

$

Usually ships in 3-6 days

0

3:1

Tank-Hydraulic

Note: Not serviced separately

$

$

Not available

3:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, Qty 20+

0

3:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

Usually ships in 3-6 days

0

3:2

Exmark 116-6990

DECAL-HYDRO OIL AW-32

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6752

126-2726
(Superseded to 126-2726)

$1049.99

$

Usually ships in 3-6 days

0

5

Exmark 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

6

Exmark 116-6969

HYD CYLINDER ASM

$883.99

$

Usually ships in 3-6 days

0

6:1

Exmark 116-7290

PIN-CLEVIS

$44.99

$

Usually ships in 3-6 days

0

6:2

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 18

0

7

Exmark 116-6753

GAUGE-PRESSURE

$103.99

$

Usually ships in 3-6 days

0

8

Exmark 353-388

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

8:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

11

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 22-7810

SPACER

$18.99

$

Usually ships in 3-6 days

0

15

Exmark 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 116-6993

HYD HOSE ASM

$139.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6667

PULLEY

$94.99

$

In Stock, only 1 left!

0

23

Exmark 116-6760

PULLEY-IDLER, FLAT

$42.99

$

In Stock, only 4 left!

0

24

Exmark 103-2156

FITTING-STRAIGHT

$41.99

$

In Stock, only 4 left!

0

24:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

24:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 4 left!

0

26

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 20+

0

28

Exmark 353-877

FITTING-HYD, TEE

$23.99

$

Usually ships in 3-6 days

0

29

Exmark 116-6751

PUMP-GEAR

$1081.99

$

Usually ships in 3-6 days

0

32

Exmark 116-6781

SPACER

$14.99

$

Usually ships in 3-6 days

0

34

Exmark 116-6679

HOSE ASM-HYD HP

$

$

Not available

36

Exmark 116-6675

HOSE-HYDRAULIC, LP

$34.99

$

Usually ships in 3-6 days

0

37

Exmark 116-6676

HOSE ASM-HYD HP

$71.99

$

Usually ships in 3-6 days

0

38

Exmark 116-6680

HOSE ASM-HYD

$

$

Not available

39

Exmark 116-6677

HOSE-HYDRAULIC

$63.99

$

Usually ships in 3-6 days

0

40

Exmark 116-6678

HOSE-HYDRAULIC, HP

$66.99

$

Usually ships in 3-6 days

0

41

Exmark 116-6686

FITTING-ELBOW, 90

$

$

Not available

42

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

43

Exmark 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

45

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 116-7307-01

STOP-CYLINDER

$34.99

$

Usually ships in 3-6 days

0

47

Exmark 283-82

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
