SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS730V (SN: 312000000 - 312999999) (2012) Electrical Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS730V

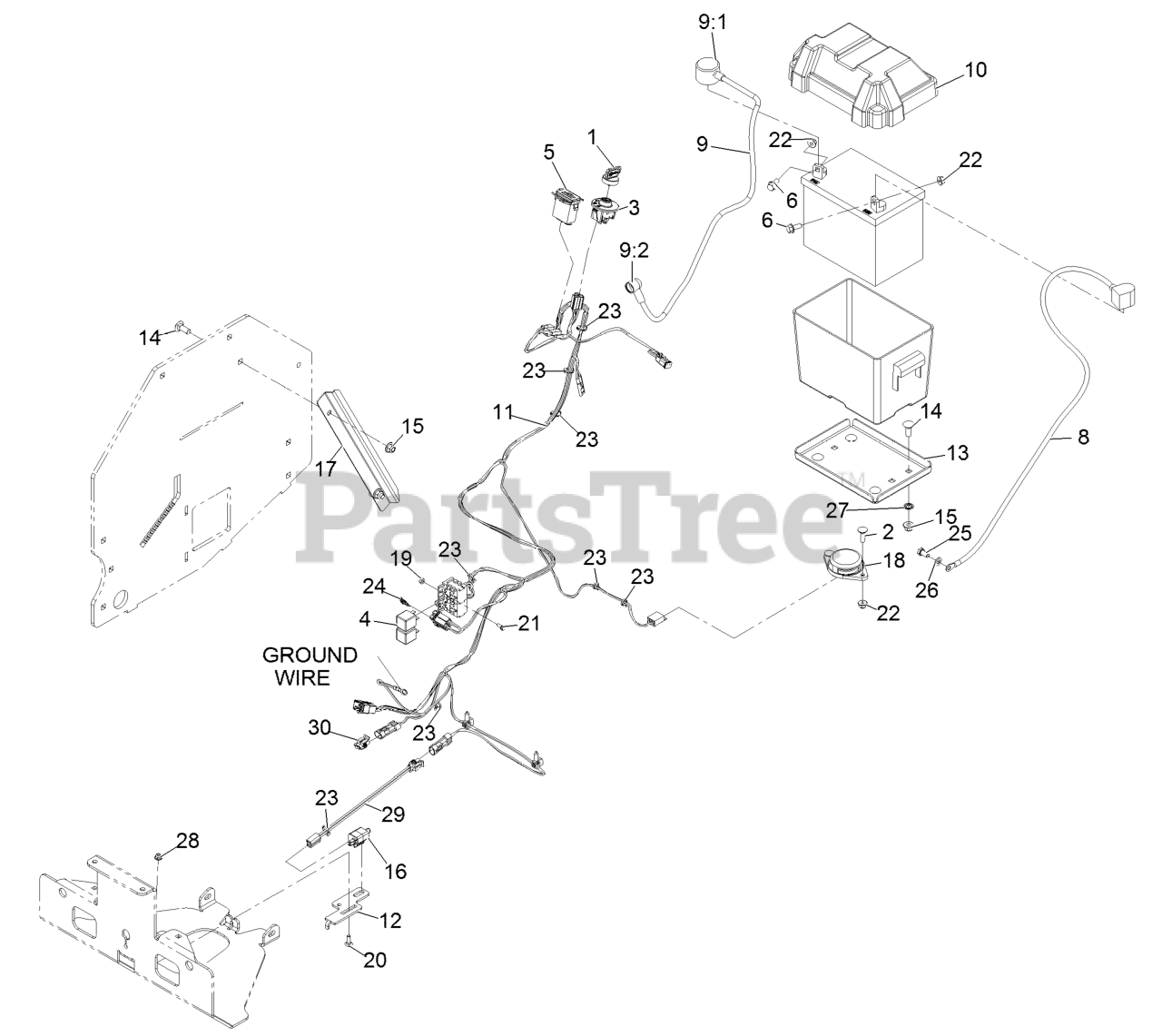

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

1

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 8

0

3

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

4

Exmark 1-643275

RELAY

$22.99

$

In Stock, Qty 20+

0

5

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

6

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

8

Exmark 117-6422

CABLE-BATTERY, BLACK

$32.99

$

Usually ships in 3-6 days

0

9

Exmark 109-7630

POSITIVE BATTERY CABLE AS

$42.99

$

In Stock, only 2 left!

0

9:1

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

9:2

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

10

Exmark 116-6673

BATTERY BOX ASM

$42.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6890

HARNESS ASM

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$372.99

$

Usually ships in 3-6 days

0

12

Exmark 116-7589

MOUNT-SWITCH

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 116-6609-03

TRAY-BATTERY

$47.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

17

Exmark 116-6768-03

GUARD-HARNESS

$

$

Not available

18

Exmark 92-6282

SWITCH-SEAT

$33.99

$

In Stock, only 3 left!

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

21

Exmark 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, only 4 left!

0

25

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

26

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 109-9190

NUT-PUSH

$

$

Not available

28

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Exmark 116-7502

JUMPER-SWITCH

$50.99

$

Usually ships in 3-6 days

0

30

Exmark 116-7505

PLUG-SWITCH, NEUTRAL

$

$

Not available
