SB-1010 (319-850-190) - White Outdoor Snow Boss Snow Thrower (1989) Wheel Chain Drive Assembly Parts Diagram

Snow Boss Snow Thrower

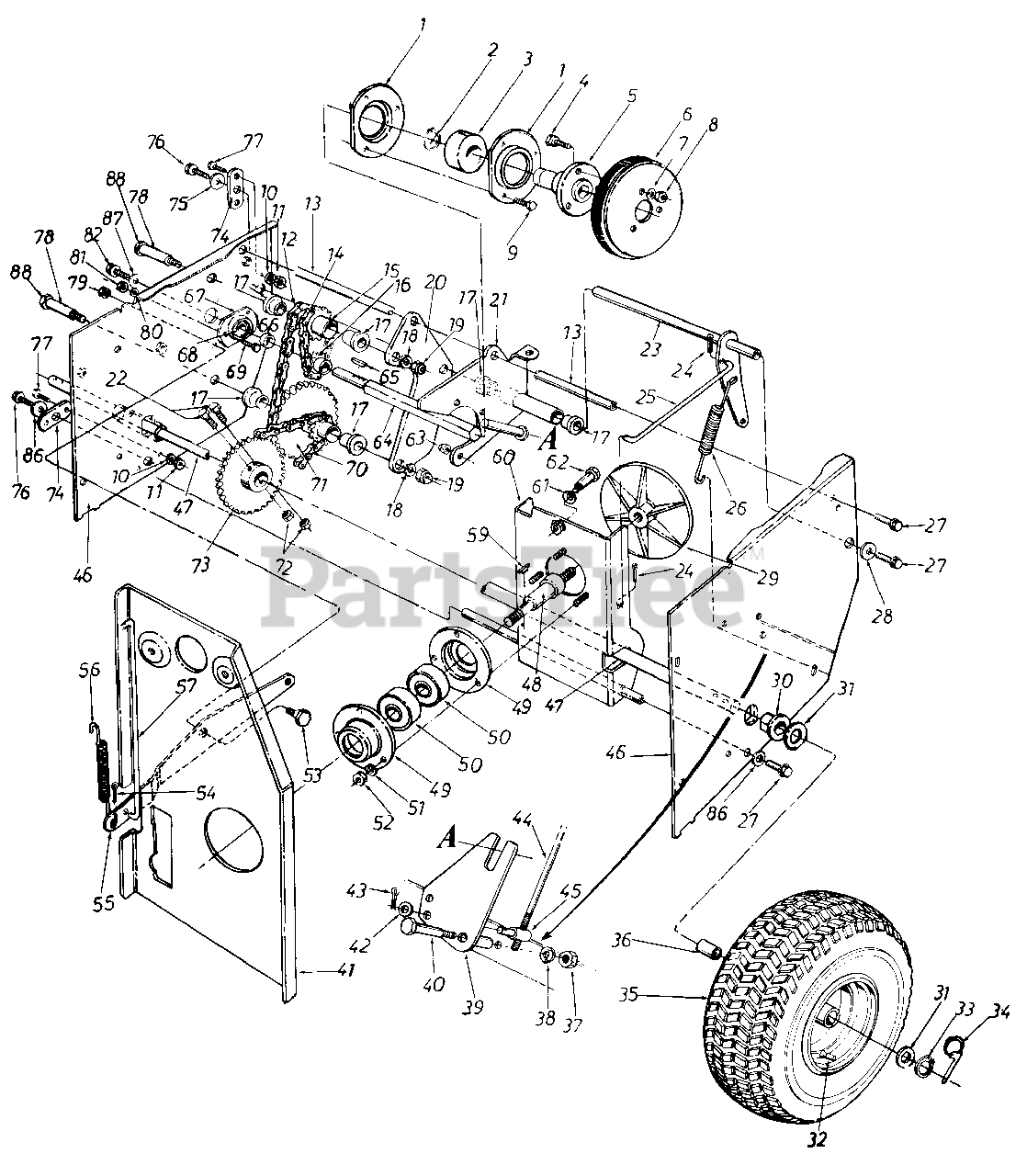

Wheel Chain Drive Assembly Parts Diagram

  • Title

1

White Outdoor 05794

Bearing Housing

$

$

Not available

2

White Outdoor 716-0102

Snap Ring-1.0" Dia.

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 741-0301

Ball Brg. .25MM x 52MM x 15MM Thk.
(Superseded to 941-0301)

$49.99

$

In Stock, Qty 5

0

4

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg. *
(Superseded to 910-0198)

$

$

Not available

5

White Outdoor 748-0281

Friction Wheel Adapter

$

$

Not available

6

White Outdoor 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)

$33.99

$

In Stock, Qty 17

0

7

White Outdoor 736-0119

L-Wash. 5116" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.*
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

10

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

12

White Outdoor 713-0270

#41 Chain-1/2" Pitch x 43 Links

$

$

Not available

White Outdoor 713-0723

Master Link
(Superseded to 913-0723)

Note: (Service Only)

$

$

Not available

13

White Outdoor 738-0278

Sliding Support Axle

$

$

Not available

14

White Outdoor 713-0199

#41 Chain-1/2" Pitch x 19 Links

$

$

Not available

White Outdoor 713-0723

Master Link
(Superseded to 913-0723)

Note: (Service Only)

$

$

Not available

15

White Outdoor 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

16

White Outdoor 748-0204

8 Teeth Sprocket

$

$

Not available

17

White Outdoor 748-0184

Flange Bearing .63" I.D.

$7.49

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

19

White Outdoor 712-0116

Hex L-Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

20

White Outdoor 05520

Chain Support Brkt.

Variations

White Outdoor 05520-0637

No Longer Available BRACKET-CHAIN SUP - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 784-5137

Sliding Brkt. Ass'y.

$

$

Not available

22

White Outdoor 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

23

05500

Drive Clutch Brkt. Ass'y.

$

$

Not available

24

White Outdoor 714-0104

Inter. Cot. Pin 5/16" Dia.*

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

$

$

Not available

26

White Outdoor 732-0121

Extension Spring 4.31" Lg.
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

27

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

28

White Outdoor 736-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.49

$

In Stock, only 1 left!

0

29

White Outdoor 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

30

White Outdoor 741-0192

Flange Brg. w/Flats
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

31

White Outdoor 736-0163

Thrust Washer 1.03" I.D.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 716-0102

Snap Ring 1.0" Shaft

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 714-0151

Klick Pin

$

$

Not available

35

White Outdoor 734-1531

Wheel Ass'y. Comp. 16 x 4.8

$

$

Not available

White Outdoor 734-1530

Tire Only

Variations

White Outdoor 734-1530-0901

SNOW HOG TIRE 4.80 - Carlisle (0901)

$156.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$156.99

$

Usually ships in 3-6 days

0

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1532

Rim Only

$

$

Not available

36

White Outdoor 741-0246

Bearing 1.0" I.D.

$13.99

$

In Stock, only 4 left!

0

37

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

39

White Outdoor 784-5133

Shifting Linkage Brkt. Ass'y.

Variations

White Outdoor 784-5133-0637

No Longer Available BRACKET ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 738-0129

Shld. Bolt .498" Dia. x 2.005" Lg.

$10.99

$

In Stock, only 1 left!

0

41

White Outdoor 05491

Engine Brkt. Ass'y.

$

$

Not available

42

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.49

$

In Stock, only 1 left!

0

43

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

44

White Outdoor 747-0356

Shifting Rod

$

$

Not available

45

White Outdoor 711-0628A

Adjustment Ferrule

$

$

Not available

46

784-5129B

Frame Ass'y.

$

$

Not available

47

738-0548

Free Wheeling Axle

$

$

Not available

48

White Outdoor 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

49

White Outdoor 08253

Bearing Housing
(Superseded to 08253B)

$17.99

$

In Stock, only 4 left!

0

50

White Outdoor 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

51

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

53

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$9.99

$

In Stock, only 1 left!

0

54

White Outdoor 714-0104

Inter. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 05518

Auger Clutch Brkt.

$

$

Not available

56

White Outdoor 732-0303

Extension Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

57

747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Not available

59

White Outdoor 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

60

White Outdoor 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

White Outdoor 05497-0637

No Longer Available BRACKET ASSY-DR PL - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 736-0105

Bell-Wash. .44" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 738-0144

Shld. Bolt
(Superseded to 938-0144)

$

$

Not available

63

White Outdoor 712-0896

Hex Ins. Jam Nut 1/4-28 Thd.

$4.49

$

In Stock, Qty 6

0

64

White Outdoor 738-0280

Hex Shaft

$

$

Not available

65

White Outdoor 714-0129

#9 Hi-Pro Key 3/32" x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

66

White Outdoor 750-0277

Spacer .51" I.D. x .69" O.D.

$

$

Not available

67

White Outdoor 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

68

White Outdoor 741-0133

Ball Bearing

$33.99

$

Usually ships in 3-6 days

0

69

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 713-0269

#420 Chain 50n Pitch x 37 Links
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

71

White Outdoor 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$142.99

$

In Stock, only 1 left!

0

72

White Outdoor 712-0273

Hex L-Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

73

713-0320

28 Teeth Sprocket Hub Ass'y.

$

$

Not available

74

White Outdoor 05523

Pivot Axle Brkt.

$

$

Not available

75

White Outdoor 736-0264

Fl-Wash. .345" I.D. x .75"

$6.49

$

In Stock, only 1 left!

0

76

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

77

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 750-0275

Sprocket Hub Tubing 1.88"

$

$

Not available

79

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

80

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

81

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

82

White Outdoor 710-0538

Hex L-Bolt 5/16-18 X .62"

$4.49

$

In Stock, Qty 9

0

86

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875"

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

88

White Outdoor 710-0629

Hex Bolt 3/8-24 X 2.75" Lg.

$

$

Not available
