SB-1150 W (31AD5P3H190) - White Outdoor Snow Boss Snow Thrower (2001) Gear Assembly Parts Diagram

Snow Boss Snow Thrower

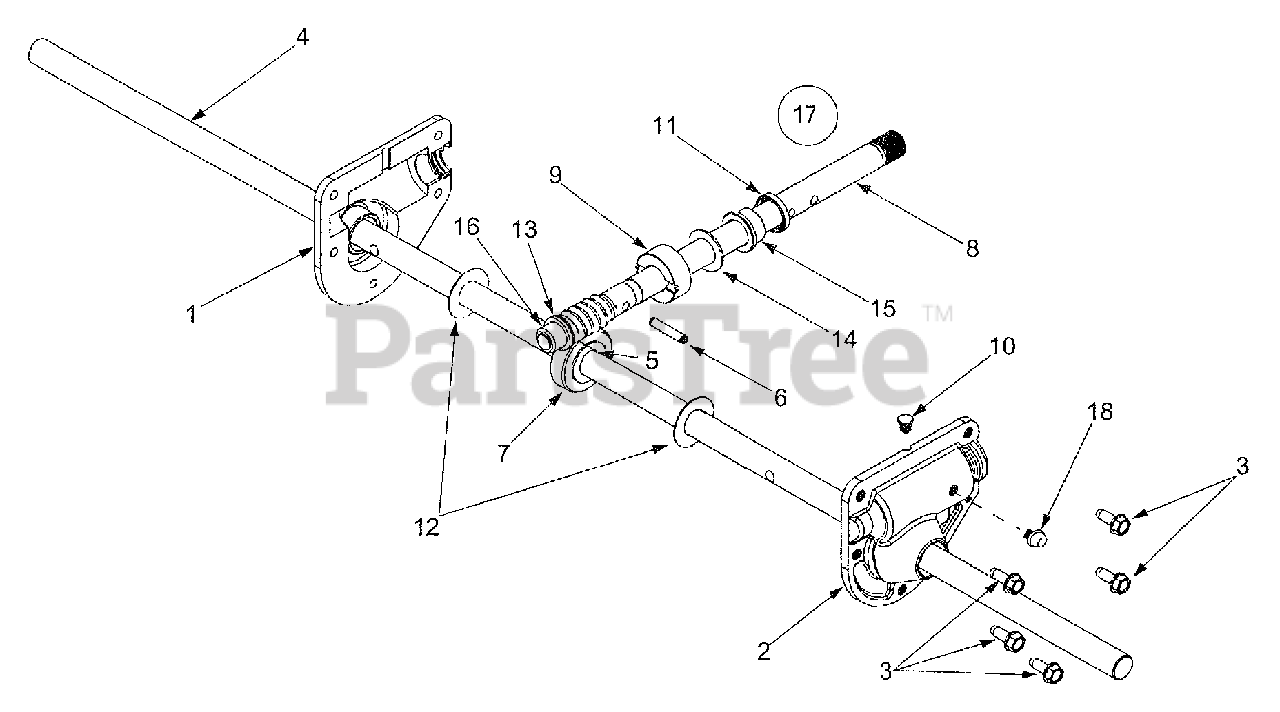

Gear Assembly Parts Diagram

  • Title

1

MTD 918-0123A

RH Housing

Note: (Incl. Ref. 17, 18)

$48.99

$

In Stock, Qty 13

0

2

MTD 918-0118

LH Housing w/Fitting

Note: (Incl. Ref. 17, 18)

$177.99

$

In Stock, only 1 left!

0

3

MTD 710-3005

Self Tapping Screw, 1/4-20 x 75

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-0909A

Spiral Axle, 26"

Note: (Model 850W)

$

$

Not available

4

MTD 711-1024A

Spiral Axle, 30"

Note: (Model 1150W)

$129.99

$

Usually ships in 3-6 days

0

5

MTD 914-0161

Hi Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 11

0

6

MTD 915-0143

Spring Spiral Pin, 25 x 1 25
(Superseded to 715-0143)

$

$

Not available

7

MTD 917-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$101.99

$

In Stock, only 1 left!

0

9

MTD 718-0186

Thrust Collar

$7.99

$

In Stock, only 2 left!

0

10

MTD 721-0325

Grease Plug

$4.49

$

Usually ships in 3-6 days

0

11

MTD 721-0327

Grease Seal

$6.49

$

In Stock, Qty 20+

0

12

MTD 936-0351

Flat Washer, .76 x 1.5 x .030
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

13

MTD 936-0369

Flat Washer, .508 x 1.0 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

14

MTD 936-0445

Flat Washer, .76 x 1.5 x .060
(Superseded to 736-0445)

$

$

Not available

15

MTD 941-0362

Flange Bearing, .75 x 1.0 x .59

$101.99

$

Usually ships in 3-6 days

0

16

MTD 941-0363

Flange Bearing, .503 ID x .75 OD

$24.99

$

In Stock, Qty 13

0

17

MTD 918-0415B

Gear Ass'y Complete, 26"

Note: (Model 850W)

$411.99

$

Usually ships in 3-6 days

0

17

MTD 918-0417B

Gear Ass'y Complete, 30"

Note: (Model 1150W)

$372.99

$

Usually ships in 3-6 days

0

18

MTD 937-3000

Grease Fitting, 3/16" Drive

$4.49

$

In Stock, Qty 20+

0
