SB-1150 W (31AE573H190) - White Outdoor Snow Boss Snow Thrower (1999) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

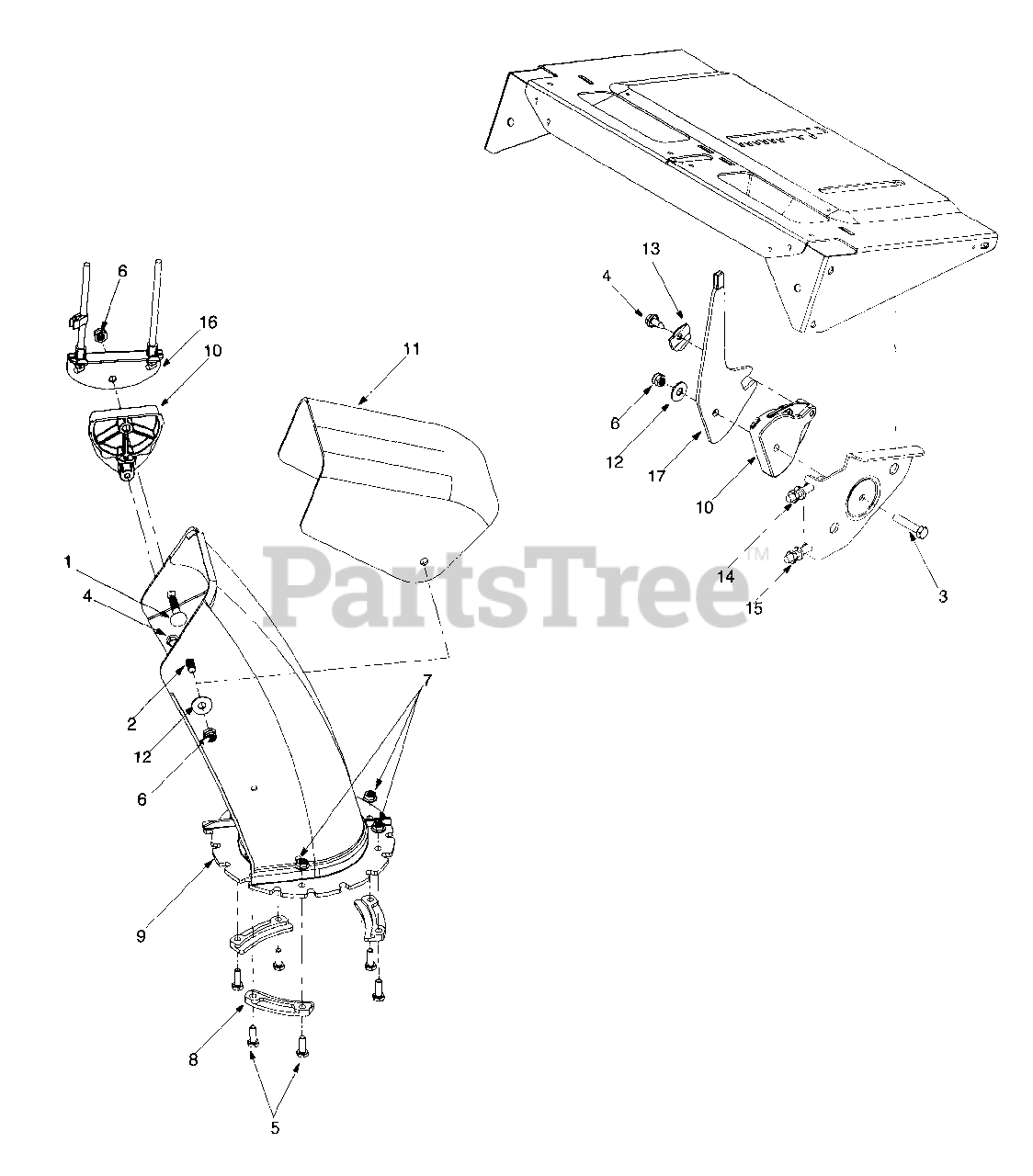

Chute Assembly Parts Diagram

  • Title

1

MTD 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

2

MTD 710-0451

Carriage Bolt: 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0805

Hex Bolt: 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

4

MTD 710-0896

Hex Washer Head AB Screw: 1/4-14 x 0.625"

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3015

Hex Bolt: 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

6

MTD 912-0429

Hex Lock Nut: 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

7

MTD 912-3027

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

8

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-1300E

Lower Chute

$54.99

$

In Stock, Qty 9

0

10

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

11

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

12

MTD 936-0159

5/16 Washer
(Superseded to 736-0159)

$

$

Not available

13

MTD 736-0506A

Special Washer

$

$

Not available

14

MTD 946-0896

Control Cable: Chute Deflector

$52.99

$

In Stock, only 1 left!

0

15

MTD 946-0901

Chute Deflector Cable w/Clip

$59.99

$

Usually ships in 3-6 days

0

16

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

17

MTD 784-5604A-0637

Chute tilt Handle

$23.99

$

Usually ships in 3-6 days

0
