SB-1150 W (31AE573H190) - White Outdoor Snow Boss Snow Thrower (1999) Handle Panel Parts Diagram

Snow Boss Snow Thrower

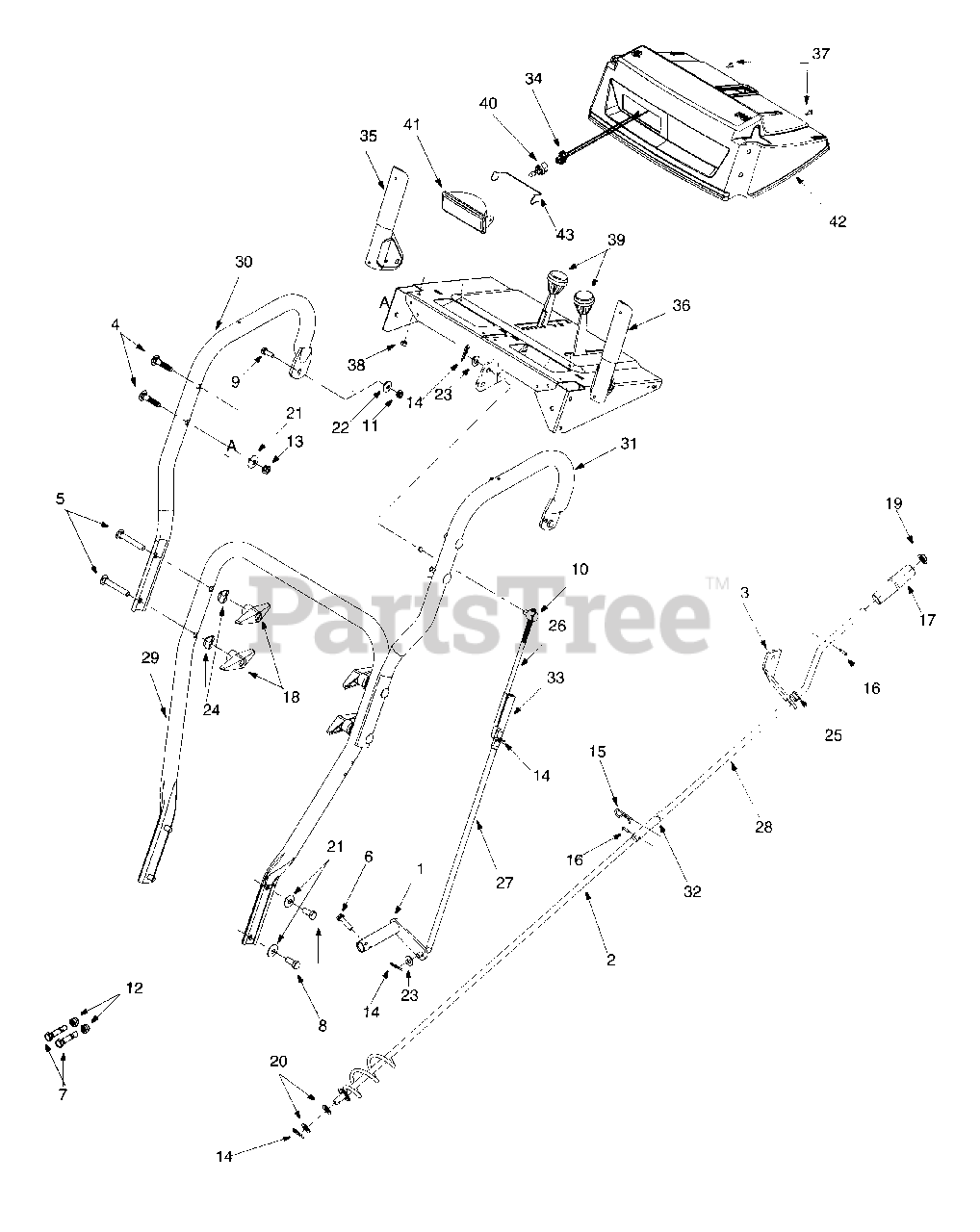

Handle Panel Parts Diagram

  • Title

1

MTD 684-0008A-0637

Shift Arm Assembly

$50.99

$

Usually ships in 3-6 days

0

2

MTD 684-0053B-0637

Chute Crank Assembly

$

$

Not available

3

MTD 705-5266-0637

Chute Crank Bracket

$14.99

$

Usually ships in 3-6 days

0

4

MTD 710-0262

Carr. Bolt 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

5

MTD 710-0572

Carr. Screw 5/16-18 x 2.25 Gr.5

$3.99

$

In Stock, only 4 left!

0

6

MTD 710-0788

Hex Washer Head TT Screw 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

7

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

8

MTD 710-3008

Hex Bolt 5/16-18 x 0.75 Gr.5

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3015

Hex Bolt 1/4-20 x 0.75 Gr.5

$3.99

$

In Stock, Qty 20+

0

10

MTD 911-0677

Ferrule

$16.99

$

In Stock, only 4 left!

0

11

MTD 912-0287

Hex Nut: 1/4-20

$4.49

$

In Stock, only 2 left!

0

12

MTD 912-0429

Hex Lock Nut
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

13

MTD 912-3010

Hex Nut: 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

15

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

16

MTD 915-0138

Roll Pin

$4.49

$

In Stock, only 1 left!

0

17

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 6

0

18

MTD 920-0284

Wing Nut
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

19

MTD 926-0100

Push Cap
(Superseded to 726-0100)

$

$

Not available

20

MTD 936-0185

Flat Washer
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

21

MTD 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 12

0

23

MTD 936-0275

Flat Washer
(Superseded to 736-0275)

$

$

Not available

24

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

25

MTD 941-0475

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

26

MTD 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

27

MTD 747-0621

Shift Rod: Lower

$

$

Not available

28

MTD 747-0737-0637

Chute Crank: Upper

$42.99

$

Usually ships in 3-6 days

0

29

MTD 749-0951A

Lower Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0951A-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

MTD 749-0951A-4033

HANDLE-LOWER SNOW - FLINT MICA (4033)

$62.99

$

Usually ships in 3-6 days

0

MTD 749-0951A-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$62.99

$

Usually ships in 3-6 days

0

30

MTD 749-0954-0637

Handle: C Style RH

$

$

Not available

31

MTD 749-0955-0637

Handle: C Style LH

$

$

Not available

32

MTD 950-0785

Spacer

$32.99

$

Usually ships in 3-6 days

0

33

MTD 950-0963

Clutch Rod Connector

$32.99

$

In Stock, only 3 left!

0

34

MTD 929-0059

Harness, Halogen Light

$93.99

$

Usually ships in 3-6 days

0

35

MTD 684-0036A

Handle Engagement Assembly: RH Black

$41.99

$

Usually ships in 3-6 days

0

36

MTD 684-0037B

Handle Engagement Assembly: LH Black

$38.99

$

In Stock, only 2 left!

0

37

MTD 710-04669

Hex washer Hd. Sp. screw

$3.49

$

In Stock, Qty 20+

0

38

MTD 712-0271

Hex Sems Nut

$4.49

$

In Stock, Qty 19

0

39

MTD 920-0232

Shift Knob

$9.99

$

In Stock, only 4 left!

0

40

MTD 925-1658

Halogen Lamp

$55.99

$

In Stock, Qty 5

0

41

MTD 925-1672

Lamp Housing

$83.99

$

Usually ships in 3-6 days

0

42

MTD 731-1545B

Handle Panel: yellow w/Tilt, Light

$

$

Not available

43

MTD 747-1136

Halogen Retainer: Handle

$10.99

$

Usually ships in 3-6 days

0
