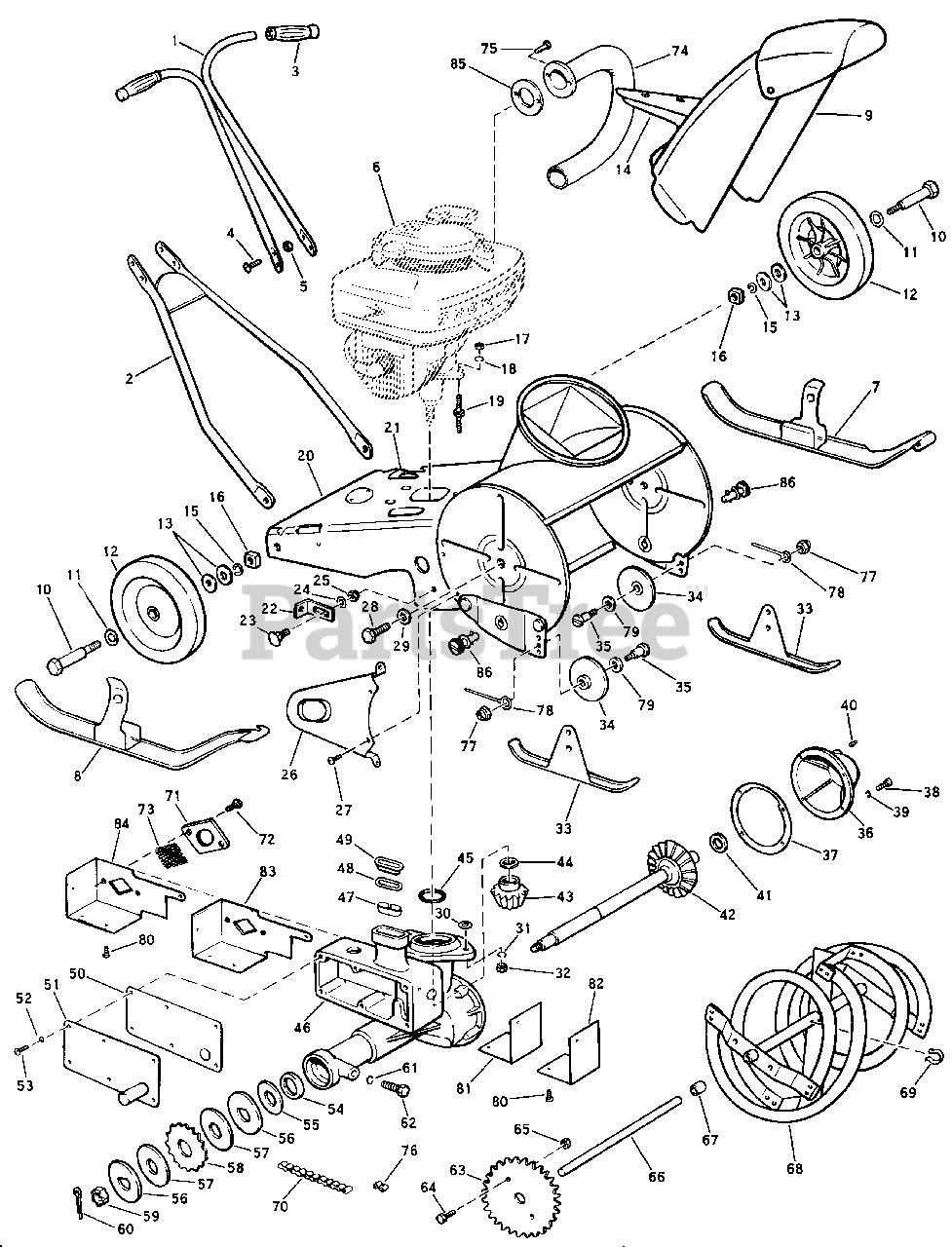

SB-12 - Lawn-Boy Snow-Boy Snow Thrower (SN: 900000001 - 999999999) (1959) MODEL SB-12 SNOW-BOY PARTS LIST Parts Diagram

Snow-Boy Snow Thrower

MODEL SB-12 SNOW-BOY PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 677354

Handle Assembly-Upper

$

$

Not available

2

Lawn-Boy 486309

Handle Assembly-Lower

$

$

Currently unavailable

3

Lawn-Boy 603025

Grip-Handle

$

$

Not available

4

Lawn-Boy 602025

Screw-Handle

$

$

Not available

5

Lawn-Boy 602201

Nut-Handle Screw

$

$

Not available

6

Lawn-Boy C-12AA

Engine Assembly

$

$

Currently unavailable

7

Lawn-Boy 486314

Ski-Left

$

$

Not available

8

Lawn-Boy 486322

Ski-Right

$

$

Not available

9

Lawn-Boy 486305

Chute Assembly

$

$

Not available

10

Lawn-Boy 602680

Shoulder Bolt-Wheel Mounting

$

$

Not available

11

Lawn-Boy 303259

Washer-Outer-Wheel

$1.99

$

In Stock, Qty 8

0

12

Lawn-Boy 677534

Wheel Assembly-Rear

$

$

Not available

13

Lawn-Boy 602627

Washer-Inner-Wheel

$

$

Not available

14

Lawn-Boy 402244

Positioning Pin

$

$

Currently unavailable

15

Lawn-Boy 120177

Lockwasher-Wheel Mounting Nut

$3.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602677

Nut-Wheel Mounting Screw

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 602696

Nut-Engine Mounting

$

$

Currently unavailable

18

Lawn-Boy 306325

Lockwasher-Engine Mounting-Nuts

$

$

Not available

19

Lawn-Boy 402288

Stud-Gearcase and Engine Mounting

$

$

Not available

20

Lawn-Boy 486307

Base and Housing Assembly

$

$

Currently unavailable

21

Lawn-Boy 602325

Latch-Handle Lock

$

$

Not available

22

Lawn-Boy 402292

Stabilizer Bracket

$

$

Not available

23

Lawn-Boy 402296

Carriage Bolt-Stabilizer Bracket

$

$

Not available

24

Lawn-Boy 306405

Washer-Stabilizer Bracket Bolt Nut

$

$

Not available

25

Lawn-Boy 402297

Locknut-Stabilizer Bracket Bolt

$

$

Currently unavailable

26

Lawn-Boy 402263

Guard-Chain

$

$

Not available

27

Lawn-Boy 303686

Screw-Chain Guard

$

$

Not available

28

Lawn-Boy 130166

Screw-Impeller Shaft to Housing

$

$

Not available

29

Lawn-Boy 306489

Lockwasher-Impeller Shaft Screw

$

$

Not available

30

Lawn-Boy 306439

Washer-Gearcase to Base Stud

$

$

Currently unavailable

31

Lawn-Boy 306325

Lockwasher-Gearcase Mounting Nut

$

$

Not available

32

Lawn-Boy 602696

Nut-Gearcase Mounting

$

$

Currently unavailable

33

Lawn-Boy 402550

Ski-Front

$

$

Not available

34

Lawn-Boy 486434

Wheel Assembly-Front

$

$

Not available

35

Lawn-Boy 402534

Stud-Front Wheel

$

$

Not available

36

Lawn-Boy 402294

Cover-Gearcase

$

$

Currently unavailable

37

Lawn-Boy 402287

Gasket-Gearcase Cover

$

$

Not available

38

Lawn-Boy 133299

Screw-Gearcase Cover

$

$

Currently unavailable

39

Lawn-Boy 120314

Lockwasher-Gearcase Cover Screw

$

$

Not available

40

Lawn-Boy 51-13

Plug-Oil Fill-Gearcase

$

$

Currently unavailable

41

Lawn-Boy 402269

Thrust Washer-Driveshaft Gear

$

$

Currently unavailable

42

Lawn-Boy 486310

Driveshaft and Gear Assembly

$

$

Currently unavailable

43

Lawn-Boy 402266

Pinion gear

$

$

Not available

44

Lawn-Boy 402268

Thrust Washer-Pinion Gear

$

$

Currently unavailable

45

Lawn-Boy 302493

"O" Ring-Gearcase to Crankcase

$

$

Currently unavailable

46

Lawn-Boy 402253

Gearcase and Muffler

$

$

Currently unavailable

47

Lawn-Boy 402279

Liner-Muffler to Cylinder

$

$

Currently unavailable

48

Lawn-Boy 602644

Gasket-Exhaust

$

$

Not available

49

Lawn-Boy 602717

Sleeve-Exhaust

$2.99

$

In Stock, Qty 20+

0

50

Lawn-Boy 402527

Gasket-Muffler Cover

$

$

Not available

51

Lawn-Boy 486416

Muffler Cover and Outlet Pipe

$

$

Currently unavailable

52

Lawn-Boy 306522

Lockwasher-Muffler Screw

$

$

Not available

53

Lawn-Boy 306401

Screw-Muffler Cover

$

$

Not available

54

Lawn-Boy 402289

Oil Seal-Gearcase to Driveshaft

$

$

Not available

55

Lawn-Boy 402291

Washer-Belleville Clutch

$

$

Not available

56

Lawn-Boy 602553

Washer-Steel-Drive Shaft Sprocket

$

$

Currently unavailable

57

Lawn-Boy 602178

Washer-Fiber-Driveshaft Sprocket

$

$

Not available

58

Lawn-Boy 402284

Sprocket-Driveshaft

$

$

Not available

59

Lawn-Boy 132497

Nut-Driveshaft

$

$

Not available

60

Lawn-Boy 53-83

Cotter Pin-Driveshaft

$

$

Currently unavailable

61

Lawn-Boy 306325

Lockwasher-Stabilizer Bracket Screw

$

$

Not available

62

Lawn-Boy 306555

Screw-Stabilizer Bracket

$

$

Not available

63

Lawn-Boy 402285

Sprocket-Impeller Shaft

$

$

Not available

64

Lawn-Boy 306450

Screw-Sprocket to Impeller

$

$

Not available

65

Lawn-Boy 402297

Locknut-Sprocket Screw

$

$

Currently unavailable

66

Lawn-Boy 402264

Impeller Shaft

$

$

Not available

67

Lawn-Boy 402262

Bushing-Impeller Hub

$

$

Not available

68

Lawn-Boy 486308

Impeller and Hub Assembly (Includes item 69)

$

$

Not available

69

Lawn-Boy 402312

Spring Clip-Oil Hole Cover, Impeller Hub

$

$

Not available

70

Lawn-Boy 402290

Drive Chain

$

$

Not available

71

Lawn-Boy 402286

Cover-Air Intake-Muffler

$

$

Not available

72

Lawn-Boy 303686

Screw-Air Intake Cover Muffler

$

$

Not available

73

Lawn-Boy 402298

Screen-Air Intake-Muffler

$

$

Not available

74

Lawn-Boy 486428

Heat Exchanger Tube and Insulating Sleeve

$

$

Not available

75

Lawn-Boy 602594

Screw-Heat Exchanger to Carburetor

$

$

Not available

76

Lawn-Boy 486376

Connecting Link

$

$

Not available

77

Lawn-Boy 402643

Locknut-Front Wheel

$

$

Not available

78

Lawn-Boy 402632

Spring-Stud Retainer

$

$

Not available

79

Lawn-Boy 302326

Washer

$

$

Currently unavailable

80

Lawn-Boy 303686

Screw-Shield to Muffler

$

$

Not available

81

Lawn-Boy 402529

Muffler-Insulation-Small

$

$

Not available

82

Lawn-Boy 402520

Muffler-Shield-Small

$

$

Not available

83

Lawn-Boy 402608

Muffler-Insulation-Large

$

$

Not available

84

Lawn-Boy 402607

Muffler-Shield-Large

$

$

Not available

85

Lawn-Boy 402517

Gasket

$

$

Not available

86

Lawn-Boy 486467

Stud, Bow Washer and Pin Assembly

$

$

Not available
