SB-1350 W (31AE993I190) - White Outdoor Snow Boss Snow Thrower (1999) Auger Housing Parts Diagram

Snow Boss Snow Thrower

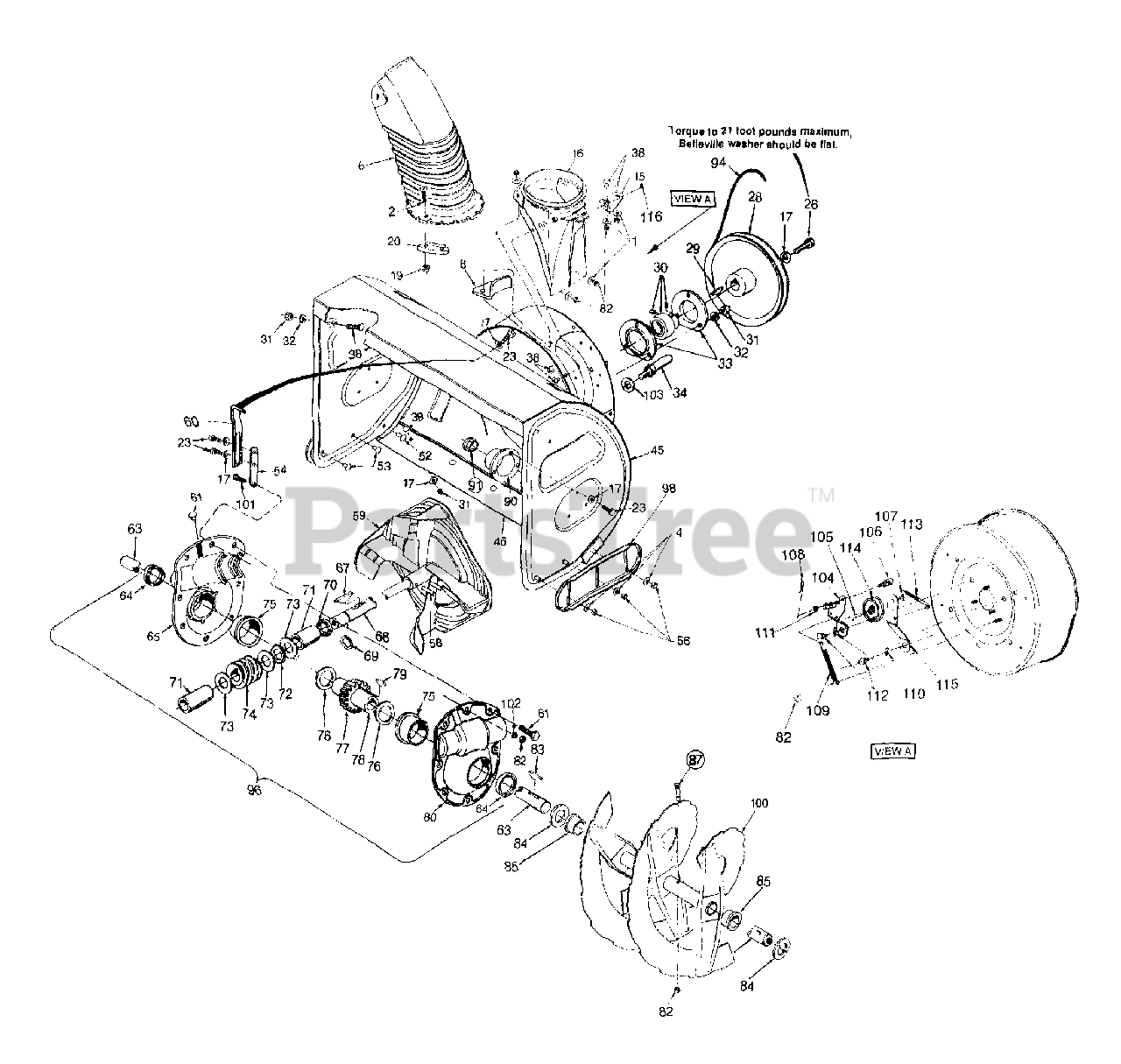

Auger Housing Parts Diagram

  • Title

1

MTD 936-0159

Flat Washer .344 I.D. x .875 O.D.
(Superseded to 736-0159)

$

$

Not available

2

MTD 710-3015

Truss. Hd. Mach. Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0105

Bell. Washer

$4.99

$

In Stock, Qty 20+

0

6

MTD 731-0903E

6" Lower Chute Remote Tilt

$45.99

$

In Stock, Qty 8

0

8

MTD 784-5711-0637

Chute Bracket

$

$

Not available

15

MTD 784-5123-0637

Chute Bracket

$18.99

$

Usually ships in 3-6 days

0

16

MTD 731-1696B

Chute Adapter

$96.99

$

In Stock, Qty 9

0

17

MTD 736-0242

Bell. Washer .345 I.D. x .88 O.D. x .06

$4.99

$

In Stock, Qty 20+

0

19

MTD 912-3027

Hex Cent. L-Nut 1/4-20 w/Flange

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1260A

Hex Wash HD Self-Tap Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0371

Hex Screw 5/16-18 x .75
(Superseded to 710-1880)

$4.99

$

In Stock, only 2 left!

0

28

MTD 756-0243

1/2" V-Pulley .875 I.D. x 10.12 O.D.

$100.99

$

Usually ships in 3-6 days

0

29

MTD 914-0126

#9 Hi-Pro Key 3/16 x 3/4 Dia. HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 20+

0

30

MTD 941-0185

Self-Aligning Bearing .875 I.D.

$70.99

$

In Stock, only 1 left!

0

31

MTD 912-3010

Hex Nut 5/16-18 Gr. 5
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

32

MTD 936-0119

L-Wash 5/16 I.D.

$4.99

$

In Stock, Qty 20+

0

33

MTD 05244B

Bearing Housing

$25.99

$

In Stock, only 2 left!

0

34

MTD 911-0640

Belt Keeper Studs 3/8-16 x 2.75
(Superseded to 711-0640)

$8.49

$

Usually ships in 3-6 days

0

38

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

45

MTD 684-0093A

33" Snowthrower Hsg. Ass'y
(Superseded to 684-0093B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0093A-0498

33" AUGER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0093A-0638

HOUSING-33" AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0093A-0650

HOUSING-33" AUGER - RED METALLIC (0650)

$

$

Not available

MTD 684-0093A-0662

No Longer Available HOUSING-33 - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0093A-0665

HOUSING-AUGER 33" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0093A-0716

33" AUGER HOUSING (CUB YELLOW 99) - CUB YELLOW-99 (0716)

$

$

Not available

$667.99

$

Usually ships in 3-6 days

0

46

MTD 784-5714B-0637

Shave Plate 33"

$58.99

$

In Stock, only 2 left!

0

52

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00 Gr. 5

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.99

$

Usually ships in 3-6 days

0

54

MTD 784-5710-0637

Gear Housing Support Plate 1 x 3/16

$8.99

$

Usually ships in 3-6 days

0

56

MTD 712-0798

Hex Jam Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

58

MTD 915-0118

Spring Spiral Pin Heavy 5/16 Dia. x 1.7
(Superseded to 715-0118)

$

$

Not available

59

MTD 684-0090B-0637

Blower Fan Ass'y

$

$

Not available

60

MTD 784-5076-0637

Gear housing Support Bracket 1 x 3/16

$49.99

$

Usually ships in 3-6 days

0

61

MTD 721-0325

Barbed Plug

$4.99

$

In Stock, only 3 left!

0

63

MTD 738-0491

Spiral Axle -33"

$

$

Not available

64

MTD 921-0146

Oil Seal 1.50 ID Garlock (76 x 6223)

$13.99

$

In Stock, only 3 left!

0

65

MTD 918-0246

Gear Housing Half - RH

$

$

Not available

67

MTD 914-0126

#9 Hi-Pro Key 3/16 x 3/4 Dia. HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 20+

0

68

MTD 711-1133

Auger Drive Shaft

$304.99

$

Usually ships in 3-6 days

0

69

MTD 716-0111

Snap Ring for .875 Dia. shaft

$6.99

$

In Stock, only 2 left!

0

70

MTD 921-0145

Oil Seal for .875 I.D. (76 x 6133)

$10.99

$

In Stock, Qty 5

0

71

MTD 941-0217

Sleeve Bearing .875 I.D.

$18.99

$

In Stock, only 2 left!

0

72

MTD 741-0184

Thrust Bearing .88 I.D. x 1.44 O.D. x .078

$17.99

$

In Stock, only 2 left!

0

73

MTD 936-0291

Flat Washer .88 I.D. x 1.4 O.D. x .125
(Superseded to 736-0291)

$12.99

$

In Stock, only 3 left!

0

74

MTD 917-0299

Worm Gear L.H. Double Thread

$131.99

$

In Stock, only 1 left!

0

75

MTD 741-0670

Flange Brg. 1.5 I.D. x 1.75 O.D. x .80

$13.99

$

Usually ships in 3-6 days

0

76

MTD 936-0266

Flat Washer 1.5 I.D. x 2.0 O.D. x .03
(Superseded to 736-0266)

$

$

Not available

77

MTD 917-1425

Worm Gear LH Double Thread (Bronze)

$188.99

$

Usually ships in 3-6 days

0

78

MTD 738-0275

Worm Gear Shaft

$118.99

$

Usually ships in 3-6 days

0

79

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

80

MTD 918-0247

Gear Housing Half L.H.

$110.99

$

In Stock, only 1 left!

0

81

MTD 710-1260A

Hex Flange Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

82

MTD 912-0429

Hex Ins. L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

83

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

84

MTD 736-0250

Flat Wash.

$4.99

$

In Stock, Qty 20+

0

85

MTD 741-0494

Flange Bearing

$4.49

$

In Stock, Qty 16

0

87

MTD 710-0891

Shear Bolt 5/16-18 x 1.75

$7.99

$

In Stock, only 4 left!

0

90

MTD 05845C-0637

Housing bearing 1.5 Dbl D

$25.99

$

In Stock, only 1 left!

0

91

MTD 941-0170

Flange Bearing w/flats

$20.99

$

In Stock, only 4 left!

0

94

MTD 954-0222A

V-Belt 1/2 x 44 LG

$42.99

$

In Stock, only 3 left!

0

96

MTD 618-0436

Worm Gear Box Ass'y

$710.99

$

Usually ships in 3-6 days

0

98

MTD 784-5697

Reversible Skid Shoe

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$46.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

100

MTD 705-5210A-0637

RH Spiral Ass'y Serrated - 33"
(Superseded to 684-04194-0637)

$

$

Not available

100

MTD 684-04195-0637

LH Spiral Ass'y Serrated - 33"

$

$

Not available

101

MTD 710-0528

Hex Scr 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

102

MTD 936-0271

5/16 Sprg Wash.

$4.99

$

In Stock, Qty 9

0

103

MTD 936-0169

3/8 Sprg Lock Wash.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

104

MTD 918-0281A

Brkt Ass'y Brkt

$68.99

$

In Stock, only 2 left!

0

105

MTD 710-0459A

Scr Hex Cap 3/8-24 x 1.5 Gr. 5

$7.49

$

In Stock, Qty 11

0

106

MTD 911-0677

Adjustment Ferrule

$18.99

$

In Stock, only 3 left!

0

107

MTD 912-0116

Hex Ins L-Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

108

MTD 914-0104

Intern Cot-Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 17

0

109

MTD 732-0858

Spr Extn .470 Dia. x 4.75 Lg

$26.99

$

In Stock, only 4 left!

0

110

MTD 736-0174

Wave Washer .66 ID x .88 O.D.

$7.49

$

In Stock, only 2 left!

0

111

MTD 936-3008

Fl-Wash SAE .34 x .68

$7.49

$

Usually ships in 3-6 days

0

112

MTD 938-0281

Shld Scr .625 Dia. x .170 x .062
(Superseded to 738-0281)

$

$

Not available

113

MTD 747-0980

Rod Idler Auger
(Superseded to 747-0980A)

$47.99

$

Usually ships in 3-6 days

0

114

MTD 756-0178

3.0 OD Flat Idler with Flanges

$21.99

$

In Stock, only 2 left!

0

115

MTD 784-0385D

Brkt Idler Auger

$31.99

$

Usually ships in 3-6 days

0

116

MTD 941-0475

Plastic Bushing .380 I.D.

$4.49

$

In Stock, Qty 20+

0
