SB-1350 W (31AE993J190) - White Outdoor Snow Boss Snow Thrower (2001) Handle Panel & Chute Assembly 1355W Parts Diagram

Snow Boss Snow Thrower

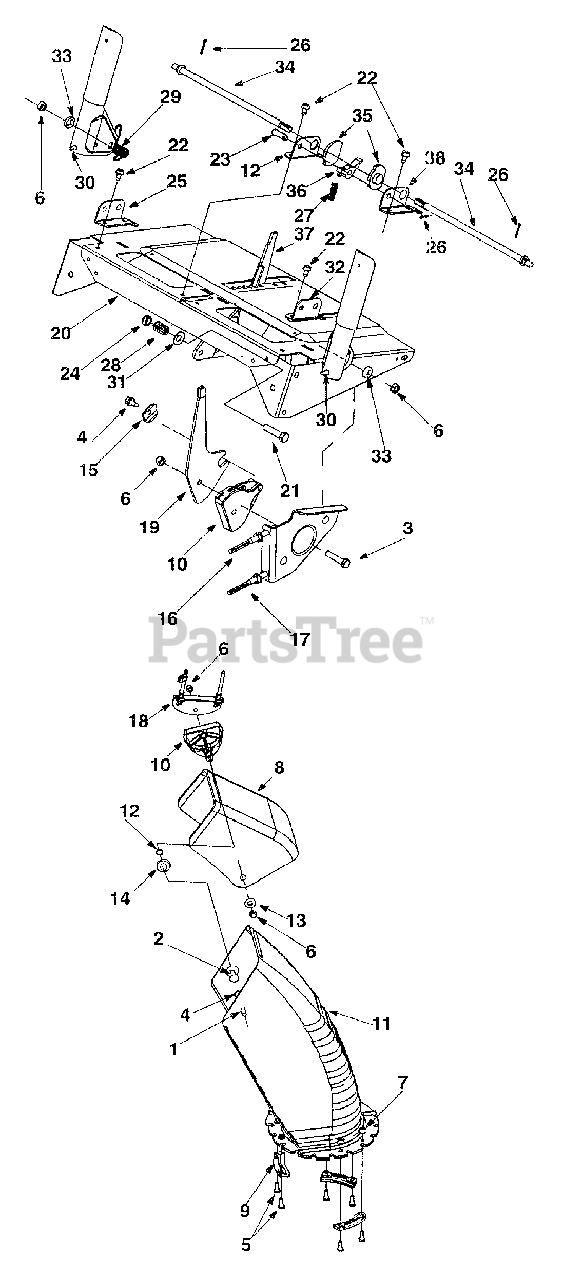

Handle Panel & Chute Assembly 1355W Parts Diagram

  • Title

1

MTD 710-0276

Carriage Screw

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

3

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

4

MTD 710-0896

Hex AB Screw 1/4-14 x .625"

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3015

Hex Screw 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

6

MTD 912-0429

Hex Lock Nut
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

7

MTD 912-3027

Hex Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

8

MTD 731-0846C

Upper Chute

$48.99

$

In Stock, only 1 left!

0

9

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-1313C

Cable Guide: Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

11

MTD 731-0903E

Lower Chute

$40.99

$

In Stock, Qty 14

0

12

MTD 784-5680-0637

Handle Suppt. Bracket 5/8 RH

$11.99

$

Usually ships in 3-6 days

0

13

MTD 936-0159

5/16 Washer
(Superseded to 736-0159)

$

$

Not available

14

MTD 936-0231

Flat Washer
(Superseded to 736-0231)

$

$

Not available

15

MTD 736-0506A

Special Washer

$

$

Not available

16

MTD 946-0902

Chute Control Cable

$45.99

$

Usually ships in 3-6 days

0

17

MTD 946-0903

Chute Cable w/Clip

$49.99

$

In Stock, only 1 left!

0

18

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

19

MTD 784-5604A-0637

Chute Tilt Handle

$23.99

$

Usually ships in 3-6 days

0

20

MTD 684-0102

Handle Panel Assembly w/ Tilt
(Superseded to 684-0102A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

21

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 10

0

22

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

23

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

24

MTD 912-0116

Jam Nut
(Superseded to 712-0116)

$

$

Not available

25

MTD 784-5682-0637

Handle Suppt. Bracket 3/8 RH

$26.99

$

Usually ships in 3-6 days

0

26

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 19

0

27

MTD 732-0145

Spring

$3.99

$

In Stock, only 1 left!

0

28

MTD 732-0193

Spring

$4.49

$

In Stock, Qty 8

0

29

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

30

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

31

MTD 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

32

MTD 784-5681

Handle Suppt. Bracket 3/8 LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

33

MTD 736-0509

Special Washer

$6.49

$

In Stock, only 1 left!

0

34

MTD 747-0877

Cam Rod

$21.99

$

Usually ships in 3-6 days

0

35

MTD 748-0362

Cam: Handle Lock

$7.49

$

In Stock, only 1 left!

0

36

MTD 948-0363

Pawl: Handle Lock

$15.99

$

In Stock, only 1 left!

0

37

MTD 753-05395

Shift Handle

$

$

Not available

38

MTD 784-5679-0637

Handle Suppt. Bracket 5/8 LH

$7.99

$

Usually ships in 3-6 days

0
