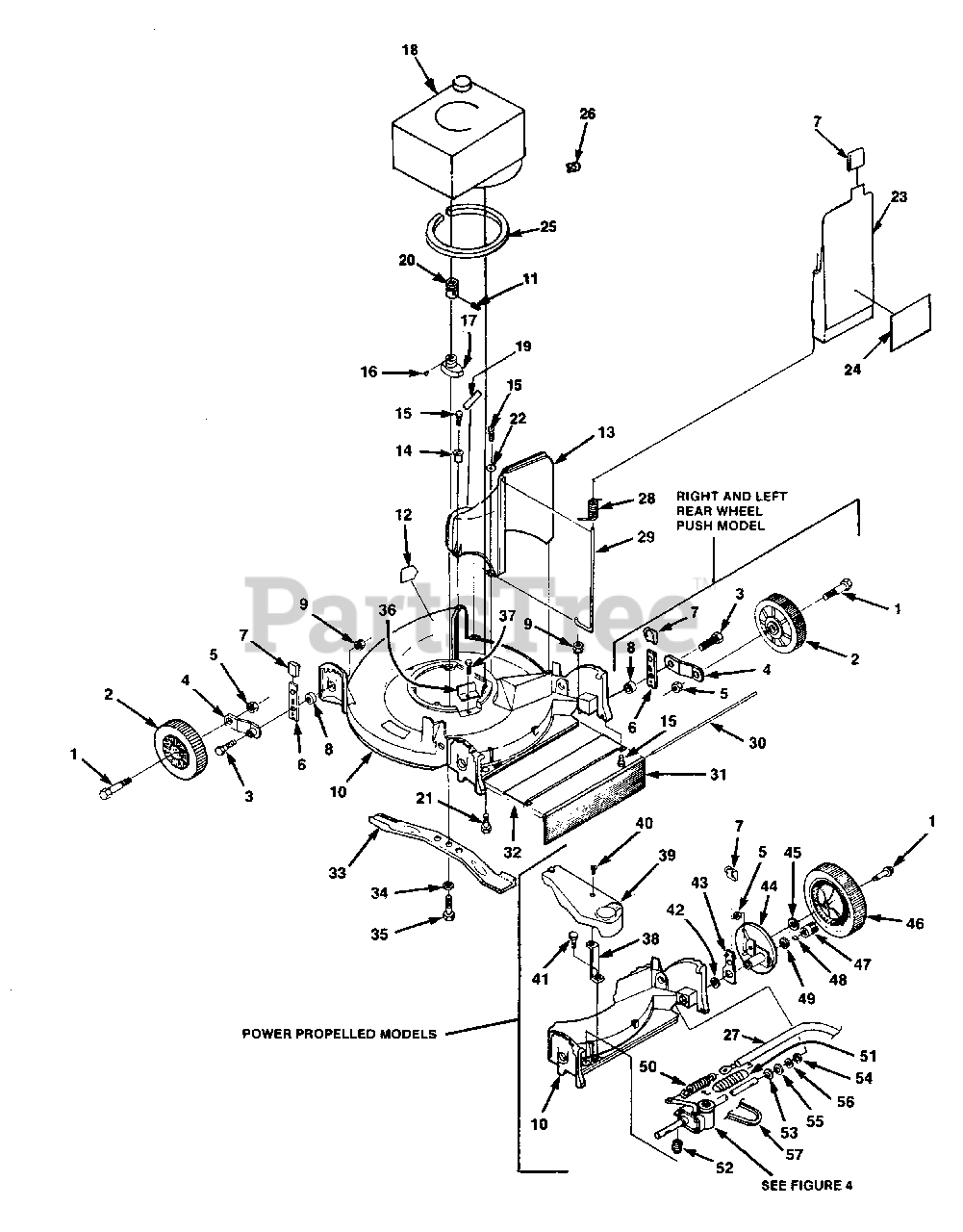

SB 21 P42 (UT-30090) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA359181

BOLT- Axle 3/8-24

$4.49

$

Usually ships in 3-7 days

0

2

Homelite JA121956

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. 5/16-18

$

$

Not available

4

Homelite JA991287

ARM- Wheel hgt. adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA445776

NUT- Hex 3/8-24

$

$

Currently unavailable

6

Homelite JA990087

SPRING- Index
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Index spring

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA991267

DECK- 21"

Note: (Incl. #12)

$

$

Currently unavailable

11

Homelite JA422505

SCREW

$

$

Not available

12

Homelite JA339460

DECAL- Warning

$

$

Not available

13

Homelite JA991283

CHUTE- Discharge

$

$

Currently unavailable

14

Homelite JA473183

SIMPSON EYELET

$5.49

$

Usually ships in 3-7 days

0

15

Homelite JA408878

SCREW- Hex hd. 1/4-20 x 3/4

$

$

Not available

16

Homelite JA463029

KEY- Woodruff #61

$

$

Not available

17

Homelite JA991821

ADAPTER- Blade

$17.99

$

Usually ships in 3-7 days

0

18

Homelite JA992702

ENGINE- 2 Cycle I.C.

$

$

Currently unavailable

19

Homelite 00305

DECAL

$

$

Currently unavailable

20

Homelite JA991819

PULLEY- Drive

$

$

Currently unavailable

21

Homelite JA408876

SCREW- 3/8-16 x 1 1/2

$

$

Not available

22

Homelite JA453023

WASHER
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite JA992794

DOOR- Chute

Note: (Incl. #24)

$

$

Currently unavailable

24

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

25

Homelite JA991878

RING- Engine
(Superseded to JA994311)

$

$

Not available

26

Homelite JA990567

STOP- Rope

$

$

Not available

27

Homelite JA991075

CABLE- Traction

$

$

Not available

28

Homelite JA992947

SPRING- Door

$

$

Not available

29

Homelite JA359167

PIN- Hinge

$

$

Not available

30

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

31

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

32

Homelite JA991285

COVER- Rear

$

$

Currently unavailable

33

Homelite JA992766

BLADE- 21"

$

$

Currently unavailable

34

Homelite JA446142

WASHER- Lock

$

$

Not available

35

Homelite JA403753

BOLT

$

$

Not available

36

Homelite JA991286

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

37

Homelite JA409907

SCREW- Hex hd. 1/4-20 x 1/2

Note: Not used on this product

$

$

Not available

38

Homelite JA359260

SUPPORT

$

$

Currently unavailable

39

Homelite JA991222

COVER- Drive

$

$

Currently unavailable

40

Homelite JA408879

SCREW- Rd. hd. 1/4-20 x 3/4

$

$

Currently unavailable

41

Homelite JA409704

SCREW- Hex hd. 10-16 x 1/2

$

$

Not available

42

Homelite JA359141

SPACER- Hgt. Adj.

$

$

Not available

43

Homelite JA991288

SPRING- Index

$

$

Not available

44

Homelite JA990074

DRIVE WHEEL SUPPORT
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER- Flat

$

$

Not available

46

Homelite JA161596

WHEEL & TIRE
(Superseded to JA993975)

$

$

Not available

47

Homelite JA204244

PINION (R.H.)

$

$

Not available

Homelite JA204245

PINION (L.H.)

$

$

Currently unavailable

48

Homelite JA313659

PAWL- Pinion

$

$

Not available

49

Homelite JA351077

WASHER- Flat

$

$

Not available

50

Homelite JA375748

SPRING- Traction lever

$

$

Not available

51

Homelite JA359270

COVER- Spring

$

$

Currently unavailable

52

Homelite JA359266

SPRING- Compression

$

$

Not available

53

Homelite JA458451

RING- Eaton

$1.99

$

Usually ships in 3-7 days

0

54

Homelite JA454037

WASHER- Flat

$

$

Not available

55

Homelite JA353406

WASHER

$

$

Not available

56

Homelite JA328147

WASHER- Shim

$

$

Not available

57

Homelite JA991218

BELT- Drive

$

$

Not available
