SB 21 P5C (UT-30138) - Homelite 21" Superbagger Walk-Behind Mower Handles And Controls Parts Diagram

21" Superbagger Walk-Behind Mower

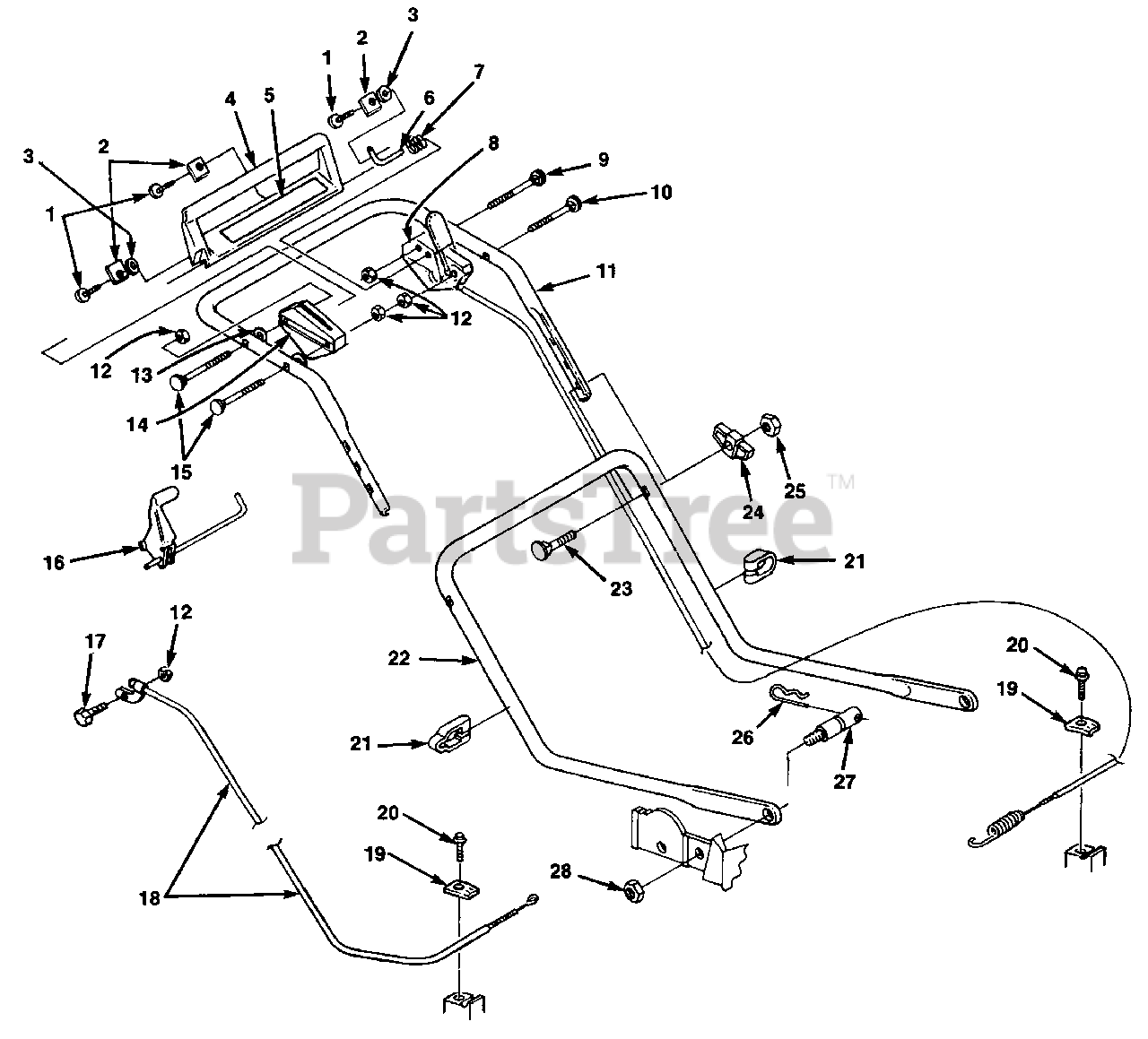

Handles And Controls Parts Diagram

  • Title

1

Homelite JA408881

SCREW- (1/4-10 x 5/8")

$

$

Not available

2

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

3

Homelite JA453023

WASHER- Plain (1/4")
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite JA991448

BAIL- Brake control

$

$

Currently unavailable

5

Homelite JA994070

DECAL- Brake bail

$

$

Currently unavailable

6

Homelite JA992560

SHAFT- Pivot

$

$

Currently unavailable

7

Homelite JA990141

SPRING- Compression

$

$

Not available

8

Homelite JA991353

CONTROL- Blade/Brake/Clutch

$

$

Currently unavailable

9

Homelite JA991611

BOLT- Sq. neck (1/4-20 x 2 1/8")

$3.49

$

Usually ships in 3-7 days

0

10

Homelite JA992930

BOLT- Sq. neck (1/4-20 x 2 1/4")

$3.49

$

Usually ships in 3-7 days

0

11

Homelite JA992350

HANDLE- Upper

$

$

Currently unavailable

12

Homelite JA444708

NUT- Hex (1/4-20)

$

$

Currently unavailable

13

Homelite JA991469

SPACER

$

$

Currently unavailable

14

Homelite JA994628

BOX- Pivot

$

$

Currently unavailable

15

Homelite JA992920

BOLT- Sq. neck (1/4-20 x 2")

$

$

Currently unavailable

16

Homelite JA995540

LEVER- Traction

$

$

Currently unavailable

17

Homelite JA400116

SCREW- (1/4-20 x 1 1/2")

$

$

Not available

18

Homelite JA991075

CABLE- Traction

$

$

Not available

19

Homelite JA991065

CLAMP

$

$

Not available

20

Homelite JA409908

SCREW- (1/4-20 x 5/8")

$2.49

$

Usually ships in 3-7 days

0

21

Homelite JA994274

TIE- Cable

$

$

Not available

22

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

23

Homelite JA359102

BOLT- Handle joining

$

$

Not available

24

Homelite JA339550

KNOB- Handle

$

$

Not available

25

Homelite JA443106

NUT- Hex (5/16 x 18)
(Superseded to 81018)

$

$

Not available

26

Homelite JA460306

PIN- Cotter hair

$

$

Not available

27

Homelite JA359178

STUD- Handle mtg.

$

$

Not available

28

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available
