SB 21 P5C (UT-30138) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

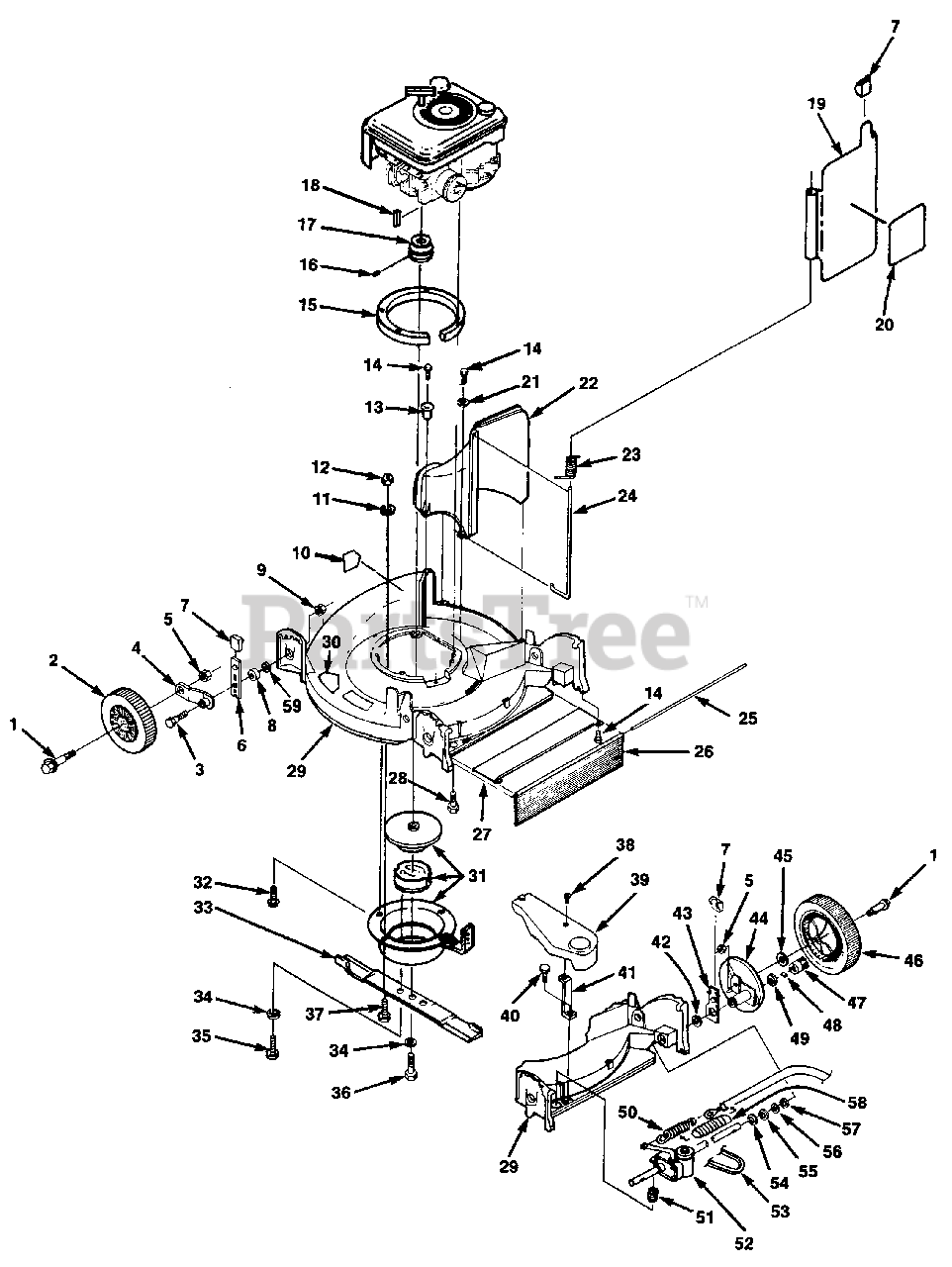

Mower Parts Diagram

  • Title

1

Homelite JA992138

BOLT- Axle
(Superseded to UP06685)

Note: (Incl. #5)

$

$

Currently unavailable

2

Homelite JA993958

WHEEL & TIRE ASSY.
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Ht. adj.

$

$

Not available

4

Homelite JA991287

WHEEL- Adjuster arm
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- (3/8-16)
(Superseded to JA993711)

$

$

Not available

6

Homelite JA990087

SPRING
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Index spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Ht. adj.

$

$

Not available

9

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

10

Homelite JA339460

DECAL- Warning

$

$

Not available

11

Homelite JA446134

WASHER- Lock (5/16")
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

13

Homelite JA473183

STIMPSON EYELET

$5.49

$

Usually ships in 3-7 days

0

14

Homelite JA408878

SCREW- (1/4-20 x 3/4")

$

$

Not available

15

Homelite JA994632

RING- Engine

$

$

Currently unavailable

16

Homelite JA422505

SCREW- Set (1/4-20 x 3/8")

$

$

Not available

17

Homelite JA994351

PULLEY- Drive

$

$

Currently unavailable

18

Homelite JA463029

KEY- Woodruff #61 (5/8 x 3/16")

$

$

Not available

19

Homelite JA994092

DOOR- Chute

Note: (incl. #7 & #26)

$76.99

$

Usually ships in 3-7 days

0

20

Homelite JA994091

DECAL- Door

$

$

Currently unavailable

21

Homelite JA453023

WASHER- Plain (1/4")
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite JA991283

CHUTE-

Note: (Incl. item #12)

$

$

Currently unavailable

23

Homelite JA992947

SPRING- Chute door

$

$

Not available

24

Homelite JA359167

PIN- Hinge

$

$

Not available

25

Homelite JA359170

ROD- ZP drag flap

$

$

Currently unavailable

26

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

27

Homelite JA991285

COVER

$

$

Currently unavailable

28

Homelite JA994625

SCREW- Hex hd. sims (3/8-16 x 2 1/2")

$

$

Currently unavailable

29

Homelite JA994612

DECK ASSY.

Note: (Incl. decals)

$

$

Currently unavailable

30

Homelite JA992393

DECAL- Foot pad

$4.49

$

Usually ships in 3-7 days

0

31

Homelite JA994602

BLADE/BRAKE/CLUTCH

$547.99

$

Usually ships in 3-7 days

0

32

Homelite JA409912

SCREW- (5/16-18)

$4.49

$

Usually ships in 3-7 days

0

33

Homelite JA991189

BAR- Cutter (21")

$

$

Currently unavailable

34

Homelite JA446142

WASHER- Lock hvy. (3/8")

$

$

Not available

35

Homelite JA401208

SCREW-(3/8-16 x 1")

$

$

Currently unavailable

36

Homelite JA401209

SCREW-(3/8-24 x 2")

$

$

Currently unavailable

37

Homelite JA400202

SCREW-(5/16-18 x 3")

$

$

Not available

38

Homelite JA408879

SCREW-(1/4-20 x 3/4")

$

$

Currently unavailable

39

Homelite JA994218

COVER-Drive

$

$

Currently unavailable

40

Homelite JA409704

SCREW-Hex (#10-16)

$

$

Not available

41

Homelite JA994243

SUPPORT

$

$

Currently unavailable

42

Homelite JA359141

SPACER- Rear hgt. adj.

$

$

Not available

43

Homelite JA991288

SPRING

$

$

Not available

44

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

$

$

Not available

47

Homelite JA204244

PINION- Ht. (R.H.)

$

$

Not available

Homelite JA204245

PINION- Ht. (L.H.)

$

$

Currently unavailable

48

Homelite JA313659

PAWL- Ht. Pinion

$

$

Not available

49

Homelite JA351077

WASHER

$

$

Not available

50

Homelite JA375748

SPRING- Extension

$

$

Not available

51

Homelite JA359266

SPRING- Compression

$

$

Not available

52

Homelite JA991278

GEAR REDUCER ASSY.

$

$

Currently unavailable

53

Homelite JA991218

BELT- Drive

$

$

Not available

54

Homelite JA458451

RING- Eaton

$1.99

$

Usually ships in 3-7 days

0

55

Homelite JA353406

WASHER

$

$

Not available

56

Homelite JA328147

WASHER

$

$

Not available

57

Homelite JA454037

WASHER

$

$

Not available

58

Homelite JA359270

COVER- Spring

$

$

Currently unavailable

59

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available
