SB 21 (UT-30058) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

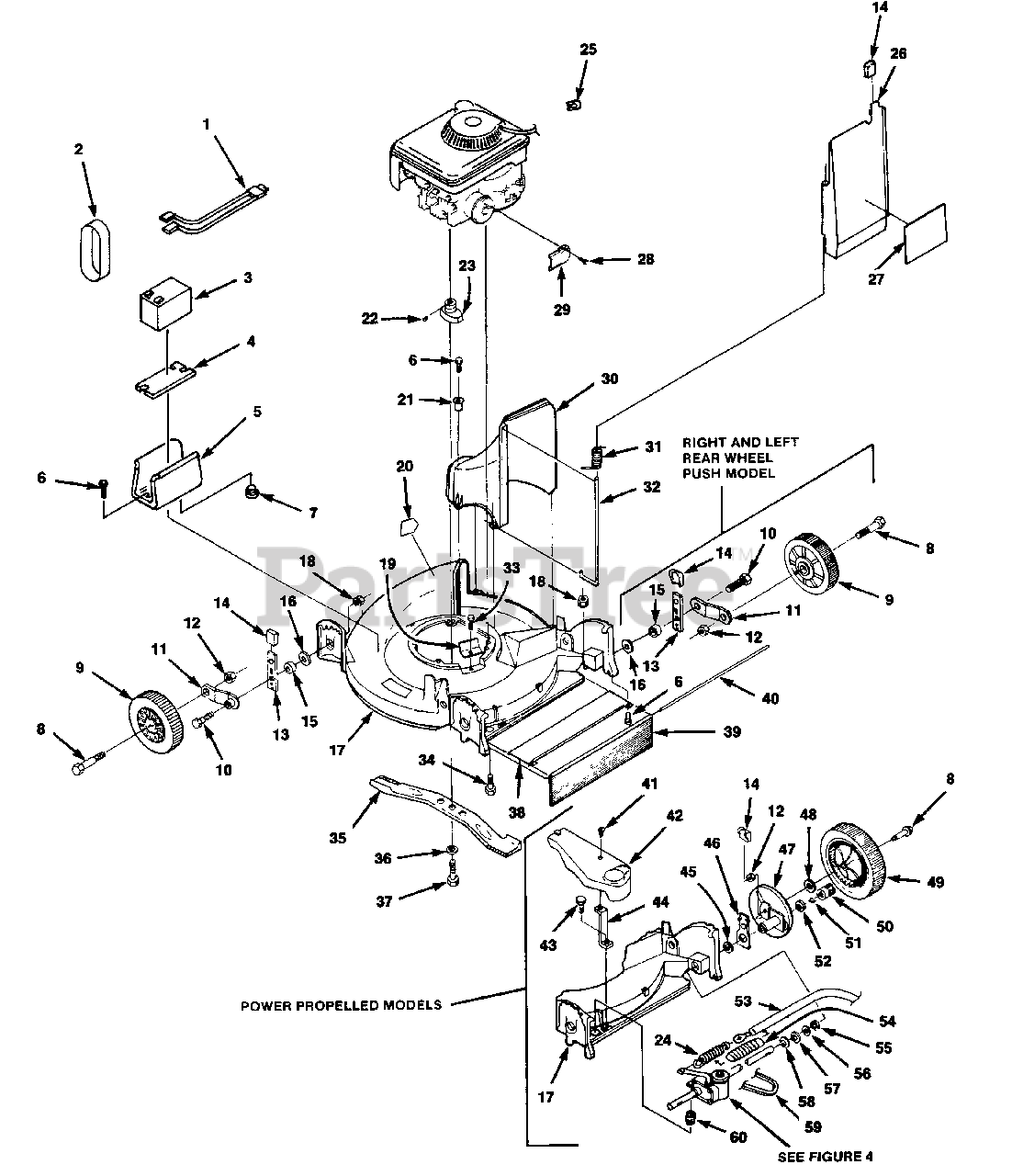

Mower Parts Diagram

  • Title

1

LEAD- Battery

Note: Not used in this model

$

$

Not available

2

BAND- Rubber

Note: Not used in this model

$

$

Not available

3

BATTERY- 12 volt

Note: Not used in this model

$

$

Not available

4

PAD- Battery

Note: Not used in this model

$

$

Not available

5

HOLDER- Battery

Note: Not used in this model

$

$

Not available

6

Homelite JA408878

SCREW- Hex hd. (1/4-20 x 3/4")

$

$

Not available

7

BUMPER

Note: Not used in this model

$

$

Not available

8

Homelite JA992955

BOLT- Axle (3/8-16)
(Superseded to UP06685)

$

$

Currently unavailable

9

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

10

Homelite JA359180

BOLT- Hex hd. (5/16-18)

$

$

Not available

11

Homelite JA991287

ARM- Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

12

Homelite JA444850

NUT- Hex (3/8-16)
(Superseded to JA993711)

$

$

Not available

13

Homelite JA990087

SPRING- Index
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

14

Homelite JA336623

KNOB- Index spring
(Superseded to UP06697)

$

$

Not available

15

Homelite JA358362

SPACER- Index spring

$

$

Not available

16

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

17

Homelite JA991265

DECK- 21"

Note: (incl. #20 & 61)

$

$

Currently unavailable

DECK- 21"

Note: (incl. #20 & 61) Not used in this model

$

$

Not available

18

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

19

Homelite JA991286

COVER- Belt opening

$

$

Currently unavailable

20

Homelite JA339460

DECAL- Warning

$

$

Not available

21

Homelite JA473183

EYELET- Stimpson

$10.99

$

Usually ships in 3-7 days

0

22

Homelite JA463107

KEY- (5/8 x 5/32")

$

$

Not available

23

Homelite JA241708

ADAPTER- Blade

$

$

Currently unavailable

ADAPTER- Blade

Note: Not used in this model

$

$

Not available

24

SPRING- Traction lever

Note: Not used in this model

$

$

Not available

25

Homelite JA990567

STOP- Rope

$

$

Not available

26

Homelite JA994092

DOOR- Chute

Note: (Incl. #27)

$153.99

$

Usually ships in 3-7 days

0

27

Homelite JA994091

DECAL- Door

$

$

Currently unavailable

28

SCREW- Hex hd. (8-32 x 3/8")

$

$

Not available

29

Homelite JA359256

DEFLECTOR- Muffler

$

$

Not available

30

Homelite JA991283

CHUTE- Discharge

Note: (incl. #21)

$

$

Currently unavailable

31

Homelite JA992947

SPRING- Door chute

$

$

Not available

32

Homelite JA359167

PIN- Hinge

$

$

Not available

33

Homelite JA409907

SCREW- Hex hd. (1/4-20 x 1/2")

$

$

Not available

34

Homelite JA408876

SCREW- (3/8-16 x 1 1/2")

$

$

Not available

35

Homelite JA390162

BLADE- 21"

$

$

Currently unavailable

36

Homelite JA446148

WASHER- Lock hvy. (7/16")

$

$

Not available

37

Homelite JA991212

BOLT- Shoulder

$

$

Not available

38

Homelite JA991284

COVER- Rear

$

$

Currently unavailable

COVER- Rear

Note: Not used in this model

$

$

Not available

39

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

40

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

41

SCREW- (1/4-20 x 3/4")

Note: Not used in this model

$

$

Not available

42

COVER- Drive

Note: Not used in this model

$

$

Not available

43

SCREW- Hex hd. (10-16 x 1/2")

Note: Not used in this model

$

$

Not available

44

SUPPORT- Belt cover

Note: Not used in this model

$

$

Not available

45

SPACER- Hgt. adj.

Note: Not used in this model

$

$

Not available

46

SPRING- Index

Note: Not used in this model

$

$

Not available

47

DRIVE WHEEL SUPPORT

Note: Not used in this model

$

$

Not available

48

WASHER- Flat

Note: Not used in this model

$

$

Not available

49

WHEEL & TIRE (drive)

Note: Not used in this model

$

$

Not available

50

PINION- R.H.

Note: Not used in this model

$

$

Not available

PINION- L.H.

Note: Not used in this model

$

$

Not available

51

PAWL- Pinion

Note: Not used in this model

$

$

Not available

52

WASHER- Flat

Note: Not used in this model

$

$

Not available

53

CABLE- Traction

Note: Not used in this model

$

$

Not available

CHARGER- Battery (opt.)

Note: Not used in this model

$

$

Not available

54

COVER- Spring

Note: Not used in this model

$

$

Not available

55

WASHER- Flat

Note: Not used in this model

$

$

Not available

56

WASHER- Shim

Note: Not used in this model

$

$

Not available

57

WASHER

Note: Not used in this model

$

$

Not available

58

RING- Eaton

Note: Not used in this model

$

$

Not available

59

BELT- Drive

Note: Not used in this model

$

$

Not available

60

SPRING- Compression

Note: Not used in this model

$

$

Not available

?61

Homelite JA992264

DECAL- Warning (CPSC)

Note: (not shown)

$

$

Not available
