SB-30 (316-142-190) - White Outdoor Snow Boss Snow Thrower (1996) Engine And V-Belt Parts Diagram

Snow Boss Snow Thrower

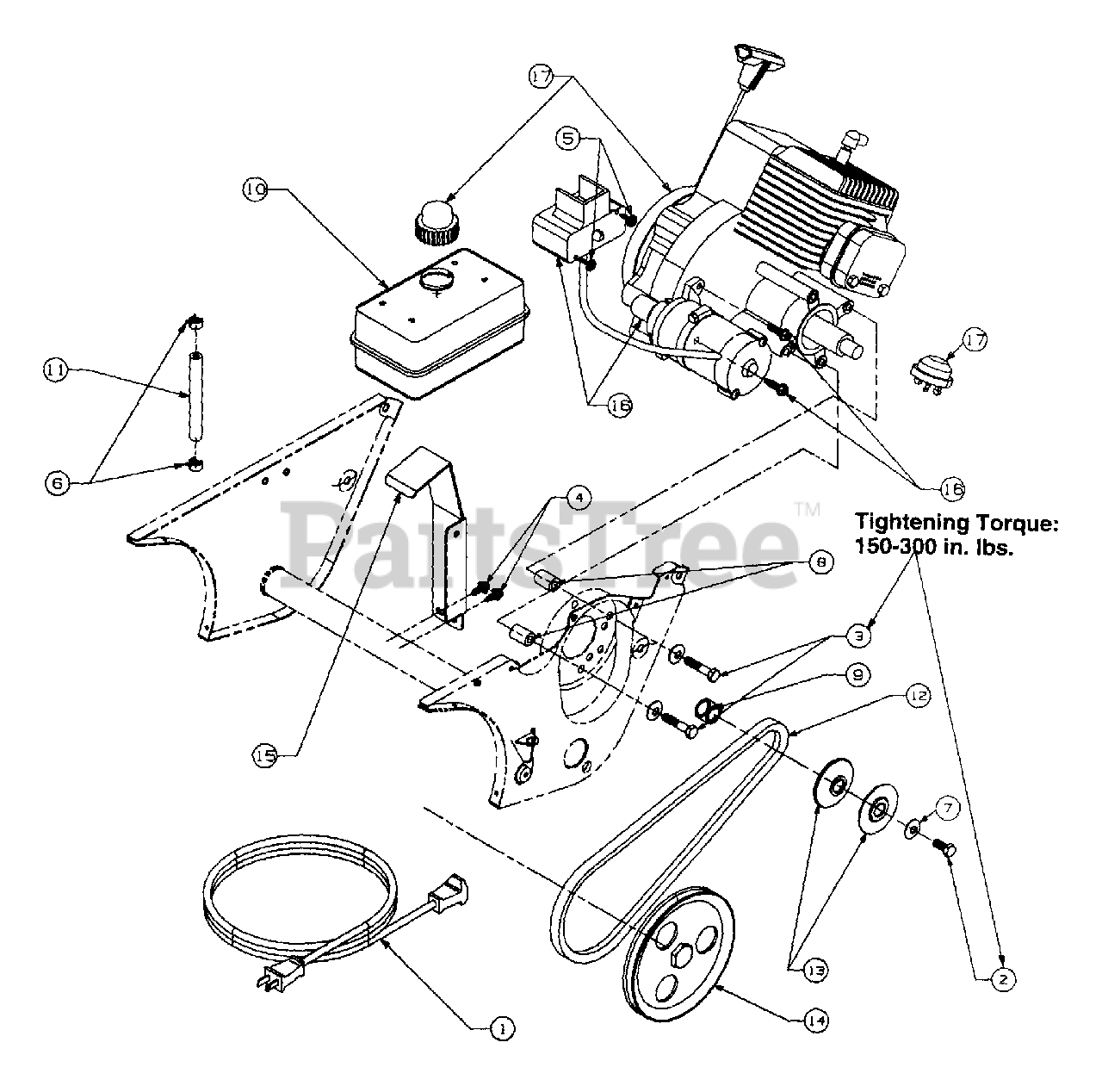

Engine And V-Belt Parts Diagram

  • Title

1

MTD 629-0236

Cord - Extension 110V3M 2 Prong

Note: For model 316E142-190 Only

$

$

Not available

2

MTD 710-0157

Screw - Hex Cap

$4.49

$

In Stock, Qty 7

0

3

MTD 710-0805

Screw - Hex Cap
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0896

Screw - Washer

$4.49

$

In Stock, Qty 8

0

5

MTD 710-04669

Screw - Hex

Note: For model 316E142-190 Only

$3.99

$

In Stock, Qty 20+

0

6

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0242

Washer - Bell

$4.99

$

In Stock, Qty 20+

0

8

MTD 950-0589

Spacer

$6.99

$

Usually ships in 3-6 days

0

9

MTD 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

10

MTD 751-0352

Tank - Fuel 1 Qt.
(Superseded to TC-32660A)

$

$

Not available

11

MTD 751-10349-13

Hose - Fuel 12"

$18.99

$

In Stock, only 4 left!

0

12

MTD 954-0367

V-Belt

$29.99

$

In Stock, only 4 left!

0

13

MTD 956-0416B

V-Pulley Half

$11.99

$

In Stock, only 2 left!

0

14

MTD 756-0550

Pulley

$

$

Not available

15

MTD 784-5177

Engine Support Bracket

Note: NLA

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 390-697-000

Electric Start Kit

Note: NLA - For model 316E142-190 Only

$

$

Currently unavailable

17

Engine

Note: Obtain from Engine Manufacturer

$

$

Not available
