SB-310 (315-151-190) - White Outdoor Snow Boss Snow Thrower (1985) Snow Thrower Assembly Parts Diagram

Snow Boss Snow Thrower

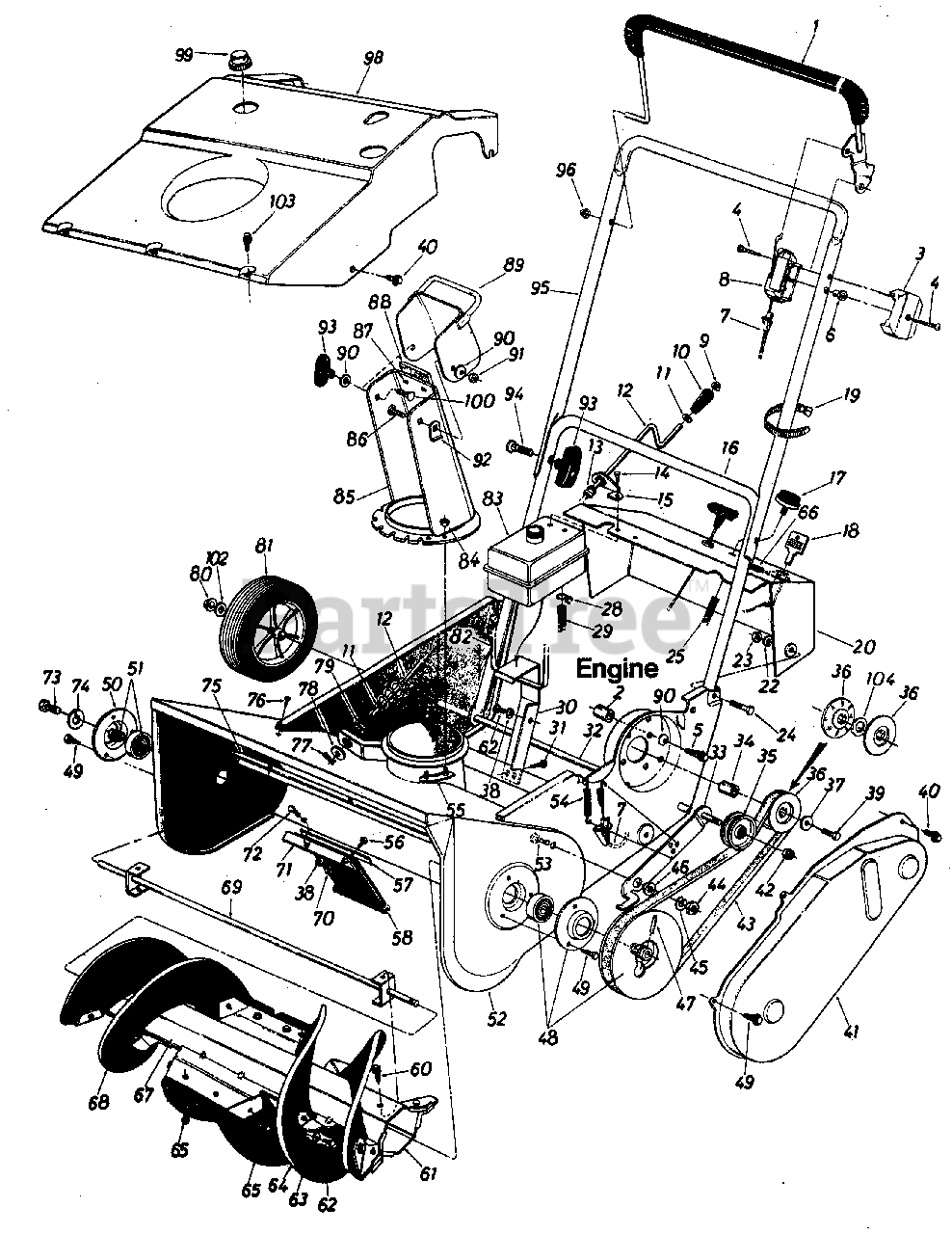

Snow Thrower Assembly Parts Diagram

  • Title

1

White Outdoor 731-0609

Clutch Control Handle Ass'y.

$

$

Not available

2

White Outdoor 750-0589

Spacer.325" I.D. x .625" O.D. x.87" Lg.
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

3

White Outdoor 731-0525

Control Panel Half

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, Qty 6

0

5

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

6

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

7

White Outdoor 746-0506

Clutch Cable 35" Lg. Black
(Superseded to 946-0506)

$35.99

$

In Stock, only 1 left!

0

8

White Outdoor 731-0526

Clutch Panel Half

$

$

Not available

9

White Outdoor 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

10

White Outdoor 720-0171

Knob Black 3/8" Dia. Hole
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

11

White Outdoor 736-0140

Fl-Wash. .385" I.D x .62" O.D.

$6.99

$

In Stock, Qty 9

0

12

White Outdoor 784-5179

Chute Crank Ass'y.

$

$

Not available

13

White Outdoor 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-0895

Hex Tap Scr. 1/4" x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

15

White Outdoor 784-5178

Upper Chute Crank Brkt.
(Superseded to 784-5178A)

$

$

Not available

16

749-0604

Lower Handle

$

$

Not available

17

White Outdoor 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

18

White Outdoor 725-0954

Starter Key
(Superseded to TC-35062)

$3.99

$

In Stock, only 2 left!

0

19

White Outdoor 726-0188

Cable Tie

$

$

Not available

20

784-5168

Dash Panel Ass'y.

$

$

Not available

22

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 723-0354

Primer Hose 118" I.D. x 11"
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 6

0

28

White Outdoor 726-0207

Hose Clamp .406" Dia.

$

$

Not available

29

White Outdoor 751-0173

Gas Line 9" Lg.
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

30

White Outdoor 784-5177

Engine Support Brkt.

Variations

White Outdoor 784-5177-0637

BRACKET-ENG SUP - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 710-0892

Hex L-Wash. Hd. AB Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

32

White Outdoor 749-0605

Wheel Axle

$

$

Not available

33

White Outdoor 784-5180

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

$

$

Not available

34

White Outdoor 748-0192

Spacer

$7.49

$

Usually ships in 3-6 days

0

35

White Outdoor 756-0313

Fl-ldler 2.00" x 1" w/ Flange

$24.99

$

In Stock, Qty 8

0

36

White Outdoor 756-0416

3/8" V-Pulley .625" I.D. x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

37

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

39

White Outdoor 710-0157

Hex Scr. 5/16-24 x .75" Lg.*

$3.99

$

In Stock, Qty 16

0

40

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62"
(Superseded to 910-0892)

$

$

Not available

41

White Outdoor 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

White Outdoor 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$53.99

$

In Stock, only 1 left!

0

42

White Outdoor 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

43

White Outdoor 754-0285

V-Belt 1/2" x 34" Lg.
(Superseded to 954-0285)

$

$

Not available

44

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

45

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 748-0234

Shld. Spacer 1.0" O.D. x .315 I.D.

$4.49

$

In Stock, Qty 10

0

47

White Outdoor 715-0151

Spring Pin Spir. 1/4" Dia. x 1.00" Lg.

$

$

Not available

48

White Outdoor 753-0398

Kit-Bearing, Cup and Pulley

$

$

Not available

49

White Outdoor 710-0352

Hex "B"-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

White Outdoor 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

White Outdoor 784-5174-0637

BEARING CUP-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 753-0374

Kit-Bearing and Collar

$

$

Not available

52

White Outdoor 784-5150

Blower Housing Ass'y.

$

$

Not available

53

White Outdoor 710-0323

Truss. Mach. Scr. 5/16-18 x 751' La.

$4.49

$

In Stock, only 2 left!

0

54

White Outdoor 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

55

White Outdoor 05783

Chute Flange Keeper Ass'y.

$

$

Not available

56

White Outdoor 710-0776

Hex Wash. AB-Tap Scr. 114" x.62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

57

14531

Retaining Strip 19.0" Lg.

$

$

Not available

58

White Outdoor 731-0587

Rear Flap 4.69" x 18.2"

$

$

Not available

60

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

61

784-5171

Auger Half 21.0" Lg.

$

$

Not available

62

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 736-0173

Fl-Wash. .28" I.D. x .74" O.D.

$3.99

$

In Stock, Qty 10

0

64

White Outdoor 731-0700

8.5" Dia. Rubber Spiral

$

$

Not available

65

White Outdoor 710-0896

Hex B-Tap Scr. 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 731-0496

Plastic Plug

$

$

Not available

67

784-5171

Auger Half 21.0" Lg.

$

$

Not available

68

White Outdoor 731-0700

8.5" Dia. Rubber Spiral

$

$

Not available

69

784-5172

Auger Axle Ass'y.

$

$

Not available

70

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

71

White Outdoor 784-5166

Shave Plate
(Superseded to 753-0451)

$62.99

$

In Stock, only 1 left!

0

72

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

73

White Outdoor 710-0875

Hex Wash. TT-Tap Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

74

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

75

784-5159

Thrower Housing Angle

$

$

Not available

76

White Outdoor 710-0352

Hex "B"-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

78

White Outdoor 736-0234

Fl-Wash. .385" I.D. x 1.5" O.D.

$5.99

$

Usually ships in 3-6 days

0

79

White Outdoor 741-0403

Hex Bushing .385" I.D.

$

$

Not available

80

White Outdoor 726-0221

Cap Speed Nut 1/2" Rod

$5.99

$

In Stock, only 2 left!

0

81

White Outdoor 734-0831

Wheel Ass'y. 6 x 1.50

$

$

Not available

82

White Outdoor 726-0225

Cable Tie x 17.75" Lg.

$

$

Not available

83

White Outdoor 751-0352

Gas Tank
(Superseded to TC-32660A)

$

$

Not available

84

White Outdoor 712-0107

Hex Nylon L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

85

White Outdoor 784-5160

5.0" Dia. Chute Ass'y.

$

$

Not available

86

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

87

728-0481

Rivet.250" x.44" Lg.

$

$

Not available

88

721-0198

Chute Seal

$

$

Not available

89

White Outdoor 784-5163

Top Chute Ass'y.

$

$

Not available

90

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

91

White Outdoor 712-0158

Hex Cent. L-N ut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

92

784-5170

Top Chute Stop

$

$

Not available

93

White Outdoor 09966

Knob-Handle Ass'y.
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

94

White Outdoor 710-0405

Curved Hd. Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

95

White Outdoor 749-0538

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

96

White Outdoor 726-0135

Cap Speed Nut 5/16" Rod

$6.49

$

In Stock, Qty 6

0

98

White Outdoor 731-0702

Shroud

$

$

Not available

99

White Outdoor 751-0353

Gas Tank Cap
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

100

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00"*

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 736-0108

Fl-Wash. .75" O.D. x .50" I.D.

$6.49

$

Usually ships in 3-6 days

0

103

White Outdoor 710-0351

Hex AB-Tap Scr. #10 x .50"

$4.49

$

In Stock, only 4 left!

0

104

White Outdoor 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

751-0355

3 H.P. 110V Electric Start

$

$

Not available
