SB-35 (316E142-190) - White Outdoor Snow Boss Snow Thrower (1996) Cover And Dash Parts Diagram

Snow Boss Snow Thrower

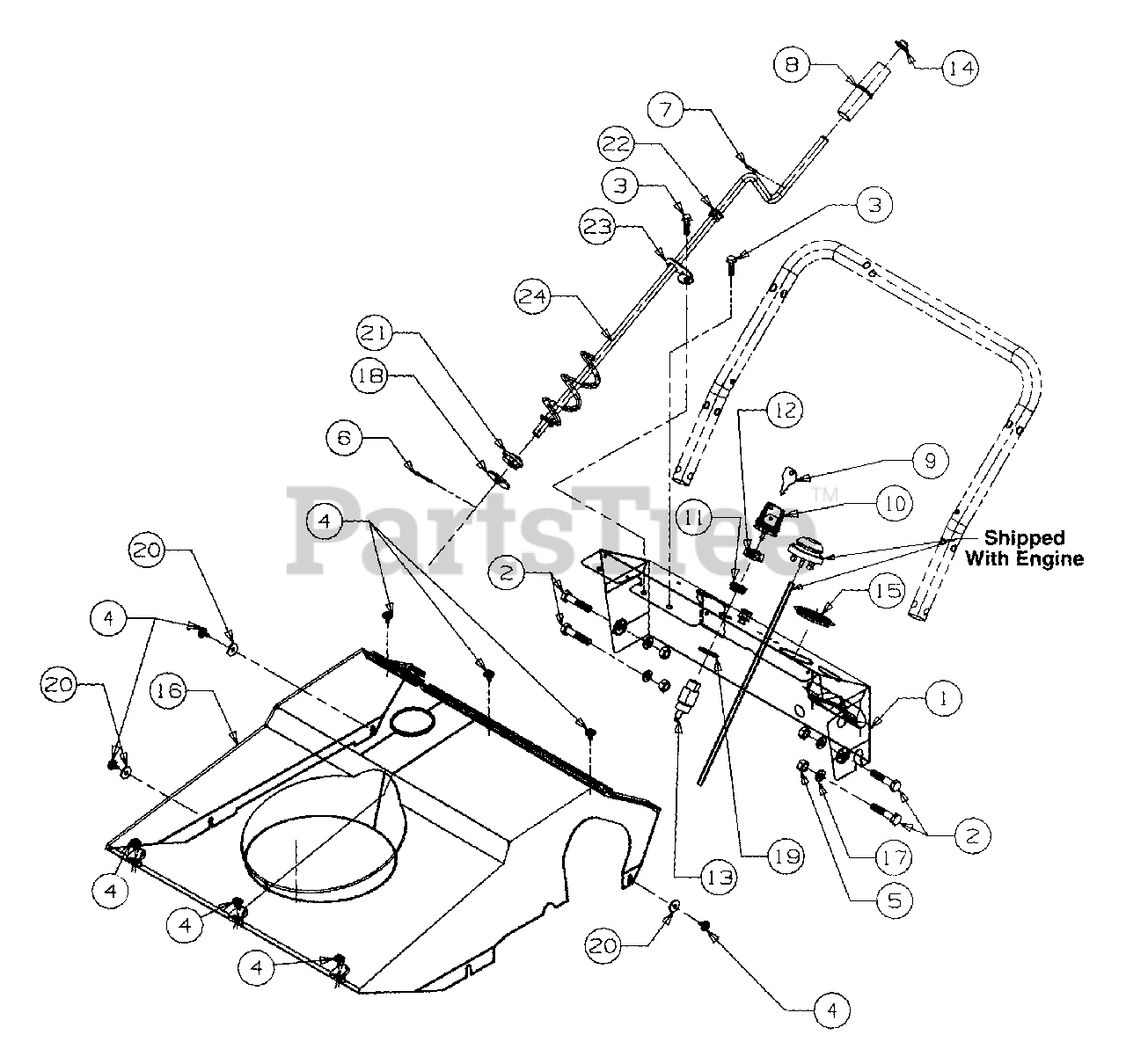

Cover And Dash Parts Diagram

  • Title

1

MTD 684-0056

Dash

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0056-0498

No Longer Available PANEL-DASH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0056-0629

PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0056-0637

PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

MTD 684-0056-0638

No Longer Available PANEL-DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0056-0662

Dash-21" - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0805

Screw - Hex Cap
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

3

MTD 710-0895

Screw - Hex

$5.99

$

In Stock, Qty 20+

0

4

MTD 710-1268

Screw - Hex

$3.99

$

Usually ships in 3-6 days

0

5

MTD 912-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 914-0507

Pin - Cotter

$4.49

$

In Stock, Qty 19

0

7

MTD 915-0138

Pin - Roll

$4.49

$

In Stock, only 1 left!

0

8

MTD 720-0201A

Knob - Chute Crank

$10.99

$

In Stock, Qty 6

0

9

MTD 925-0201

Key - Ignition

$8.99

$

In Stock, Qty 14

0

10

MTD 725-1341B

Key - Ignition with Logo

$9.99

$

In Stock, only 3 left!

0

11

MTD 925-1346

Nut - Ignition Switch

$

$

Not available

12

MTD 725-1347

Cap - Ignition Switch

$4.49

$

In Stock, only 4 left!

0

13

MTD 925-1425

Switch

$33.99

$

In Stock, only 1 left!

0

14

MTD 926-0100

Gap - Push
(Superseded to 726-0100)

$

$

Not available

15

MTD 731-0732

Plug - Snap In

$

$

Not available

16

MTD 731-1553

Shroud - Gray

Note: NLA

$

$

Not available

17

MTD 936-0119

Washer - Lock

$4.49

$

In Stock, Qty 20+

0

18

MTD 936-0133

Washer - Flat
(Superseded to 736-0133)

$

$

Not available

19

MTD 736-0225

Washer - Lock Internal

$3.99

$

In Stock, Qty 12

0

20

MTD 936-0400

Washer - Flat
(Superseded to 736-0400)

$

$

Not available

21

MTD 741-0403

Bushing - Hex

$

$

Not available

22

MTD 941-0475

Bushing - Plastic

$3.99

$

In Stock, Qty 20+

0

23

MTD 784-5178A

Bracket - Upper Chute Crank

$

$

Not available

24

MTD 784-5344

Crank - Chute

$

$

Not available
