SB-350 (311-181-190) - White Outdoor Snow Boss Snow Thrower (1991) Snow Thrower Assembly Parts Diagram

Snow Boss Snow Thrower

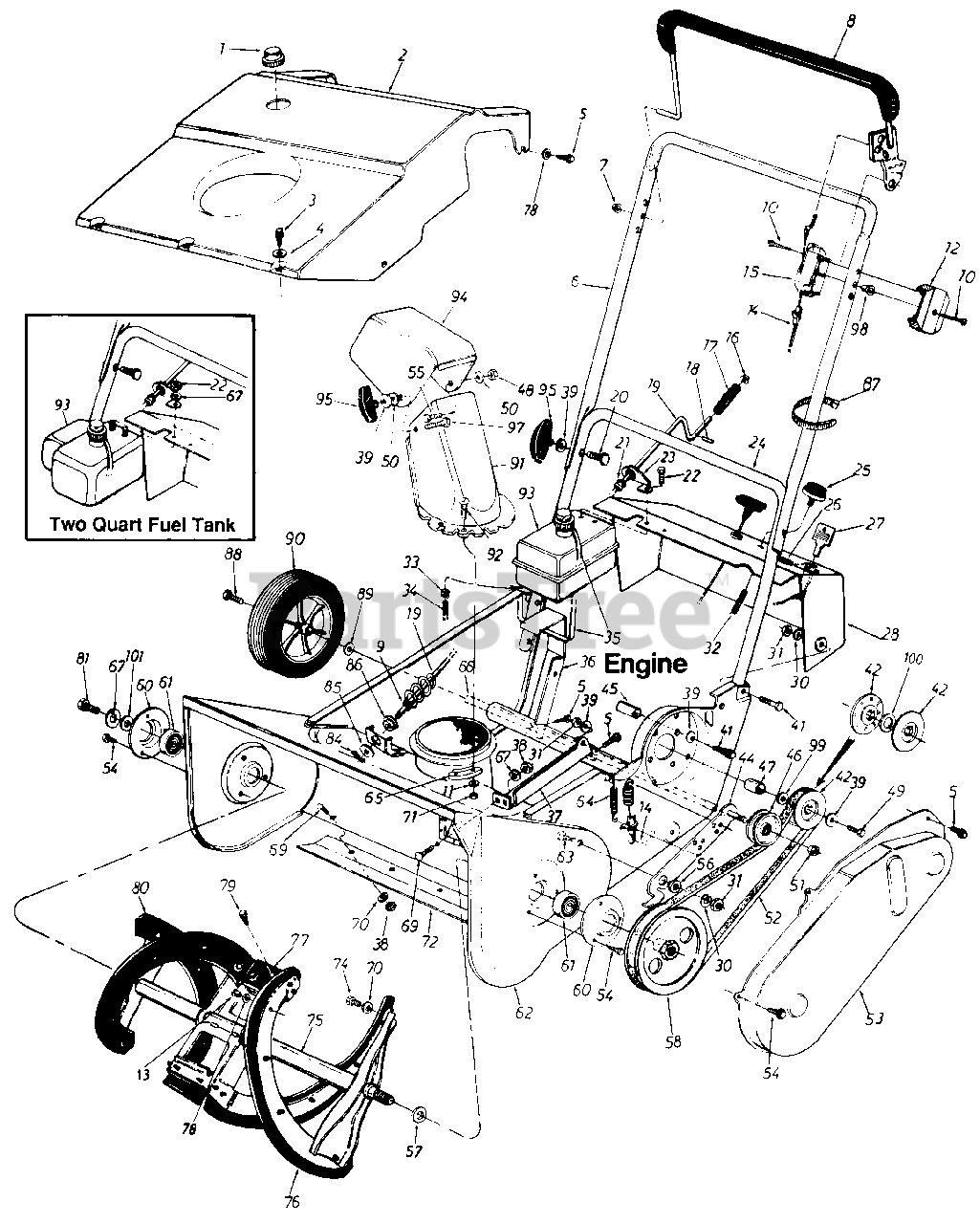

Snow Thrower Assembly Parts Diagram

  • Title

1

MTD TC-410240

Gas Tank Cap

$9.49

$

Usually ships in 3-12 days

0

2

MTD 731-0702

21" Shroud

Note: NLA

$

$

Not available

3

MTD 910-0429

Hex B-Tap Scr. #10 x .38"

$3.49

$

Usually ships in 3-6 days

0

4

MTD 736-0370

Spr.-Wash. .206" 1 .D. x .448"

Note: NLA

$

$

Not available

5

MTD 910-0892

Hex L-Wash. Hd. AB-Tap 1/4 x .62" Lg.

$

$

Not available

6

MTD 749-0705

Upper Handle

Note: NLA

Variations

MTD 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 726-0135

Cap Speed Nut

$6.49

$

In Stock, Qty 9

0

8

MTD 731-0791

Control Handle Ass'y.-L.H.

Note: NLA

$

$

Not available

9

MTD 936-0140

Fl-Wash. .385" I.D. x .62"
(Superseded to 736-0140)

$

$

Not available

10

MTD 710-0796

Truss Mach. Hi-B 0 Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, Qty 6

0

11

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.49

$

In Stock, only 1 left!

0

12

MTD 731-0817A

Control Panel Half

$

$

Not available

13

MTD 928-0173

Pop Rivet .188" Dia.

$3.99

$

In Stock, Qty 10

0

14

MTD 946-0506

Clutch Cable 35" Lg.

$35.99

$

In Stock, only 1 left!

0

15

MTD 731-0816

Control Panel Half

Note: NLA

$

$

Not available

16

MTD 926-0100

Push Cap 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

17

MTD 720-0201A

Knob-3/8" Dia. Hole

$10.99

$

In Stock, Qty 6

0

18

MTD 915-0138

Roll Pin 1/8" Dia. x .63" Lg.

$4.49

$

In Stock, only 1 left!

0

19

MTD 784-5344

Chute Crank Ass'y.

$

$

Not available

20

MTD 710-1174

Curved Carriage Bolt 5/16-18 x 1.75" Lg.

$6.99

$

In Stock, Qty 20+

0

21

MTD 941-0475

Chute Crank Grommet

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0895

Hex AB-Tap Scr. 1/4 x .75" Lg.

Note: (Used w/One Quart Gas Tank)

$5.99

$

In Stock, Qty 20+

0

22

MTD 912-0287

Hex Nut 1/4-20 Thd.

Note: (Used w/Two Quart Gas Tank)

$4.49

$

In Stock, only 2 left!

0

23

MTD 784-5178A

Upper Chute Crank Brkt.

$

$

Not available

24

MTD 749-0713

Lower Handle

Note: NLA

$

$

Not available

25

MTD TC-570682A

Primer

$10.99

$

In Stock, Qty 6

0

26

MTD 731-0732

Plastic Plug

$

$

Not available

27

MTD TC-35062

Plastic Key

Note: (Tech. Eng.)

$3.99

$

In Stock, only 3 left!

0

28

MTD 784-5168B-0638

Dash Panel Ass'y.

Note: NLA

$

$

Not available

30

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD TC-32180C

Primer Hose-11" Lg.

$6.99

$

In Stock, Qty 8

0

33

MTD 726-0205

Hose Clamp-1/2" Dia.

$3.99

$

In Stock, Qty 20+

0

34

MTD 751-10349

Gas Line-12" Lg.

$

$

Not available

35

MTD 726-0225

Cable Tie-17.75" Lg.

Note: NLA

$

$

Not available

36

MTD 784-5341

Engine Support Brkt.

Note: NLA

$

$

Not available

37

MTD 784-5495

Engine Support

Note: NLA

$

$

Not available

38

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$5.99

$

Usually ships in 3-6 days

0

39

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 3 left!

0

42

MTD 956-0416B

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.

$10.99

$

In Stock, only 2 left!

0

44

MTD 753-05156

Idler Brake Brkt. Ass'y.

$

$

Not available

45

MTD 950-0589

Spacer .325" I.D. x .625" O.D. x .875"

$5.99

$

Usually ships in 3-6 days

0

46

MTD 756-0313

Fl-ldler w/Flanges 2.12" O.D.

$24.99

$

In Stock, Qty 8

0

47

MTD 948-0201

Spacer .635" I.D. x .89" O.D. x .57"

$

$

Not available

48

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

49

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

50

MTD 936-0231

Fl-Wash. .344" I.D. x 1.25"
(Superseded to 736-0231)

$

$

Not available

51

MTD 912-0296

Hex Patch L-Nut 3/8-24 Thd.

$2.99

$

In Stock, only 1 left!

0

52

MTD 954-0367

V-Belt

Note: (Used w/3/8" Pulley)

$29.99

$

In Stock, Qty 20+

0

52

MTD 954-0101A

V-Belt

Note: (Used w/1/2" Pulley)

$28.99

$

In Stock, Qty 20+

0

53

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$53.99

$

In Stock, only 1 left!

0

54

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

55

MTD 710-0451

Carriage Bolt 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

56

MTD 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 11

0

57

MTD 936-0326

Fl-Wash. .510" I.D. x 1.0" O.D.
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+

0

58

MTD 756-0550

3/8" "V"-Pulley 1/2-20 L.H. x 6"

$

$

Not available

58

MTD 756-0475

1/2" "V"-Pulley 1/2-20 L.H. x 6"

$74.99

$

Usually ships in 3-6 days

0

60

MTD 784-5174-0637

Bearing Cup

$

$

Not available

61

MTD 941-0600

Ball Brg. .669" I.D. x 1.574"

$23.99

$

In Stock, Qty 20+

0

62

MTD 784-5325C

21" Blower Hsg. Ass'y.

Note: NLA

Variations

MTD 784-5325C-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5325C-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5325C-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5325C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5325C-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

63

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.49

$

In Stock, only 2 left!

0

64

MTD 932-0357A

Extension Spring 1.12" Lg.
(Superseded to 732-0357A)

$3.99

$

In Stock, Qty 5

0

65

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

66

MTD 711-0848

Wheel Axle 1/2" O.D. x 20.6" Lg.

Note: NLA

$

$

Not available

67

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50"*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$3.99

$

In Stock, Qty 10

0

71

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

72

MTD 731-1033

Shave Plate

$44.99

$

In Stock, Qty 18

0

74

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62"

Note: (Spec.)

$3.99

$

In Stock, Qty 20+

0

75

MTD 984-04027A

Auger Ass'y. 21"

$182.99

$

In Stock, Qty 11

0

76

MTD 931-0780A

Rubber Spiral-L.H.

$25.99

$

In Stock, Qty 14

0

77

MTD 931-0782A

Rubber Paddle

$6.49

$

In Stock, Qty 10

0

78

MTD 936-0400

Fl-Wash. .218" I.D. x .62"
(Superseded to 736-0400)

$

$

Not available

79

MTD 710-04669

Hex Wash. B-Tap Scr. #10 x .62" Lg.

$3.49

$

In Stock, Qty 20+

0

80

MTD 931-0780A

Rubber Spiral-R.H.

$25.99

$

In Stock, Qty 14

0

81

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

84

MTD 914-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 19

0

85

MTD 936-0133

Fl-Wash. .406" I.D. x 1.25"
(Superseded to 736-0133)

$

$

Not available

86

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 2 left!

0

88

MTD 710-0773

Hex Tap Scr. 3/8-24 x .5" Lg.

$6.99

$

In Stock, Qty 5

0

89

MTD 936-0108

Fl-Wash. .510" I.D. x .75"

$6.49

$

In Stock, Qty 8

0

90

MTD 734-1176

Wheel & Tire Ass'y. 7" x 1.5"

Note: NLA

$

$

Not available

91

MTD 731-0915C

Lower Chute

$

$

Not available

92

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

93

MTD 751-0352

Fuel Tank-One Quart
(Superseded to TC-32660A)

$

$

Not available

94

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

95

MTD 720-04072A

Knob Handle.Ass'y.

$6.49

$

In Stock, Qty 20+

0

97

MTD 710-0276

Carriage Bolt 5/1 6-1 8 x 1"*

$3.99

$

In Stock, Qty 20+

0

98

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

99

MTD 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$3.99

$

In Stock, Qty 20+

0

100

MTD 936-0116

Fl-Wash. .635" I.D. x .93" O.D.

$6.49

$

In Stock, only 1 left!

0

101

MTD 936-0176

Fl-Wash. .25" I.D. x .93"
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

MTD OEM-390-697

3 HP 110V Electric Start

Note: NLA

$

$

Currently unavailable
