SB 410 (CMXGBAM1054541) (31AS6BEE793) - Craftsman Snow Blower (2021) Engine Drive Parts Diagram

Snow Blower

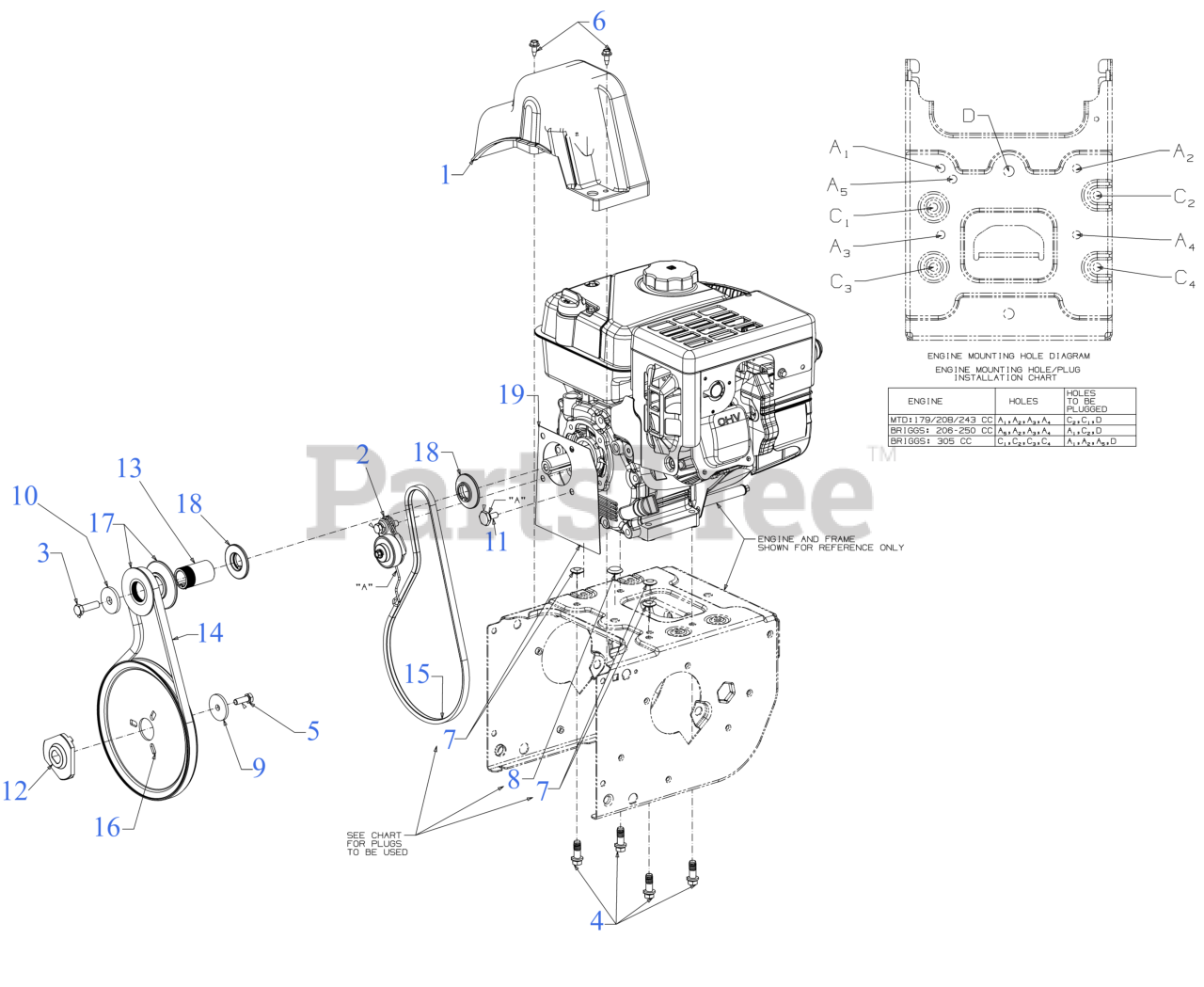

Engine Drive Parts Diagram

  • Title

1

MTD 631-05321

BELT COVER (SMALL BLOCK)

$24.99

$

In Stock, only 2 left!

0

1

MTD 710-04261

HEX SCREW #12-16 x .50

Note: (Not Shown)

$6.49

$

In Stock, only 4 left!

0

1

MTD 790-00689A

BELT KEEPER COVER BRACKET

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

2

IDLER ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

MTD 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

4

MTD 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, only 3 left!

0

5

MTD 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 4 left!

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 735-04099

PLUG-3/8 DIA ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

8

MTD 735-04100

PLUG-1/2 ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

9

MTD 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 5

0

10

MTD 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 17

0

11

MTD 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 7

0

12

MTD 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 1 left!

0

13

MTD 750-04303

PULLEY SPACER

$17.99

$

In Stock, only 1 left!

0

14

MTD 954-04050A

V-BELT .500 x 35.00LG

$27.99

$

In Stock, Qty 20+

0

15

MTD 954-04260

V-BELT 3L 34.18

$28.99

$

In Stock, only 4 left!

0

16

MTD 756-04109

AUGER PULLEY

$54.99

$

In Stock, only 3 left!

0

17

MTD 756-04113

HALF PULLEY 4L V x 2.6 OD
(Superseded to 756-06563)

$3.99

$

Usually ships in 3-6 days

0

18

MTD 756-04252

HALF PULLEY-3/8 V x 1.7160

$6.49

$

In Stock, only 3 left!

0

19

MTD 790-00289B

COVER PLATE
(Superseded to 790-00289B-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00289B-0637

COVER PLATE - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0
