SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2000) Drive & Fuel Tank Parts Diagram

Snow Boss Snow Thrower

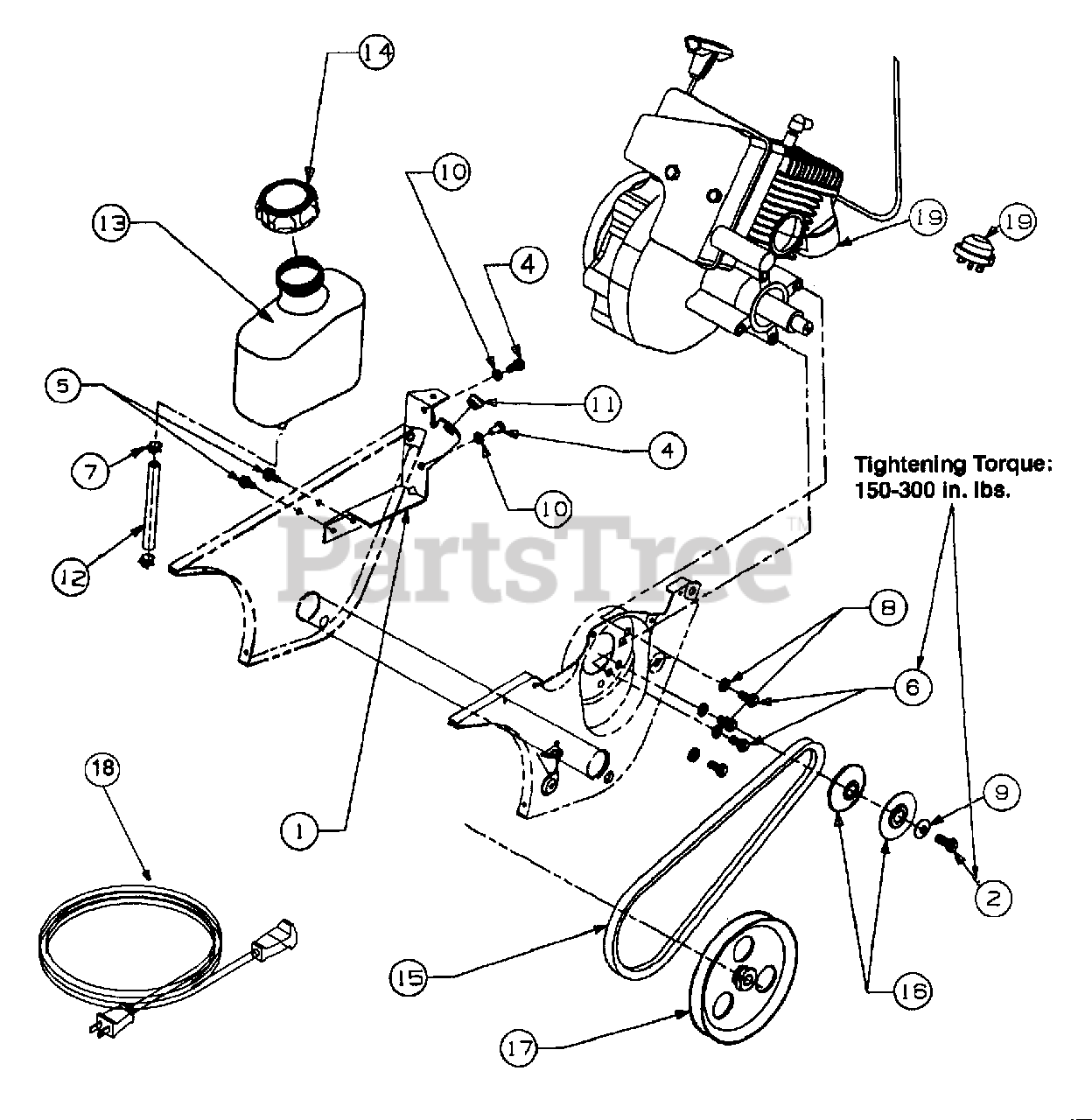

Drive & Fuel Tank Parts Diagram

  • Title

1

MTD 705-5139

Support Bracket, Gas Tank

Note: NLA

$

$

Not available

2

MTD 710-0157

Hex Cap Screw 5/16-24 x 0.75"

$3.99

$

In Stock, Qty 16

0

4

MTD 710-3013

Hex Screw 1/4-20 x 0.50"

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0896

Washer Screw 1/4-14 x 0.625"

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3025

Hex Cap Screw 5/16-24 x 0.625"

$3.99

$

In Stock, Qty 9

0

7

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

8

MTD 936-0119

Lock Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

10

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 12

0

11

MTD 941-0475

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

12

MTD 751-10349-16

Hose, Fuel Line - 16"

$18.99

$

In Stock, Qty 13

0

13

MTD 751-0540A

Fuel Tank - 2 qt.

$

$

Not available

14

MTD 751-10049

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

15

MTD 954-0101A

V-Belt

$28.99

$

In Stock, Qty 20+

0

16

MTD 956-0416B

V-Pulley Half

$10.99

$

In Stock, only 2 left!

0

17

MTD 756-0475

V-Pulley Half

$74.99

$

Usually ships in 3-6 days

0

18

MTD 629-0236

Cord, Extension

Note: For Model SB55

$

$

Not available

19

Obtain from engine manufacturer

$

$

Not available
