SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2001) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

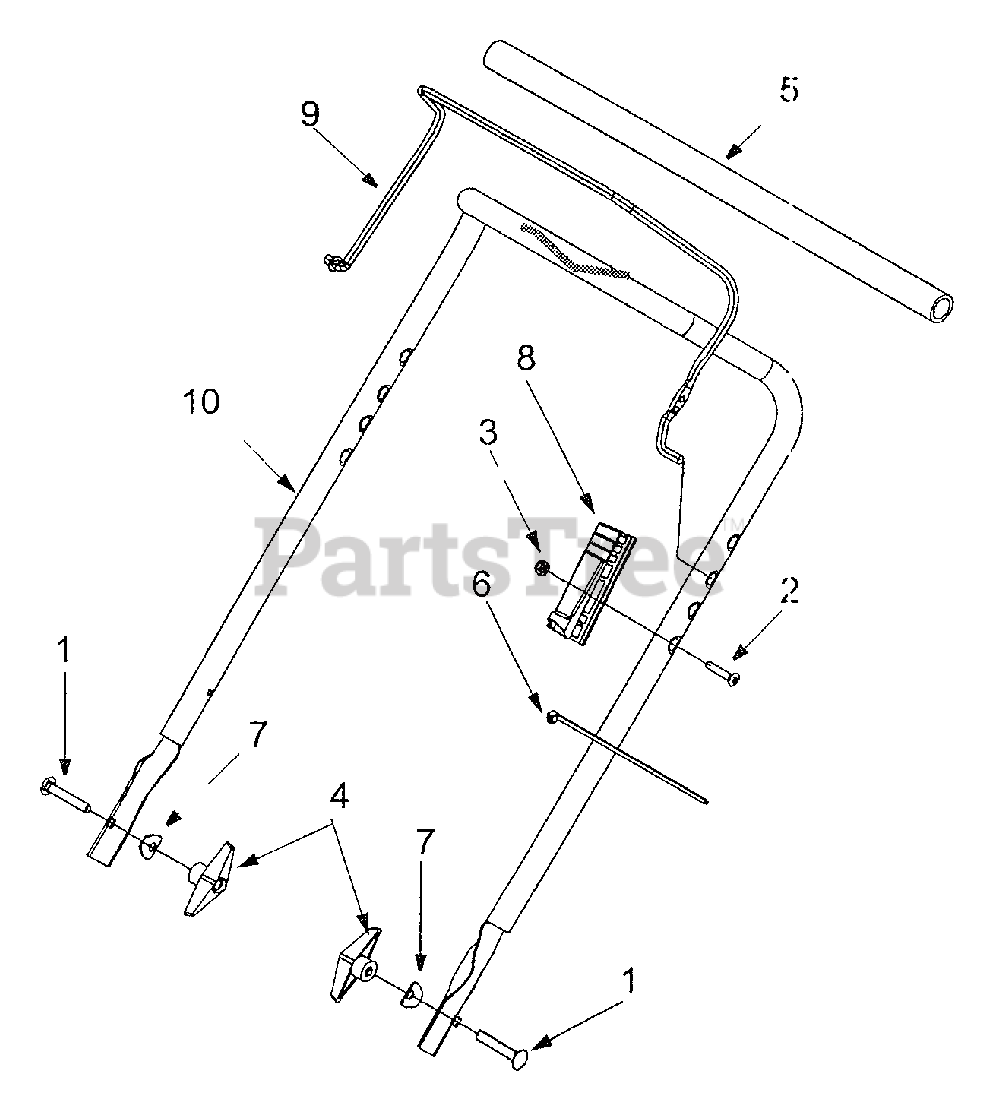

Handle Assembly Parts Diagram

  • Title

1

MTD 710-0487

Carriage Screw 5/16-18 x 2.0

$7.49

$

Usually ships in 3-6 days

0

2

MTD 710-1270

Oval C-Sunk Screw 1/4-20 x 1.31

$

$

Not available

3

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, only 2 left!

0

4

MTD 920-0284

Handle Knob
(Superseded to 720-0284)

$7.49

$

In Stock, Qty 20+

0

5

MTD 720-0295

Foam Grip Handle

$35.99

$

Usually ships in 3-6 days

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

8

MTD 746-0883

Cable Housing

$17.99

$

In Stock, Qty 5

0

9

MTD 747-0956

Auger Handle Gull Wing

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

747-0956-0637

MTD 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

747-0956-0638

MTD 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

10

MTD 749-0711A

Upper Handle Gull Wing

Note: NLA

Variations

749-0711A-0637

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

749-0711A-0638

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
