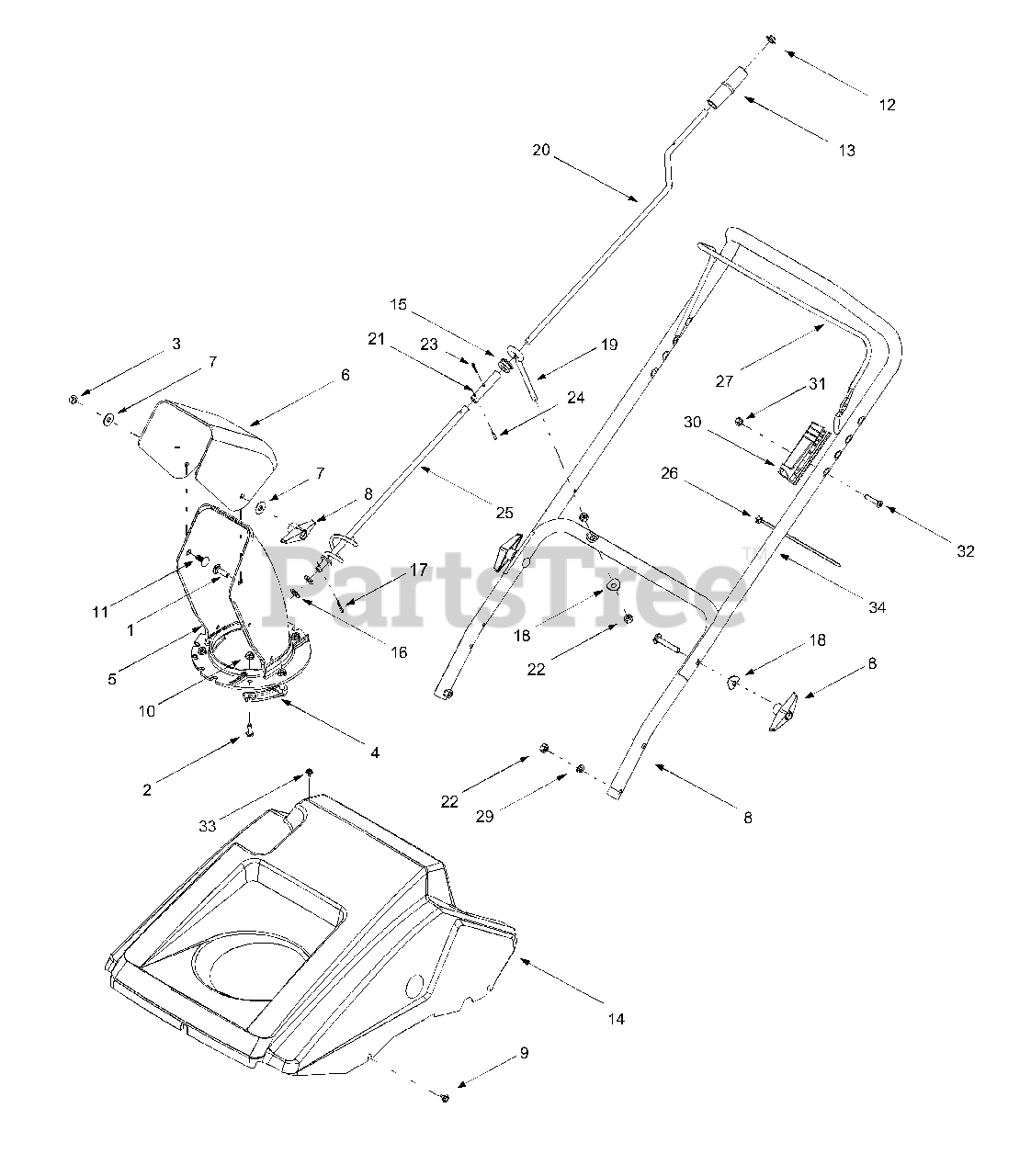

SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2002) Controls & Shroud Parts Diagram

Snow Boss Snow Thrower

Controls & Shroud Parts Diagram

  • Title

1

MTD 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-3015

Hex Cap Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

3

MTD 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

4

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

5

MTD 731-0915C

Lower Chute, 5.0

$

$

Not available

6

MTD 731-04426A

Upper Chute, 5.0
(Superseded to 731-04426C)

$20.99

$

In Stock, only 2 left!

0

7

MTD 936-0159

Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

8

MTD 920-0284

Wingnut Knob, 5/16-18
(Superseded to 720-0284)

$7.49

$

In Stock, Qty 20+

0

9

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

10

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

13

MTD 720-0201A

Knob, 1.0 x 3.2

$11.99

$

In Stock, only 2 left!

0

14

MTD 731-1551A

Shroud, Gray

Note: NLA

$

$

Not available

15

MTD 735-0234

Rubber Grommet, .44 x .94 x .50

$5.49

$

In Stock, Qty 10

0

16

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$4.49

$

In Stock, Qty 7

0

17

MTD 914-0104

Internal Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 17

0

18

MTD 936-0451

Saddle Washer, .320 x .93
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

19

MTD 747-0697

Eyebolt, .70

$8.49

$

Usually ships in 3-6 days

0

20

MTD 747-0737-0637

Upper Chute Crank

$47.99

$

Usually ships in 3-6 days

0

21

MTD 950-0785

Spacer, .382 x .50 x 1.12

$32.99

$

Usually ships in 3-6 days

0

22

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

23

MTD 914-0507

Cotter Pin, 3/32 x .75

$4.99

$

In Stock, Qty 17

0

24

MTD 915-0138

Rolled Pin, 1/8 x .63

$5.49

$

In Stock, only 2 left!

0

25

MTD 684-0126-0637

Chute Crank Assembly

$

$

Not available

26

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

27

MTD 747-0956

Auger Bail (Control Handle), Gullwing-style

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

28

MTD 749-0796B-0637

Lower Handle

$

$

Not available

29

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

30

MTD 746-0883

Control (Cable) Housing

$17.99

$

In Stock, Qty 14

0

31

MTD 712-0324

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, only 4 left!

0

32

MTD 710-1270

Machine Screw, 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

33

MTD 710-04669

Screw, #10-16 x .625

$3.99

$

In Stock, Qty 20+

0

34

MTD 749-0711A

Upper Handle, Gullwing-style

Note: NLA

Variations

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 720-0295

Foam Grip, 22"

Note: (Not included with handle)

$35.99

$

Usually ships in 3-6 days
