SB-510 (316-550-190) - White Outdoor Snow Boss Snow Thrower (1986) Wheel Chain Drive Assembly Parts Diagram

Snow Boss Snow Thrower

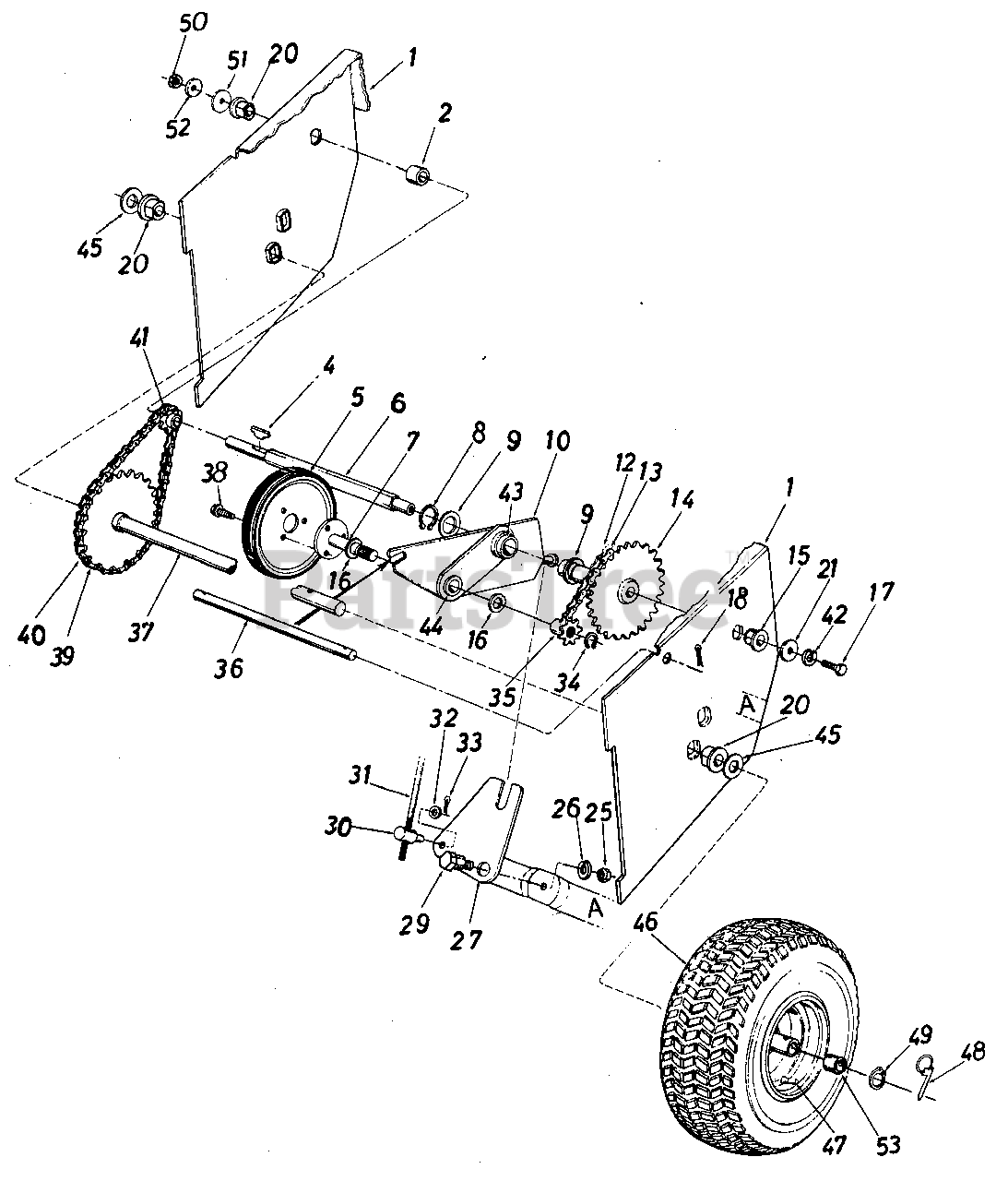

Wheel Chain Drive Assembly Parts Diagram

  • Title

1

MTD 05874

Frame Ass'y.

Note: NLA

$

$

Currently unavailable

2

MTD 750-0499

Spacer.50" I.D. x .75" O.D. x .78" Lg .

$22.99

$

Usually ships in 3-6 days

0

4

MTD 914-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.

$

$

Not available

5

MTD 05080AP

Friction Wheel Ass'y.

$33.99

$

In Stock, Qty 17

0

6

MTD 738-0496

Hex Shaft

Note: NLA

$

$

Not available

7

MTD 05883

Friction Wheel Mounting Plate Ass'y.

Note: NLA

$

$

Not available

8

MTD 916-0102

Snap Ring 1.00" Dia. Shaft
(Superseded to 716-0102)

$4.99

$

In Stock, Qty 20+

0

9

MTD 936-0163

Fl-Wash. 1.00" x 1 63" O.D. x .03
(Superseded to 736-0163)

$

$

Not available

10

MTD 05880

Sliding Bracket Ass'y.

Note: NLA

$

$

Not available

12

MTD 713-0285

#41 Chain 1/2" Pitch x 35 Links

Note: NLA

$

$

Not available

13

MTD 913-0723

Master Link for #41 Chain

$

$

Not available

14

MTD 713-0281

32 Teeth Sprocket Ass'y.

Note: NLA

$

$

Currently unavailable

15

MTD 941-0225

Hex Flange Brg. .630" I.D.

$6.99

$

In Stock, Qty 20+

0

16

MTD 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.49

$

In Stock, Qty 20+

0

17

MTD 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 19

0

20

MTD 941-0490

Flange Brg. w/ Flats .755" I.D.

$12.99

$

Usually ships in 3-6 days

0

21

MTD 936-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125
(Superseded to 736-0231)

$

$

Not available

25

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

27

MTD 05898

Shiftine Linkage Bracket

Note: NLA

$

$

Not available

29

MTD 938-0281

Shld. Bolt .625" Dia. x .170" Lg .
(Superseded to 738-0281)

$

$

Not available

30

MTD 711-0628

Adjustment Ferrule

Note: NLA

$

$

Not available

31

MTD 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

Note: NLA

$

$

Not available

32

MTD 936-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.49

$

In Stock, Qty 11

0

33

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 19

0

34

MTD 716-0397

Snap Ring .562" Dia. Shaft

$

$

Not available

35

MTD 713-0280

Sprocket 7 Teeth x .50" Pitch

Note: NLA

$

$

Not available

36

MTD 738-0497

Shaft .50" Dia. x 9.50" Lg.

Note: NLA

$

$

Currently unavailable

37

MTD 713-0323

32 Teeth Wheel Axle Ass'y.

Note: NLA

$

$

Not available

38

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

MTD 913-0287

#420 Chain 1/2" Pitch x 39 Links

$

$

Not available

40

MTD 913-0154

Master Link for #420 Chain

$

$

Not available

41

MTD 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

43

MTD 741-04488

Bearing

$8.99

$

In Stock, Qty 20+

0

44

MTD 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

$3.99

$

In Stock, Qty 20+

0

46

MTD 734-1253

Wheel Ass'y. Comp. 13 x 5.0 (550)

Note: NLA

$

$

Currently unavailable

46

MTD 734-0298-0901

Tire

$38.99

$

In Stock, Qty 5

0

47

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

48

MTD 714-0143A

Klick Pin

$6.49

$

In Stock, Qty 19

0

49

MTD 916-0101

Snap Ring .75 Dia.
(Superseded to 716-0101)

$3.49

$

Usually ships in 3-6 days

0

50

MTD 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

51

MTD 936-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .10
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075
(Superseded to 736-0253)

$

$

Not available

53

MTD 941-0401

Sleeve Brg.

$6.99

$

In Stock, Qty 14

0
