SB-524 (31AE600E382) - White Outdoor Snow Boss 24" Snow Thrower (1998) Wheel Assembly Parts Diagram

Snow Boss 24" Snow Thrower

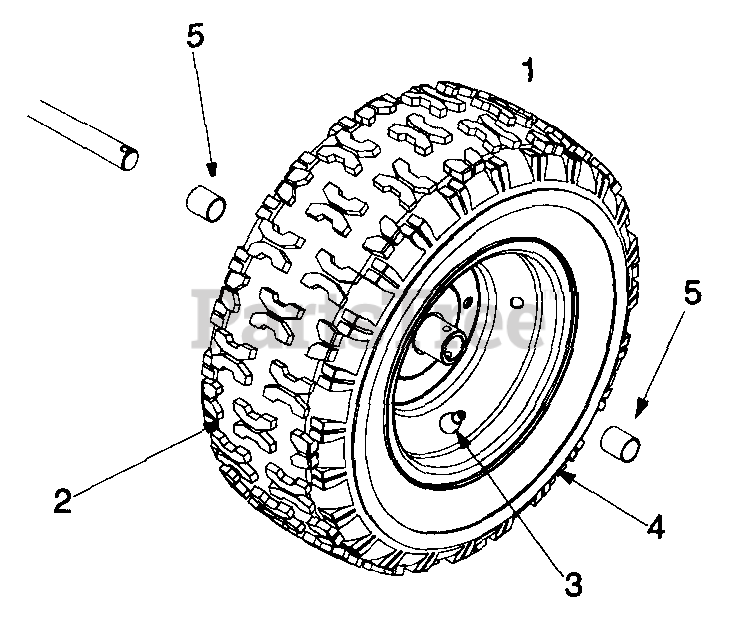

Wheel Assembly Parts Diagram

  • Title

1

MTD 734-1714A

13 x 5 Wheel Ass'y Complete

Variations

MTD 734-1714A-0911

No Longer Available WHL ASM 13 - Carlisle Gray (0911)

$

$

Not available

MTD 734-1714A-0915

No Longer Available WHL ASM 13 - Duro Gray (0915)

$

$

Not available

MTD 734-1714A-0931

No Longer Available WHEEL - Carlisle Beige (0931)

$

$

Not available

MTD 734-1714A-0951

No Longer Available WHEEL - Carlisle Yellow (0951)

$

$

Not available

$

$

2

MTD 734-1527

13 x 5 Tire Only

Variations

MTD 734-1527-0901

No Longer Available - Carlisle (0901)

$

$

Not available

MTD 734-1527-0905

No Longer Available TIRE-SNOW - Duro (0905)

$

$

Not available

$

$

3

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

4

MTD 734-1713

13 x 5 Rim Only

Variations

MTD 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1713-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1713-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1713-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

5

MTD 941-0401

Sleeve Bearing

$6.99

$

In Stock, Qty 14

0
