SB-55 (315E162-190) - White Outdoor Snow Boss Snow Thrower (1995) Gas Tank & Pulley Illustration Parts Diagram

Snow Boss Snow Thrower

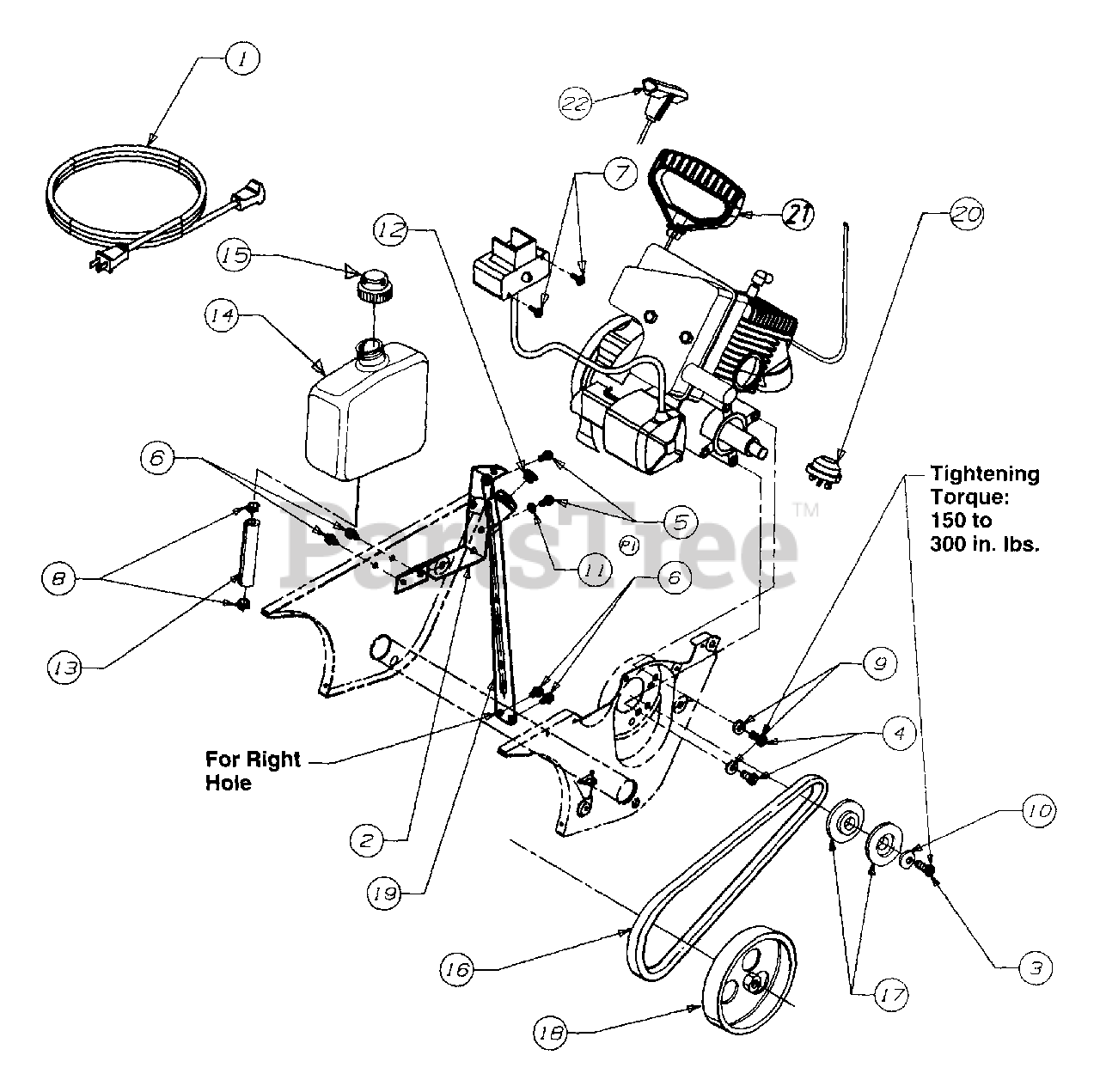

Gas Tank & Pulley Illustration Parts Diagram

  • Title

1

White Outdoor 629-0236

Cord, Ext. 120V (E162 Only)

$

$

Not available

2

White Outdoor 705-5139

Gas Tank Support Brkt.

$

$

Not available

3

White Outdoor 710-0157

Scr., Hex Cap 5/16-24, .750 Gr. 5

$3.99

$

In Stock, Qty 17

0

4

White Outdoor 710-0237

Scr., Hex Cap 5/16-24, .620 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0599

Scr., Hex Wash. 1/4-20, .500 Gr. 2

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0892

Scr., Hex Wash. 1/4 x .62 AB Tapp
(Superseded to 910-0892)

$

$

Not available

7

White Outdoor 710-1003

Scr., Hex B-Tapp Wash. #10-16 x .62 (E162 Only)
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

8

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0242

Wash., Bell. .345 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0329

Wash., Lock 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

12

White Outdoor 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

13

751-0535

Hose, Fuel Line 25 x 16"

$

$

Not available

14

White Outdoor 751-0540

Tank, 2 Quart
(Superseded to 751-0540A)

$

$

Not available

15

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

16

White Outdoor 754-0101A

V - Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

17

White Outdoor 756-0416B

V - Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

18

White Outdoor 756-0475

Pulley

$74.99

$

Usually ships in 3-6 days

0

19

White Outdoor 784-5603

Brace, Gas Tank

Variations

White Outdoor 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

21

White Outdoor 7519636

Handle, Mitten (E162)
(Superseded to 7510009636)

$

$

Not available

22

White Outdoor 7519630

Handle, Recoil (152)
(Superseded to 7510009630)

$

$

Not available
