SB-55 (316E162-190) - White Outdoor Snow Boss Snow Thrower (1996) Cover And Dash Parts Diagram

Snow Boss Snow Thrower

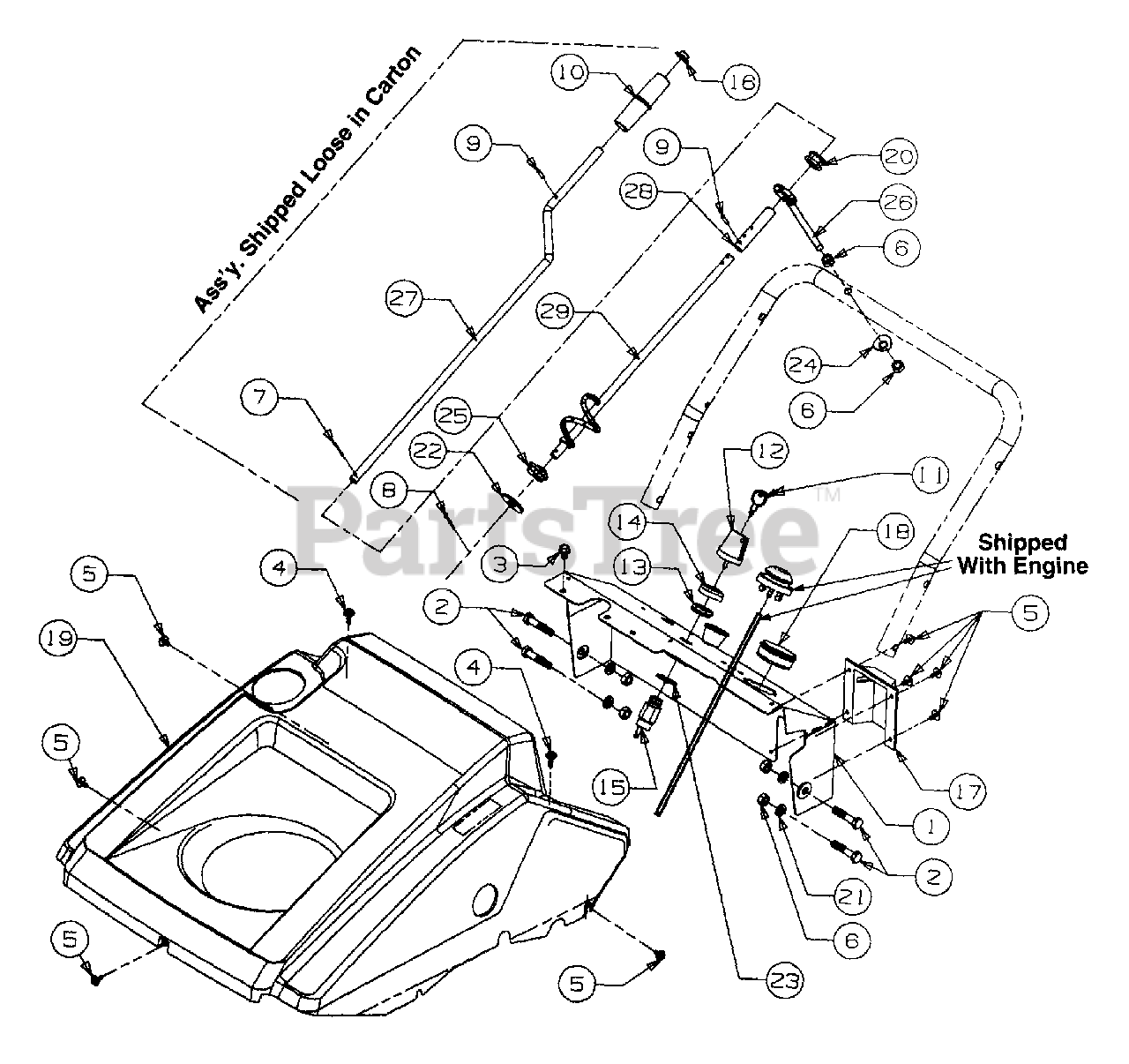

Cover And Dash Parts Diagram

  • Title

1

White Outdoor 684-0054

Dash
(Superseded to 684-0054A)

$

$

Not available

2

White Outdoor 710-0442

Screw - Hex Cap
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0653

Screw - Hex

$4.49

$

In Stock, Qty 16

0

4

White Outdoor 710-1003

Screw - Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1268

Screw - Hex

$3.99

$

In Stock, only 2 left!

0

6

White Outdoor 712-0267

Nut - Hex
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 714-0111

Pin - Cotter

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 714-0507

Pin - Cotter

$4.49

$

In Stock, only 4 left!

0

9

White Outdoor 715-0138

Pin Roll
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

10

White Outdoor 720-0201A

Knob - Chute Crank

$10.99

$

In Stock, Qty 6

0

11

White Outdoor 725-0201

Key - Ignition
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

12

White Outdoor 725-1341B

Key - Ignition with Logo

$9.99

$

In Stock, only 3 left!

0

13

White Outdoor 725-1346

Nut - Ignition Switch
(Superseded to 925-1346)

$

$

Not available

14

White Outdoor 725-1347

Cover - Ignition Switch

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 725-1425

Switch
(Superseded to 925-1425)

$33.99

$

In Stock, only 1 left!

0

16

White Outdoor 726-0100

Cap - Push

$3.99

$

In Stock, Qty 8

0

17

White Outdoor 731-1089

Cover - Choke
(Superseded to 731-1089A)

$

$

Not available

18

White Outdoor 731-1133

Plug - Insert
(Superseded to 731-1133C)

$

$

Not available

19

White Outdoor 731-1551

Shroud - Gray

$

$

Not available

20

White Outdoor 735-0234

Grommet - Rubber

$4.99

$

In Stock, only 3 left!

0

21

White Outdoor 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0133

Washer - Flat

$4.99

$

In Stock, Qty 7

0

23

White Outdoor 736-0225

Washer - Lock Internal

$3.99

$

In Stock, Qty 11

0

24

White Outdoor 736-0451

Washer - Saddle

$3.99

$

In Stock, only 2 left!

0

25

White Outdoor 741-0403

Bushing - Hex

$

$

Not available

26

White Outdoor 747-0697

Eyebolt - Chute Crank

$7.99

$

In Stock, only 1 left!

0

27

White Outdoor 747-0737

Crank - Upper
(Superseded to 747-0737-0637)

Variations

White Outdoor 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

28

White Outdoor 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

29

White Outdoor 784-5497

Crank - Lower

$

$

Not available
