SB-55 (316E162-190) - White Outdoor Snow Boss Snow Thrower (1996) Engine And V-Belt Parts Diagram

Snow Boss Snow Thrower

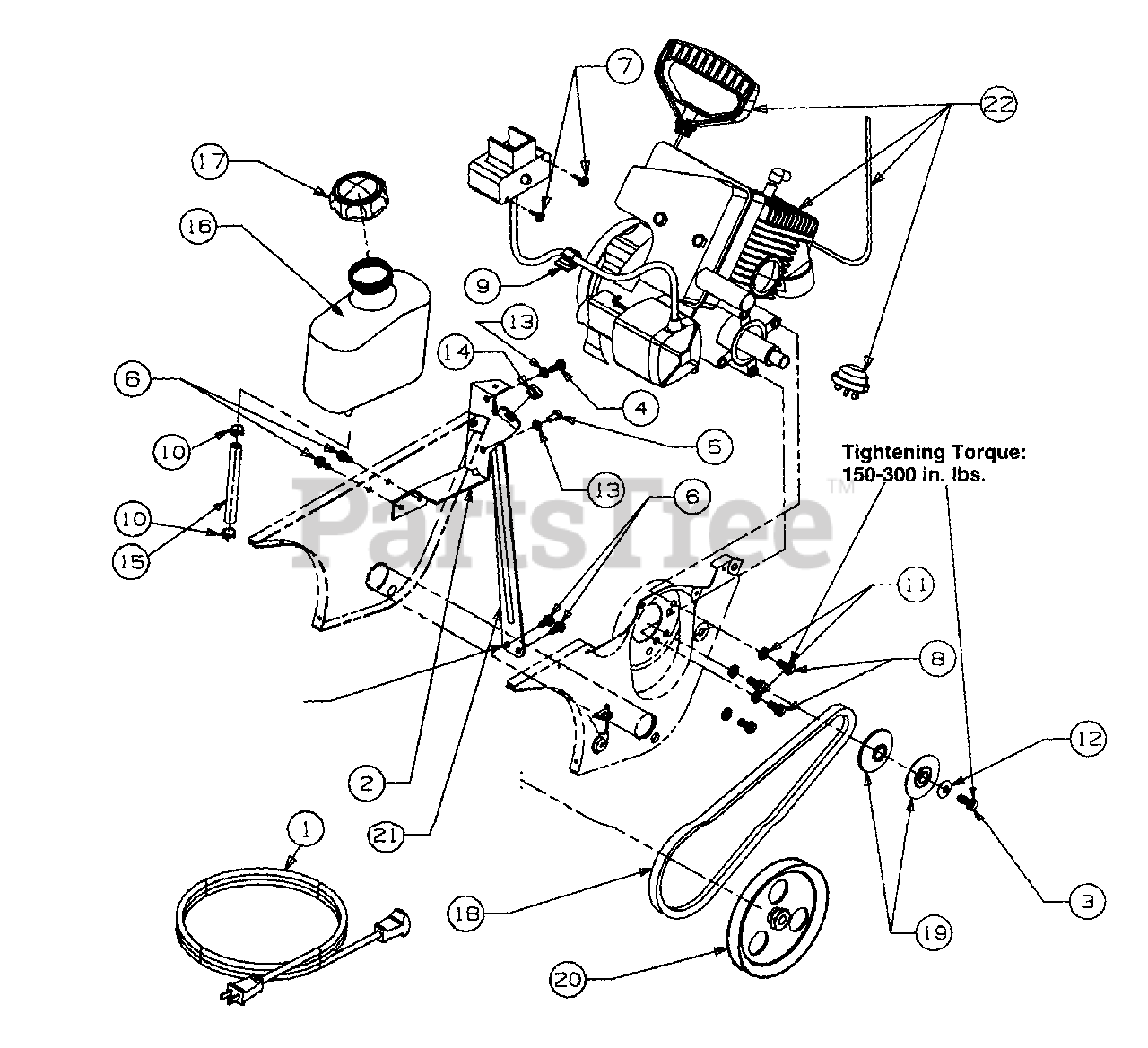

Engine And V-Belt Parts Diagram

  • Title

1

White Outdoor 629-0236

Cord - Extension 110V3M 2 Prong

Note: For model 316E162-190 Only

$

$

Not available

2

White Outdoor 705-5139

Bracket - Support Fuel Tank

$

$

Not available

3

White Outdoor 710-0157

Screw - Hex Cap

$3.99

$

In Stock, Qty 16

0

4

White Outdoor 710-0258

Screw - Hex Cap
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0289

Screw - Hex
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0896

Screw - Washer

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1003

Screw - Hex
(Superseded to 710-04669)

Note: For model 316E162-190 Only

$3.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3025

Screw - Hex Cap

$3.99

$

In Stock, Qty 9

0

9

White Outdoor 726-0152

Clamp - Mounting

Note: For model 316E162-190 Only

$

$

Not available

10

White Outdoor 726-0205

Clamp - Hose

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0242

Washer - Bell

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0329

Washer - Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

14

White Outdoor 741-0475

Bushing - Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 751-0535-16

Hose - Fuel Line 16"
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

16

White Outdoor 751-0540

Tank - Fuel 2 Qt.
(Superseded to 751-0540A)

$

$

Not available

17

White Outdoor 751-0603

Cap - Fuel
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

18

White Outdoor 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

19

White Outdoor 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

20

White Outdoor 756-0475

Pulley

$74.99

$

Usually ships in 3-6 days

0

21

White Outdoor 784-5603

Brace - Fuel Tank

Variations

White Outdoor 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

Engine

Note: Obtain from Manufacturer

$

$

Not available
