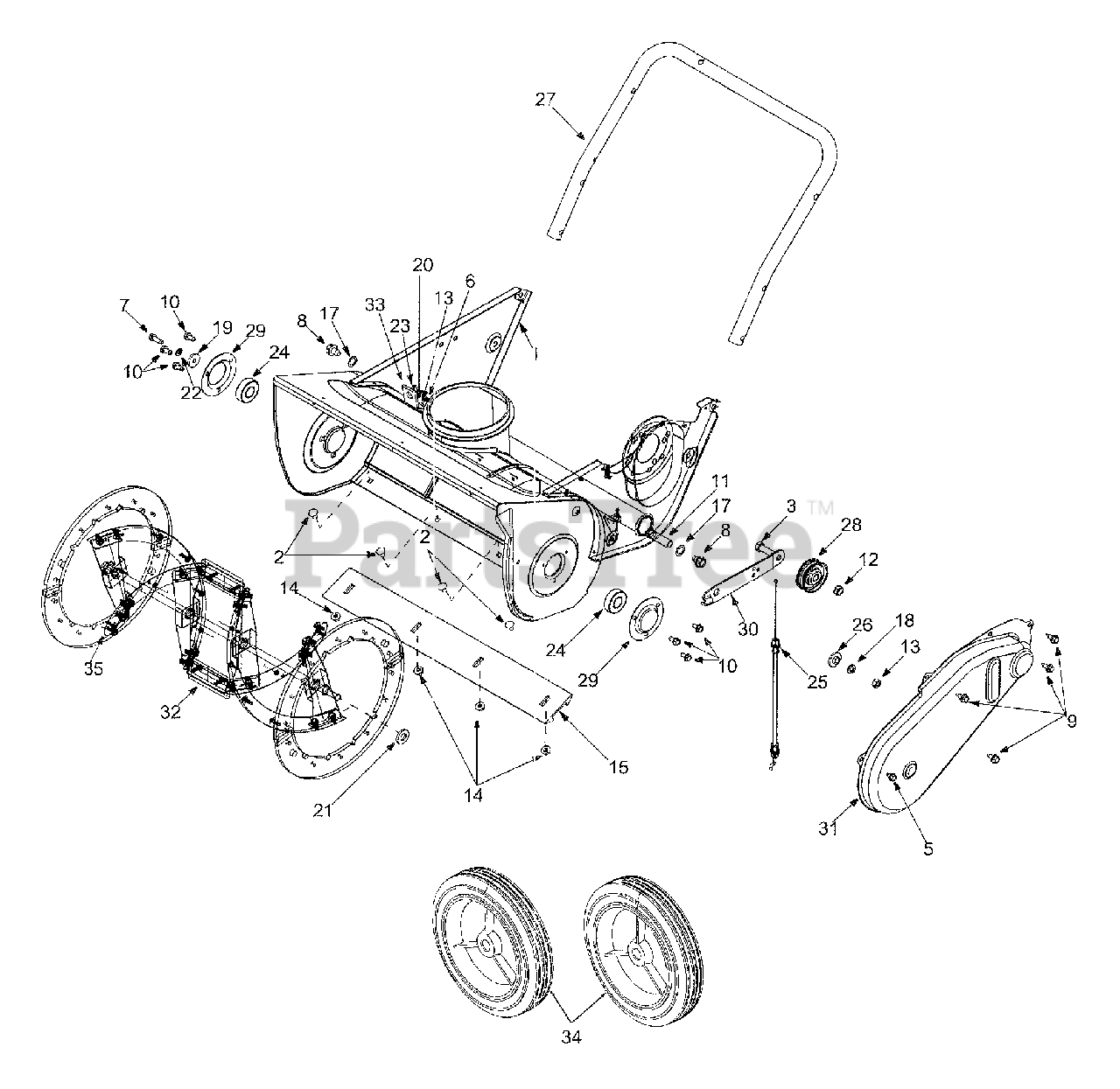

SB-55 (31AE162-190) - White Outdoor Snow Boss Snow Thrower (2001) General Assembly Parts Diagram

Snow Boss Snow Thrower

General Assembly Parts Diagram

  • Title

1

White Outdoor 684-0114

Auger Housing Assembly

Variations

White Outdoor 684-0114-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0114-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0114-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0114-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0114-0662

No Longer Available No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0114-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0114-0684

No Longer Available - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 684-0114-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 684-0114-0709

HOUSING ASSY-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

2

White Outdoor 710-0167

Carriage Screw 1/4-20 x 0 5"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0191

Special Screw 3/8-24 x 1 25" Gr8

$4.49

$

In Stock, Qty 8

0

?4

White Outdoor 710-0323

Truss Mach. Screw 5/16-18 x 0.75"

$4.49

$

In Stock, only 2 left!

0

5

White Outdoor 710-0352

Hex Screw 1/4-14 x 0.375"

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0451

Carriage Bolt 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0642

Hex TT Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0773

Hex TT Screw 3/8-16 x 0.5"

$6.99

$

In Stock, Qty 5

0

9

White Outdoor 710-0896

AB Screw 1/4-14 x 0.625"

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-1005

B Screw 1/4-14 x 0.5"
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 711-0848A

Axle Tube
(Superseded to 753-05480)

$

$

Not available

12

White Outdoor 712-0116

Jam Nut

$4.49

$

In Stock, Qty 7

0

13

White Outdoor 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 731-1033

Shave Plate

$44.99

$

In Stock, Qty 18

0

?16

White Outdoor 732-0357A

Extension Spring

$3.99

$

In Stock, Qty 5

0

17

White Outdoor 736-0108

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0176

Flat Washer

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0326

Flat Washer

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

23

White Outdoor 741-0475

Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

25

White Outdoor 746-0910A

Clutch Cable
(Superseded to 946-0910A)

$27.99

$

In Stock, Qty 16

0

26

White Outdoor 748-0234

Spacer

$4.49

$

In Stock, Qty 10

0

27

White Outdoor 749-0796

Lower Handle

Variations

White Outdoor 749-0796-0637

HANDLE-LWR 21"S/T - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 756-0313

Idler Flat

$24.99

$

In Stock, Qty 7

0

29

White Outdoor 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

White Outdoor 784-5174-0637

BEARING CUP-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 784-5175B

Idler Bracket Brake
(Superseded to 753-05156)

Variations

White Outdoor 784-5175B-0637

KIT:IDLER SINGLE S - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

White Outdoor 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

White Outdoor 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$53.99

$

In Stock, only 1 left!

0

32

White Outdoor 784-5485

Auger Assembly
(Superseded to 984-04027A)

Variations

White Outdoor 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$182.99

$

In Stock, Qty 11

0

White Outdoor 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$182.99

$

In Stock, Qty 11

0

White Outdoor 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$182.99

$

In Stock, Qty 11

0

$182.99

$

In Stock, Qty 11

0

33

White Outdoor 784-5720

Bracket Chute Crank
(Superseded to 784-5720-0637)

Variations

White Outdoor 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 734-1797

Wheel Assembly Grey

$

$

Not available

35

White Outdoor 753-0613

Auger Rubber Replacement

$124.99

$

In Stock, only 4 left!

0
