SB-550 (31AD6J3D190) - White Outdoor Snow Boss Snow Thrower (2001) Frame & Drive Assembly Parts Diagram

Snow Boss Snow Thrower

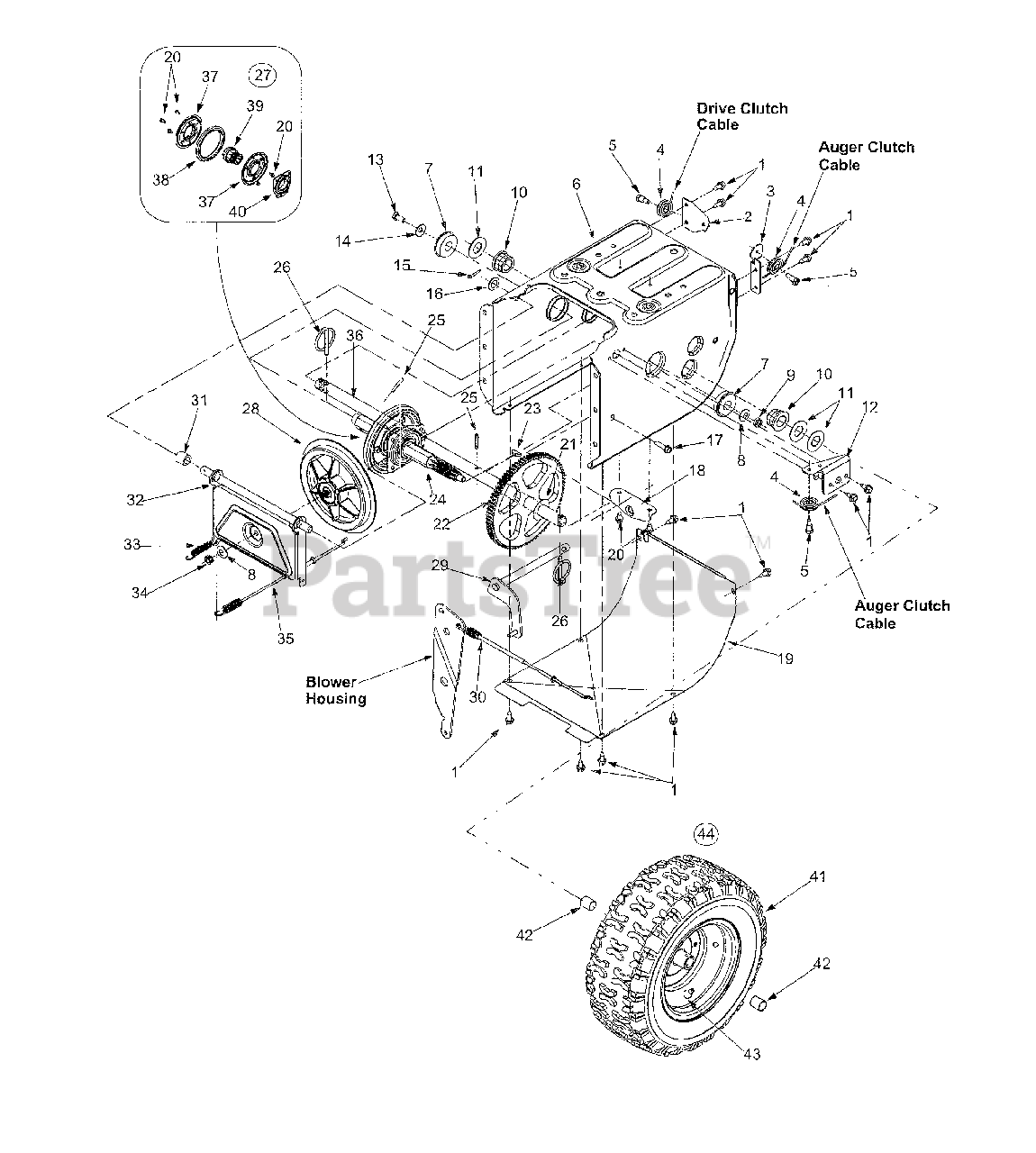

Frame & Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-1652

Hex Screw

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

White Outdoor 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

3

White Outdoor 784-5687A

Auger Clutch Cable Bracket
(Superseded to 784-5687A-0637)

Variations

White Outdoor 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 756-0625

Roller Cable

$8.99

$

In Stock, Qty 20+

0

5

White Outdoor 738-0924

Hex Screw 1/4-28
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

6

White Outdoor 784-5630A

Frame Assembly

Variations

White Outdoor 784-5630A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-5630A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5630A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5630A-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5630A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-5630A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

White Outdoor 741-0563

Ball Bearing
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

8

White Outdoor 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0116

Lock Jam Nut

$4.49

$

In Stock, Qty 7

0

10

White Outdoor 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$11.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0188

Flat Washer

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 784-5689A

Front Support Guide: Bracket
(Superseded to 784-5689A-0637)

Variations

White Outdoor 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

13

White Outdoor 710-0538

Lock Hex Screw

$4.49

$

In Stock, Qty 9

0

14

White Outdoor 736-0242

Bell Washer .340 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

16

White Outdoor 736-0160

Flat Washer .536 ID x .930 OD

$3.99

$

In Stock, only 2 left!

0

17

White Outdoor 710-0809

Hex Washer Scr 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

18

White Outdoor 784-5590

Frame Shift Bracket:

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

19

White Outdoor 784-5638

Frame Cover
(Superseded to 784-5638A)

Variations

White Outdoor 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

White Outdoor 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

White Outdoor 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

White Outdoor 710-0599

Hex Washer Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0351

Flat Washer .760 ID x .50 OD

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 717-1445

Gear

$100.99

$

Usually ships in 3-6 days

0

23

White Outdoor 714-0126

Key

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 717-1444

7-Tooth Shaft
(Superseded to 917-04094)

$90.99

$

In Stock, only 2 left!

0

25

White Outdoor 715-0249

Roll Pin
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

26

White Outdoor 714-0143

Click Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 19

0

27

White Outdoor 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

28

White Outdoor 656-0012A

Friction Disc Wheel
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

29

White Outdoor 684-0013B

Wheel Shift Rod Assembly
(Superseded to 684-04243)

$

$

Not available

30

White Outdoor 746-0897

Drive Cable
(Superseded to 946-0897)

$23.99

$

In Stock, Qty 20+

0

31

White Outdoor 748-0190

Spacer

$5.99

$

In Stock, only 1 left!

0

32

White Outdoor 684-0021

Friction Wheel Bracket Ass'y
(Superseded to 984-0021-0637)

Variations

White Outdoor 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 732-0264

Extension Spring
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 712-0711

Jam Nut, 3/8-24

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 746-0898

Drive Cable
(Superseded to 946-0898)

$25.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-0869

Axle

$130.99

$

Usually ships in 3-6 days

0

37

White Outdoor 784-5617A

Friction Plate
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

38

White Outdoor 735-0243

Friction Wheel
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0

39

White Outdoor 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

40

White Outdoor 618-0063A

Friction Wheel Bearing

$85.99

$

Usually ships in 3-6 days

0

41

White Outdoor 734-1732

Tire Only, 13 x 4

Note: (Model 550)

Variations

White Outdoor 734-1732-0901

SNOW HOG TIRE 13 X 4 - Carlisle (0901)

$139.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$139.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1732-0905

SNOW HOG TIRE 13 X 4 - Duro (0905)

$139.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1859

Tire Only, 15 x 5
(Superseded to 734-1859-0901)

Note: (Model 750)

Variations

White Outdoor 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

42

White Outdoor 741-0401

Sleeve Bearing
(Superseded to 941-0401)

$6.99

$

In Stock, Qty 14

0

43

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 634-0114

Wheel Assembly

Note: (Model 550)

Variations

White Outdoor 634-0114-0911

WHEEL ASM-COMP 13X - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0114-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0114-0912

WHEEL ASM-COMP 13X - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0114-0915

No Longer Available WHL ASSY 13 X 4 - Duro Gray (0915)

$

$

Not available

White Outdoor 634-0114-0935

No Longer Available WHEEL ASSY-CO 4.10 - Duro Beige (0935)

$

$

Not available

White Outdoor 634-0114-0941

No Longer Available WHL ASSY 13 X 4 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0114-0942

No Longer Available WHL ASSY 13 - Dico Yellow (0942)

$

$

Not available

White Outdoor 634-0114-0945

No Longer Available WHL ASSY 13 X 4 - Duro Yellow (0945)

$

$

Not available

White Outdoor 634-0114-0981

No Longer Available WHEEL ASSY COMP 4. - Carlisle Green (0981)

$

$

Not available

White Outdoor 634-0114-0985

No Longer Available WHEEL ASSY COMP 4. - Duro Green (0985)

$

$

Not available

$

$

White Outdoor 634-0140

Wheel Assembly

Note: (Model 750)

Variations

White Outdoor 634-0140-0911

WHEEL ASM. COMP. - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0140-0931

WHEEL ASM. COMP. - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0140-0941

WHEEL ASM. COMP. - Carlisle Yellow (0941)

$

$

Not available

$

$
