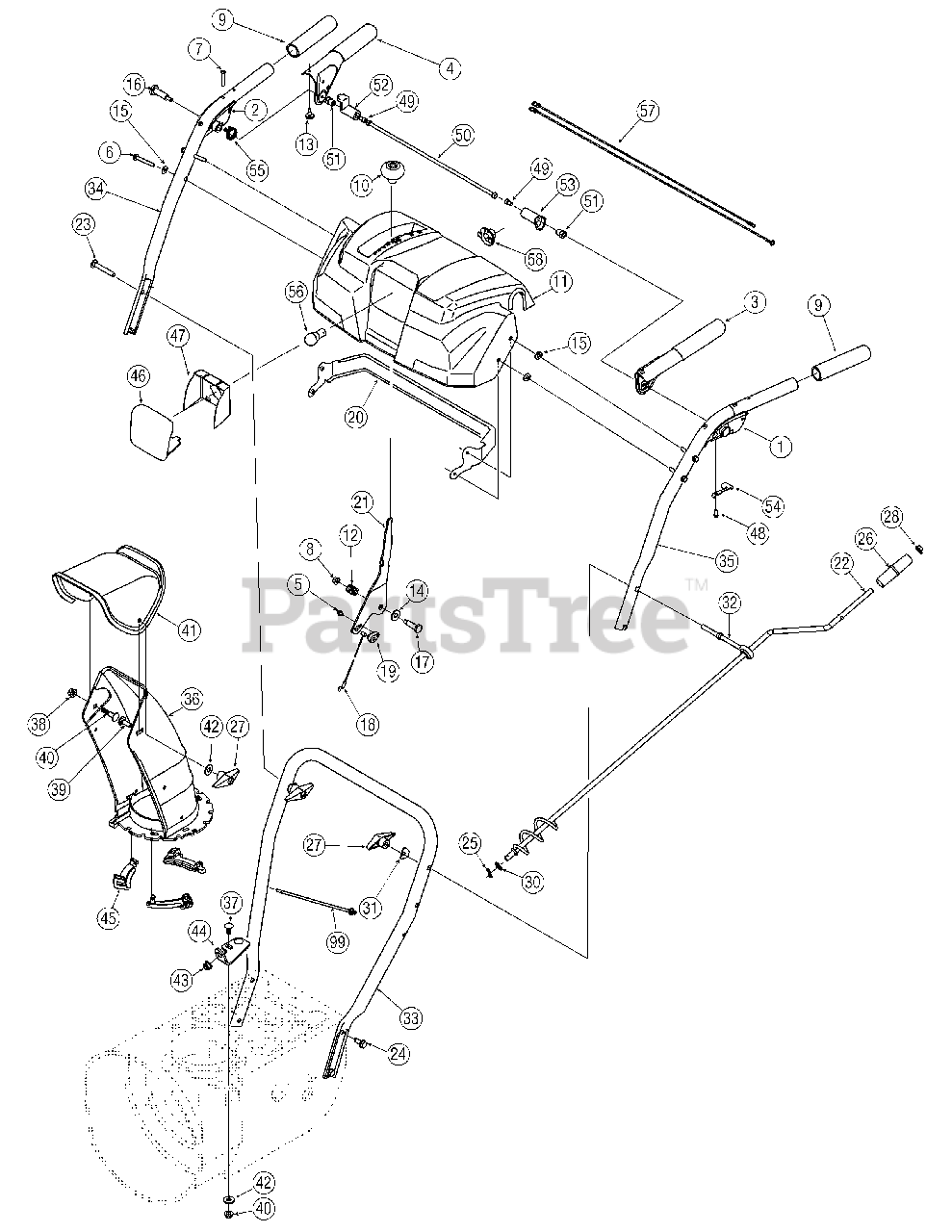

SB-624 (31AE6BHE791) - White Outdoor Snow Boss Snow Thrower (2005-2)

Snow Boss Snow Thrower

SB-624 (31AE6BHE791) - White Outdoor Snow Boss Snow Thrower (2005-2) > Parts Diagrams (3) > Handle Assembly

  • Title
631-04133

1

Handle Assembly, Lock, LH

Part# 631-04133 (Superseded to 631-04133A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.77

631-04134A

2

Handle Assembly, Lock, RH

Part# 631-04134A (Superseded to 631-04134B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.77

684-04105A

3

Handle Ass’ y, Engagement LH

Part# 684-04105A (Superseded to 684-04105C)

OEM Warranty Repair Part for White Outdoor

Not available

684-04106A

4

Handle Ass’y, Engagement, RH

Part# 684-04106A (Superseded to 684-04106C)

OEM Warranty Repair Part for White Outdoor

Not available

710-0224

5

Screw, #10-16, 0.500

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

710-1026

6

Screw, 1/4-20, 1.750

Part# 710-1026

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

710-1233

7

Screw, Machine, #10-24, 1.375

Part# 710-1233

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

712-04064

8

Nut, Flange Lock, 1/4-20, Nylon

Part# 712-04064

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

720-0274

9

Grip, 1.0 ID x 5.0

Part# 720-0274

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.00

720-04039

10

Knob, Shift

Part# 720-04039

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

731-05298

11

Handle Panel, H-Style

Part# 731-05298 (Superseded to 931-05298)

OEM Warranty Repair Part for White Outdoor

Not available

732-0193

12

Spring, .39 x .60 x .88

Part# 732-0193

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.31

735-0199A

13

Bumper, Rubber, .62 OD x .22

Part# 735-0199A (Superseded to 935-0199A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.53

736-0262

14

Washer, Flat, .385 x .870

Part# 736-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

736-0463

15

Washer, Flat, .25 x .630 x .0515

Part# 736-0463 (Superseded to 936-0463)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.13

738-04122

16

Screw, Shoulder, .43 x 1.34, 1/4-20"

Part# 738-04122 (Superseded to 738-04348)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.52

738-04125

17

Screw, Shoulder, .374 Dia. X 1.05

Part# 738-04125

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

746-04227

18

Cable, Speed Selector

Part# 746-04227 (Superseded to 746-04227A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.02

746-0605

19

Barrel Holder, Cable, LH

Part# 746-0605 (Superseded to 946-0605)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.13

790-00140

20

Bracket, Panel

Part# 790-00140

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK

BRACKET-PANEL

Part# POWDER BLACK

OEM Warranty Repair Part for White Outdoor

Not available

790-00203

21

Lever, Shift

Part# 790-00203

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shift Lever

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

684-04104

22

Crank Assembly, Chute

Part# 684-04104

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Chute Crank Assembly, Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $43.92

710-0449

23

Screw, Carriage, 5/16-18, 2.25

Part# 710-0449 (Superseded to 710-0572)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-1260A

24

Screw, 5/16-18, 0.75, Gr5

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

714-0104

25

Pin, Cotter, .072 x 1.13

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0201A

26

Crank Knob, 1.0 Dia. x 3.2 Black

Part# 720-0201A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.73

720-0284

27

Knob Assembly, Wing Nut, 5/16-18

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for White Outdoor

Not available

726-0100

28

Cap, Push, 3/8 Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for White Outdoor

Not available

735-0234

29

Grommet, .44 ID x .94 OD x .50

Part# 735-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.60

736-0185

30

Washer, Flat, .375 x .738 x .063

Part# 736-0185 (Superseded to 936-0185)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0451

31

Washer, Saddle, 320 x .93 x .060

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

747-04263

32

Eye Bolt, Chute Crank

Part# 747-04263

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.66

749-04138

33

Handle, Lower

Part# 749-04138

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Lower Handle, Snow

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $67.23

MTD/TROY-BILT RED (0638)

Lower Handle, Snow

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $67.23

749-04141

34

Handle, Upper, RH

Part# 749-04141

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.52

Variations

POWDER BLACK (0637)

Right Upper Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-RH UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

749-04142

35

Handle, Upper, LH

Part# 749-04142

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-UPPER LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-UPPER LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

731-04912A

36

Chute, Lower, 5.0 Diameter

Part# 731-04912A (Superseded to 731-04912B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $31.27

710-0276

37

Bolt, Carriage, 5/16-18, 1.0

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-04063

38

Nut, Flange Lock, 5/16-18, Nylon

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-04071

39

Bolt, Carriage, 5/16-18, 1.0

Part# 710-04071

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.16

710-0451

40

Bolt, Carriage, 5/16-18, .750

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

731-04426A

41

Chute, Upper, w/ Label

Part# 731-04426A

OEM Warranty Repair Part for White Outdoor

Not available

736-0159

42

Washer.349 ID x .879 OD x.063

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Not available

741-0475

43

Bushing, Plastic, .380

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

784-5647

44

Bracket, Chute Crank

Part# 784-5647

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Chute Crank Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.03

731-04869

45

Flange Keeper, Chute

Part# 731-04869 (Superseded to 731-04869A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

731-05320

46

Lens

Part# 731-05320

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.95

777X41803

47

Reflector Label, Lens

Part# 777X41803

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.21

710-04326

48

Screw, #8-16 x 0.50

Part# 710-04326

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-04354

49

Screw, 1/4-20 x.375

Part# 710-04354

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

711-04287

50

Pivot Rod

Part# 711-04287 (Superseded to 753-04882C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.90

712-04081A

51

Shoulder Nut, 1/4-20

Part# 712-04081A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.19

731-04894A

52

Lock Plate

Part# 731-04894A (Superseded to 731-04894D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.71

731-04896A

53

Clutch Lock Cam

Part# 731-04896A (Superseded to 731-04896B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.29

732-04219

54

Clutch Lock Spring

Part# 732-04219 (Superseded to 732-04219C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

732-04238

55

Torsion Spring

Part# 732-04238 (Superseded to 732-04238B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.74

725-04213

56

Lamp

Part# 725-04213 (Superseded to 925-04213)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

725-04214

57

Wire Harness

Part# 725-04214

OEM Warranty Repair Part for White Outdoor

Not available

725-1649

58

Light Socket

Part# 725-1649

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.26
