SB-630 (31AH5MLH590) - White Outdoor Snow Boss Snow Thrower (2006) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

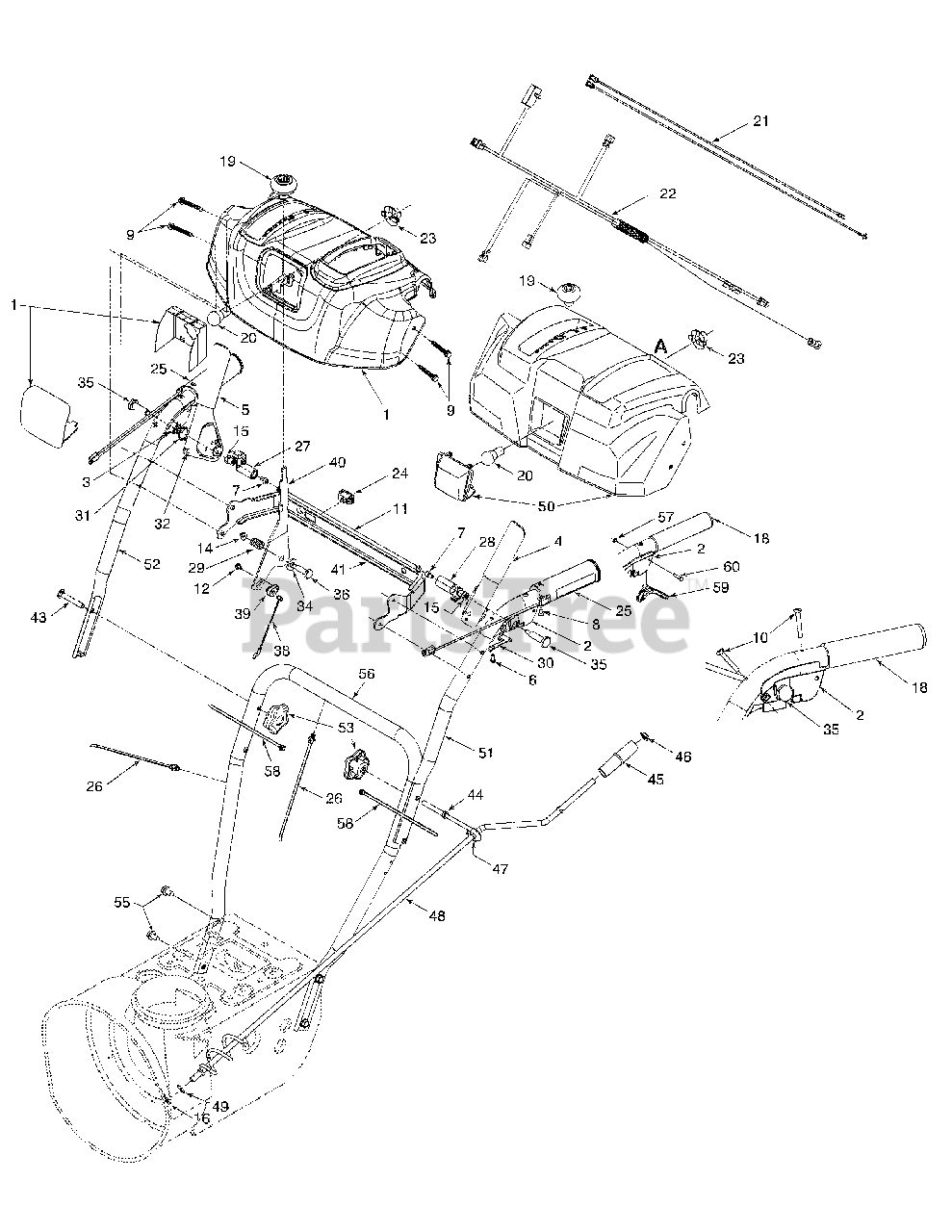

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 631-04180

Handle Panel Ass’y - Yellow

$77.99

$

Usually ships in 3-6 days

0

1

White Outdoor 631-04185

Handle Panel Ass’y - Black

$78.99

$

Usually ships in 3-6 days

0

1

White Outdoor 631-04183

Handle Panel Ass’y-Black w/Chute Control
(Superseded to 931-04183)

$101.99

$

Usually ships in 3-6 days

0

2

White Outdoor 631-04133

LH Clutch Lock Handle Ass’y
(Superseded to 631-04133A)

$14.99

$

Usually ships in 3-6 days

0

3

White Outdoor 631-04134A

RH Clutch Lock Handle Ass’y
(Superseded to 631-04134B)

$14.99

$

In Stock, only 3 left!

0

4

White Outdoor 684-04105A

Engagement Handle Assembly LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

5

White Outdoor 684-04106B

Engagement Handle Assembly RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

6

White Outdoor 710-04326

Screw #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

White Outdoor 710-04354

Screw 1/4-20 x .375

$3.99

$

In Stock, Qty 18

0

8

White Outdoor 710-0837

Oval HD C-Sunk Scr #10 x 5/8

$4.49

$

In Stock, Qty 11

0

9

White Outdoor 710-04586

Hex TT-Tap Scr 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 711-04287

Pivot Rod
(Superseded to 753-04882C)

$39.99

$

In Stock, only 2 left!

0

12

White Outdoor 710-0224

Screw #10-16 x .50
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

14

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-04081A

Hex Shoulder Nut 1/4-20

$6.99

$

Usually ships in 3-6 days

0

16

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 720-0274

Grip

$10.99

$

In Stock, Qty 6

0

19

White Outdoor 720-04039

Shift Knob

$9.99

$

In Stock, Qty 5

0

19

White Outdoor 720-04045

Shift Knob - Yellow

$

$

Not available

20

White Outdoor 725-04213

Lamp #1295 (w/heated grips)
(Superseded to 925-04213)

Note: with heated grips only

$4.99

$

In Stock, only 3 left!

0

20

White Outdoor 725-1629

Lamp
(Superseded to 925-1629)

$10.99

$

In Stock, Qty 14

0

21

White Outdoor 725-04214

Wire Harness

$

$

Not available

22

White Outdoor 725-04216A

Heated Grip Wire Harness
(Superseded to 725-04216B)

Note: with heated grips only

$70.99

$

Usually ships in 3-6 days

0

23

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

24

725-4393

Switch

$

$

Not available

25

White Outdoor 725-1757

Heated Grip

Note: with heated grips only

$103.99

$

Usually ships in 3-6 days

0

26

White Outdoor 726-0470

Cable Tie 19 x 8.39" (w/plug)

$4.49

$

Usually ships in 3-6 days

0

26

White Outdoor 725-0157

Cable Tie (w/heated grips)

Note: with heated grips only

$3.49

$

In Stock, only 4 left!

0

27

White Outdoor 731-04894B

Lock Plate
(Superseded to 731-04894D)

$4.99

$

In Stock, only 4 left!

0

28

White Outdoor 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

29

White Outdoor 732-0193

Compression Spring .38 ID x .88 Lg

$4.49

$

In Stock, Qty 8

0

30

White Outdoor 732-04219

Spring: Clutch Lock
(Superseded to 732-04219C)

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

32

White Outdoor 735-0199A

Rubber Bumper

$6.99

$

In Stock, Qty 16

0

34

White Outdoor 736-0267

Flat Washer .38 ID x .87 OD x .09

$4.49

$

In Stock, only 1 left!

0

35

White Outdoor 738-04122

Shoulder Screw 1/4-20 x 1.345
(Superseded to 738-04348)

$3.49

$

In Stock, only 4 left!

0

36

White Outdoor 738-04125

Shoulder Screw .374 Dia. x 1.05 Lg.

$4.49

$

In Stock, Qty 18

0

38

White Outdoor 746-04227

Selector Speed Cable
(Superseded to 746-04227A)

$21.99

$

In Stock, only 1 left!

0

39

White Outdoor 746-0605

Cable Barrel Holder
(Superseded to 946-0605)

$3.99

$

In Stock, Qty 17

0

40

White Outdoor 790-00203

Shift Lever
(Superseded to 790-00203-0637)

Variations

White Outdoor 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 790-00248

Panel Support
(Superseded to 790-00248E-0637)

Variations

White Outdoor 790-00248-0637

Handle Support Bracket - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

$22.99

$

In Stock, only 2 left!

0

43

White Outdoor 710-0449

Carriage Bolt 5/16-18 x 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

44

White Outdoor 747-04263

Chute Crank Eye Bolt Special

$8.99

$

In Stock, only 3 left!

0

45

White Outdoor 720-0201A

Knob 1.0 x 3.2

$10.99

$

In Stock, Qty 6

0

46

White Outdoor 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

47

White Outdoor 735-0234

Grommet

$4.99

$

In Stock, only 3 left!

0

48

White Outdoor 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

White Outdoor 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

$58.99

$

In Stock, only 1 left!

0

49

White Outdoor 736-0185

Flat Washer .406" I.D. x .75" O.D.

$3.49

$

In Stock, Qty 17

0

50

White Outdoor 631-04181

Handle Panel Ass’y - Troy-Bilt
(Superseded to 931-04181A)

$55.99

$

In Stock, only 1 left!

0

51

White Outdoor 749-04142

Upper Handle LH
(Superseded to 749-04191A)

Variations

White Outdoor 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

51

White Outdoor 749-04191

Upper Handle LH (Heated Grips)
(Superseded to 749-04191A)

Note: with heated grips only

Variations

White Outdoor 749-04191-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191-0637

HANDLE-UPPER LH W/HOLE - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

52

White Outdoor 749-04141

Upper Handle RH

Variations

White Outdoor 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04141-0638

HANDLE-RH UPPER - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

52

White Outdoor 749-04190

Upper Handle RH (Heated Grips)
(Superseded to 749-04190A)

Note: with heated grips only

Variations

White Outdoor 749-04190-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

53

White Outdoor 720-04072

Handle Knob Assembly
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

55

White Outdoor 710-1260A

Hex Wash HD Lo Tap Scr 5/16 x .75

$3.49

$

In Stock, Qty 20+

0

56

White Outdoor 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

White Outdoor 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

57

White Outdoor 716-04036

E Ring

$5.99

$

In Stock, Qty 10

0

58

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

59

White Outdoor 731-04913

Steering Control

$4.99

$

In Stock, Qty 6

0

60

White Outdoor 738-04126

Pin 3/16

$3.99

$

In Stock, Qty 20+

0
