SB-630 (31AH5MLH590) - White Outdoor Snow Boss Snow Thrower (2007) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

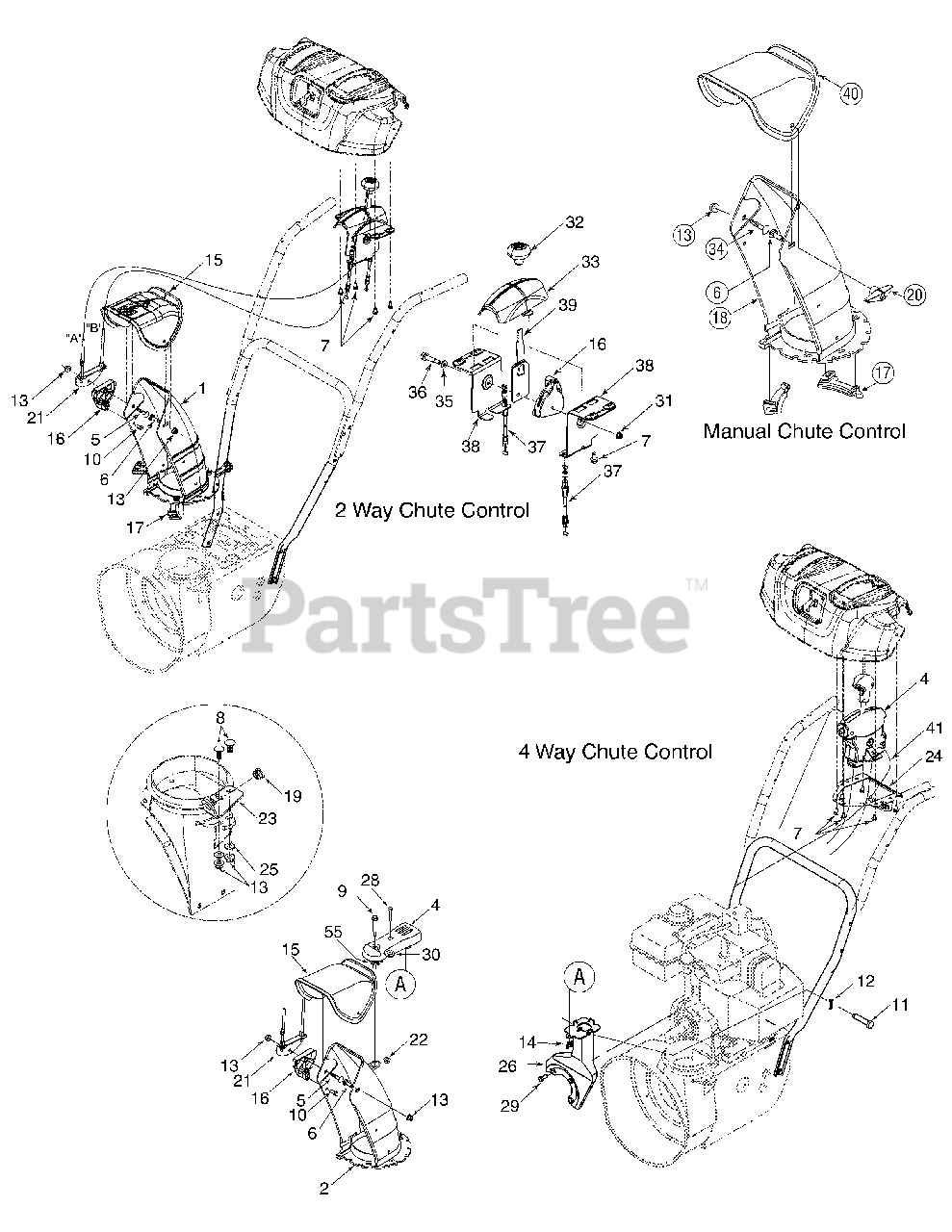

Chute Assembly Parts Diagram

  • Title

1

White Outdoor 631-04131B

Lower Chute (2 Way)

$36.99

$

In Stock, only 1 left!

0

2

White Outdoor 731-04861B

Lower Chute (4 Way)

$41.99

$

In Stock, only 1 left!

0

3

White Outdoor 684-04117A

2 Way Chute Control Assembly
(Superseded to 984-04117A)

$132.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-04116B

4 Way Chute Control Assembly
(Superseded to 753-08388A)

$283.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 14

0

6

White Outdoor 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

7

White Outdoor 710-04187

Hi-Lo Screw 1/4-15 x .5
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

8

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 738-04194

Shoulder Screw .312 x 1.7:1/4-20

$5.99

$

In Stock, only 2 left!

0

10

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

11

White Outdoor 711-04469A

Clevis Pin 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

12

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3087

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 731-04425B

Upper Chute w/Export Label, Remote
(Superseded to 931-04425B)

$21.99

$

Usually ships in 3-6 days

0

16

White Outdoor 731-1313C

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

17

White Outdoor 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 731-04912B

Lower Chute

$36.99

$

In Stock, only 1 left!

0

19

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 720-0284

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

21

White Outdoor 784-5594

Cable Bracket Chute Tilt

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

22

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 784-5647

Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0

24

White Outdoor 790-00131

Bracket: Chute Control
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0159

Flat Washer .349 ID x .879 OD x .063

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 684-04162B

Support Bracket
(Superseded to 684-04162B-0637)

Variations

White Outdoor 684-04162B-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 710-04187

Hi-Lo Screw 1/4-15 x .50
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

28

White Outdoor 710-0606

Hex Hd. Cap Screw 1/4-20 x 1.5 Gr. 5

$4.99

$

In Stock, Qty 15

0

29

White Outdoor 710-0627

Hex Hd. Cap Screw 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0463

Flat Washer .25 ID x .63 OD x .0515

$4.49

$

In Stock, only 1 left!

0

31

White Outdoor 712-04064

Flange Locknut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 720-04039

Knob

$9.99

$

In Stock, Qty 5

0

33

White Outdoor 731-05307

Control Cover - 2 Way

$10.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0413

Spring Washer .390 x .625 x .012

$6.49

$

In Stock, only 3 left!

0

36

White Outdoor 738-04185

Flg Shlder Spacer .310 x .995 x 1/4-20

$7.99

$

Usually ships in 3-6 days

0

37

White Outdoor 746-04238

Cable - 2 Way
(Superseded to 946-04238)

$34.99

$

Usually ships in 3-6 days

0

38

White Outdoor 790-00200

Mounting Bracket - 2 Way
(Superseded to 790-00200A)

Variations

White Outdoor 790-00200-0637

BRACKET-2 WAY CNTRL - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

39

White Outdoor 790-00210A

Lever - 2 Way

Variations

White Outdoor 790-00210A-0637

LEVER 2-WAY CONTROL - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-04354B

Upper Chute

$14.99

$

Usually ships in 3-6 days
