SB-630 (31AH5MLH590) - White Outdoor Snow Boss Snow Thrower (2007) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

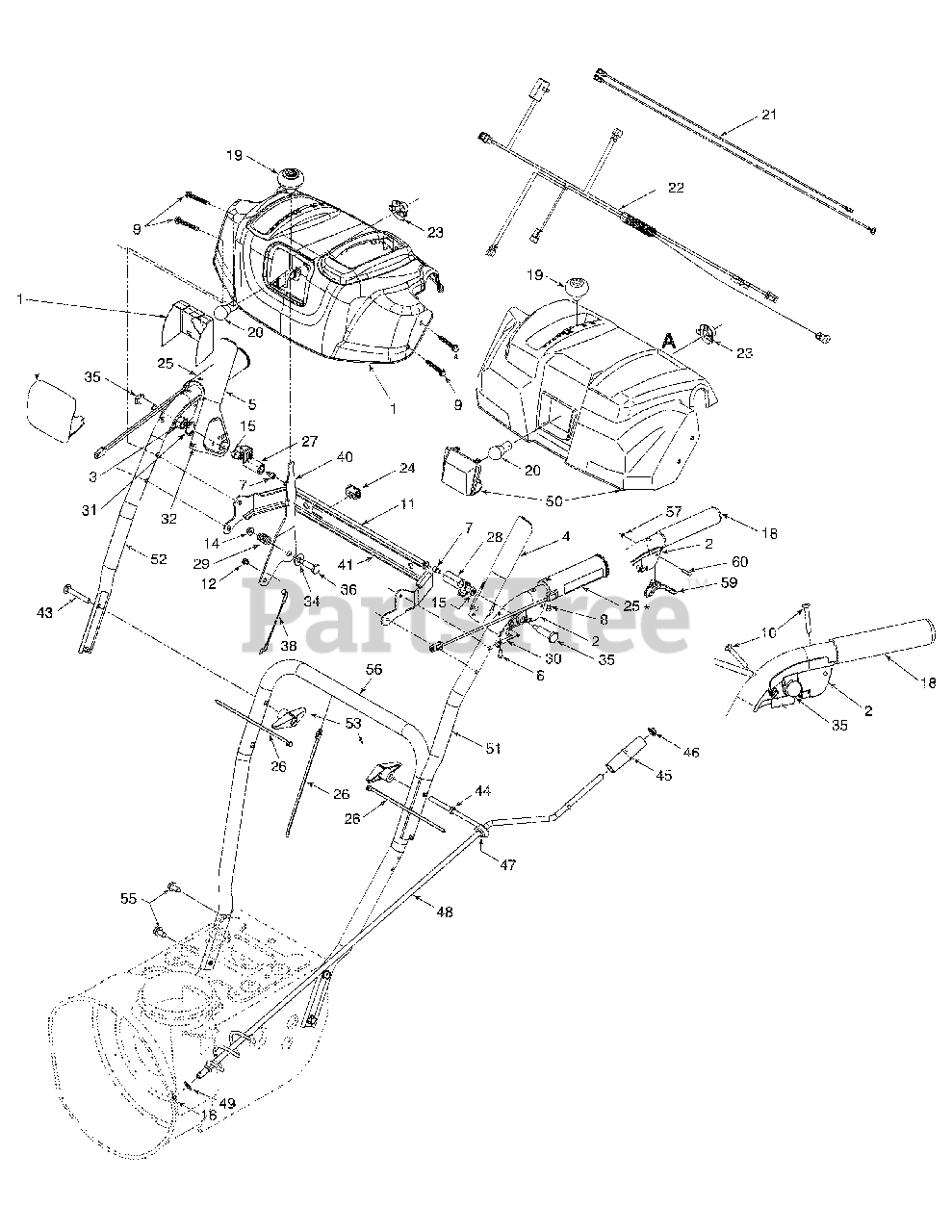

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 631-04180

Handle Panel Ass’y - Yellow

$88.99

$

Usually ships in 3-6 days

0

1

White Outdoor 631-04185

Handle Panel Ass’y - Black

$89.99

$

Usually ships in 3-6 days

0

1

White Outdoor 631-04183

Handle Panel Ass’y-Black w/Chute Control
(Superseded to 931-04183)

$115.99

$

Usually ships in 3-6 days

0

2

White Outdoor 631-04133A

LH Clutch Lock Handle Ass’y

$16.99

$

In Stock, only 2 left!

0

3

White Outdoor 631-04134B

RH Clutch Lock Handle Ass’y

$16.99

$

In Stock, only 2 left!

0

4

White Outdoor 684-04105B

Engagement Handle Assembly LH
(Superseded to 684-04105D)

$24.99

$

In Stock, only 2 left!

0

5

White Outdoor 684-04106B

Engagement Handle Assembly RH
(Superseded to 684-04106D)

$22.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-04326

Screw #8-16 x .50

$4.49

$

In Stock, Qty 11

0

7

White Outdoor 710-04354

Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 11

0

8

White Outdoor 710-0837

Oval HD C-Sunk Scr #10 x 5/8

$4.99

$

In Stock, only 3 left!

0

9

White Outdoor 710-04586

Hex TT-Tap Scr 1/4-20 x 1.625

$7.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.99

$

In Stock, Qty 9

0

11

White Outdoor 684-04250

Pivot Rod

$13.99

$

In Stock, only 2 left!

0

14

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-04081A

Hex Shoulder Nut 1/4-20

$7.99

$

In Stock, Qty 16

0

16

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 17

0

18

White Outdoor 720-0274

Grip

$12.99

$

In Stock, only 2 left!

0

19

White Outdoor 720-04039

Shift Knob

$10.99

$

In Stock, only 4 left!

0

19

White Outdoor 720-04045

Shift Knob - Yellow

$

$

Not available

20

White Outdoor 725-04213

Lamp #1295 (w/heated grips)
(Superseded to 925-04213)

$5.49

$

In Stock, Qty 8

0

20

White Outdoor 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, only 3 left!

0

21

White Outdoor 625-04039

Wire Harness
(Superseded to 625-04039P)

$

$

Not available

22

White Outdoor 725-04216A

Heated Grip Wire Harness
(Superseded to 725-04216B)

$80.99

$

Usually ships in 3-6 days

0

23

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

24

White Outdoor 725-04393

Switch

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 725-1757

Heated Grip

$117.99

$

In Stock, only 1 left!

0

26

White Outdoor 726-0470

Cable Tie 19 x 8.39" (w/plug)

$5.49

$

Usually ships in 3-6 days

0

26

White Outdoor 725-0157

Cable Tie (w/heated grips)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 731-04894C

Lock Plate
(Superseded to 731-04894D)

$5.99

$

In Stock, Qty 5

0

28

White Outdoor 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 12

0

29

White Outdoor 732-0193

Compression Spring .38 ID x .88 Lg

$4.99

$

In Stock, only 2 left!

0

30

White Outdoor 732-04219A

Spring: Clutch Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$5.99

$

In Stock, Qty 6

0

32

White Outdoor 735-0199A

Rubber Bumper

$8.49

$

In Stock, Qty 18

0

34

White Outdoor 736-0267

Flat Washer .38 ID x .87 OD x .09

$4.99

$

In Stock, Qty 13

0

35

White Outdoor 738-04122

Shoulder Screw 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-04125

Shoulder Screw .374 Dia. x 1.05 Lg.

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 746-04396

Selector Speed Cable
(Superseded to 946-04396A)

$21.99

$

In Stock, Qty 18

0

40

White Outdoor 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

White Outdoor 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$29.99

$

In Stock, only 4 left!

0

$29.99

$

In Stock, only 4 left!

0

41

White Outdoor 790-00248A

Panel Support
(Superseded to 790-00248E-0637)

Variations

White Outdoor 790-00248A-0637

Handle Support Bracket - POWDER BLACK (0637)

$25.99

$

In Stock, Qty 5

0

$25.99

$

In Stock, Qty 5

0

43

White Outdoor 710-0449

Carriage Bolt 5/16-18 x 2.25
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

44

White Outdoor 747-04263

Chute Crank Eye Bolt Special

$10.99

$

In Stock, only 2 left!

0

45

White Outdoor 720-0201A

Knob 1.0 x 3.2

$11.99

$

In Stock, only 2 left!

0

46

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.99

$

In Stock, only 1 left!

0

47

White Outdoor 735-0234

Grommet

$5.49

$

In Stock, Qty 10

0

48

White Outdoor 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

White Outdoor 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$66.99

$

In Stock, only 2 left!

0

$66.99

$

In Stock, only 2 left!

0

49

White Outdoor 736-0185

Flat Washer .406" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 7

0

50

White Outdoor 631-04181

Handle Panel Ass’y - Troy-Bilt
(Superseded to 931-04181A)

$62.99

$

In Stock, only 3 left!

0

51

White Outdoor 749-04142A

Upper Handle LH
(Superseded to 749-04191A)

Variations

White Outdoor 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$48.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

51

White Outdoor 749-04191A

Upper Handle LH (Heated Grips)

Variations

White Outdoor 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0650

HANDLE-UPPER LH W/HOLE - RED METALLIC (0650)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0662

HANDLE-UPPER LH W/HOLE - OYSTER GRAY (0662)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0665

HANDLE-UPPER LH W/HOLE - YARDMAN GREEN (0665)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0689

HANDLE-UPPER LH W/HOLE - POLO GREEN (0689)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0691

HANDLE-UPPER LH W/HOLE - BLACK JACK (0691)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0709

HANDLE-UPPER LH W/HOLE - MASTERCRAFT GREEN (0709)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0729

HANDLE-UPPER LH W/HOLE - STORM GRAY (0729)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-4033

HANDLE-UPPER LH W/HOLE - FLINT MICA (4033)

$48.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

52

White Outdoor 749-04141A

Upper Handle RH
(Superseded to 749-04190A)

Variations

White Outdoor 749-04141A-0637

Right Upper Handle - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04141A-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04141A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$48.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

52

White Outdoor 749-04190A

Upper Handle RH (Heated Grips)

Variations

White Outdoor 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0650

HANDLE-UPPER RH W/HOLE - RED METALLIC (0650)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0662

HANDLE-UPPER RH W/HOLE - OYSTER GRAY (0662)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0689

HANDLE-UPPER RH W/HOLE - POLO GREEN (0689)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0691

HANDLE-UPPER RH W/HOLE - BLACK JACK (0691)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0709

HANDLE-UPPER RH W/HOLE - MASTERCRAFT GREEN (0709)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0729

HANDLE-UPPER RH W/HOLE - STORM GRAY (0729)

$41.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-4033

HANDLE-UPPER RH W/HOLE - FLINT MICA (4033)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0665

HANDLE-UPPER RH W/HOLE - YARDMAN GREEN (0665)

$

$

Not available

$41.99

$

Usually ships in 3-6 days

0

53

White Outdoor 720-0284

Handle Knob Assembly

$7.49

$

In Stock, Qty 20+

0

55

White Outdoor 710-04484

Hex TT Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 749-04138A

Lower Handle

Variations

White Outdoor 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-4033

HANDLE-LOWER SNOW - FLINT MICA (4033)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

57

White Outdoor 716-04036

E Ring

$6.49

$

In Stock, only 2 left!

0

59

White Outdoor 731-04913

Steering Control

$5.99

$

In Stock, Qty 12

0

60

White Outdoor 738-04126

Pin 3/16

$4.49

$

In Stock, Qty 17

0
