SB-750 (31AE633E190) - White Outdoor Snow Boss Snow Thrower (1998) Bearing & Frame Assembly Parts Diagram

Snow Boss Snow Thrower

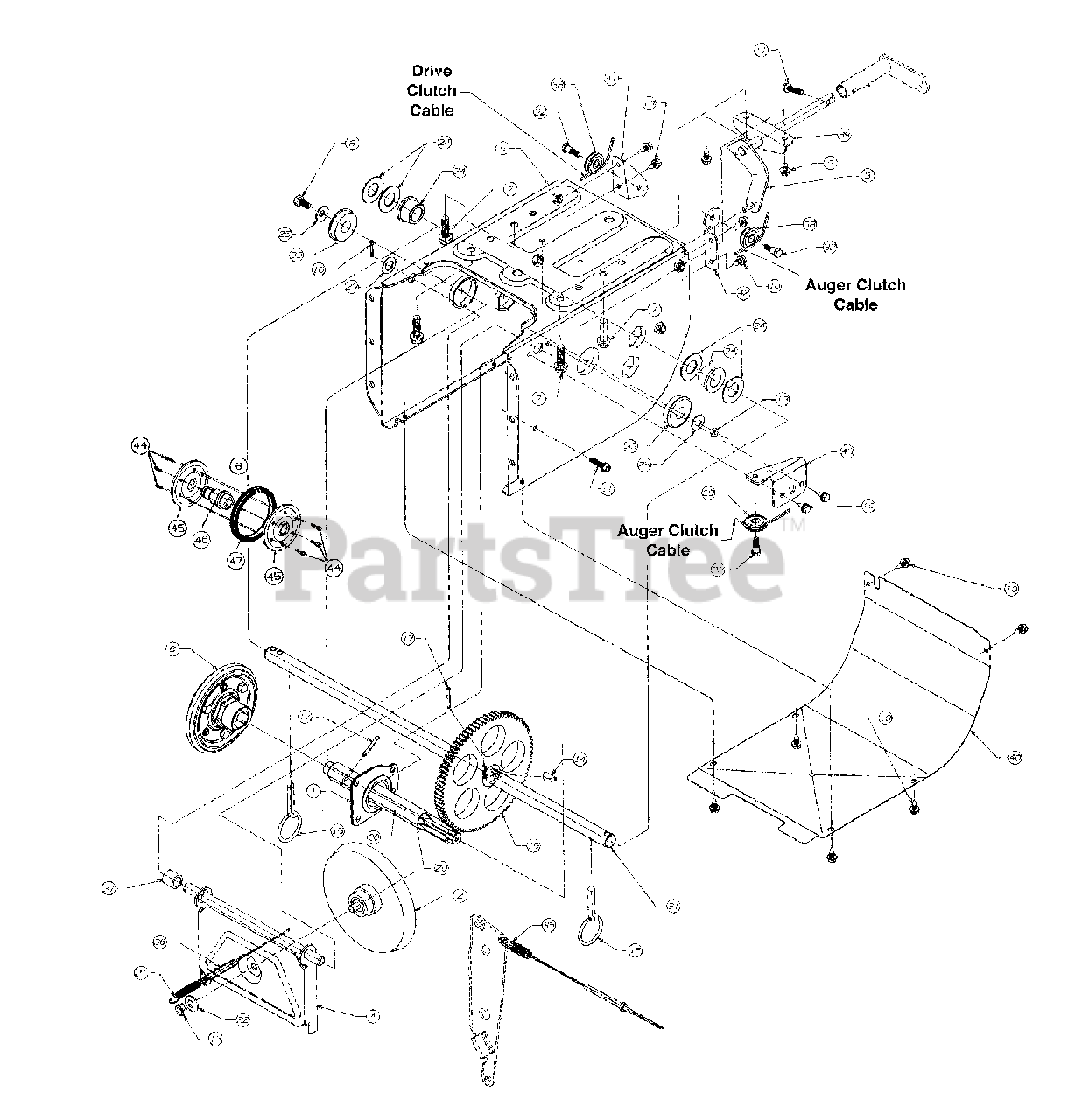

Bearing & Frame Assembly Parts Diagram

  • Title

1

MTD 618-0063

Bearing Ass'y.

$85.99

$

Usually ships in 3-6 days

0

2

MTD 956-0012A

Ass'y., Friction Wheel Disc

$117.99

$

In Stock, Qty 8

0

3

MTD 684-0013

Rod Shift, Wheel Drive

Note: NLA

$

$

Not available

4

MTD 984-0021-0637

Brkt. Ass'y. Friction Wheel

$

$

Not available

5

MTD 684-0030

Frame Ass'y., 600 S/T

Note: NLA

Variations

MTD 684-0030-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0030-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0030-0662

Frame Ass'y., 600 S/T - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0030-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 984-0042C

Wheel Friction

$128.99

$

In Stock, only 4 left!

0

7

MTD 710-0654A

Hex Self-Tap Screw

$3.99

$

In Stock, only 4 left!

0

8

UNKNOWN

$

$

Not available

9

MTD 710-0599

Scr., Hex Wash. Hd., TT 1/4-20 x .5"

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0896

Hex Self-Tap Scr.

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0788

Screw, Hex

$6.99

$

In Stock, only 4 left!

0

13

MTD 712-0711

Nut, Hex

$3.99

$

In Stock, Qty 20+

0

14

MTD 914-0126

Key
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-0143A

Pin, Klick

$6.49

$

In Stock, Qty 19

0

16

MTD 914-0474

Pin, Cotter
(Superseded to 714-0474)

$

$

Not available

17

MTD 915-0249

Pin, Roll

$6.49

$

In Stock, only 4 left!

0

19

MTD 717-1445

Gear

$100.99

$

Usually ships in 3-6 days

0

20

MTD 917-04094

Shaft, Hex

$90.99

$

In Stock, only 2 left!

0

21

MTD 932-0264

Extension Spring

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0105

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

23

MTD 936-0160

Flat Washer

$3.99

$

In Stock, Qty 17

0

24

MTD 736-0188

Washer, Flat

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0242

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

30

Lubricant

$

$

Not available

31

MTD 738-0869

Axle

Note: Used with 13" wheels

$130.99

$

Usually ships in 3-6 days

0

31

MTD 738-0830

Axle

Note: Used with 16" wheels

$

$

Not available

32

MTD 738-0924A

Screw, Shoulder

$6.49

$

In Stock, Qty 6

0

33

MTD 941-0563

Bearing, Ball

$33.99

$

In Stock, Qty 20+

0

34

MTD 941-0598

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

35

MTD 946-0897

Cable, Auger

$23.99

$

In Stock, Qty 20+

0

36

MTD 946-0898

Cable, Clutch

$25.99

$

In Stock, Qty 20+

0

37

MTD 748-0190

Spacer

$5.99

$

In Stock, only 1 left!

0

38

MTD 756-0625

Roller, Cable

$8.99

$

In Stock, Qty 20+

0

39

MTD 784-5590

Frame, Shift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

40

MTD 784-5638

Cover, Frame
(Superseded to 784-5638A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

MTD 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

41

MTD 784-5688-0637

Bracket, Drive Cable Roller

$

$

Not available

42

MTD 784-5687A-0637

Brkt., Auger Clutch Cable Guide

$

$

Not available

43

MTD 784-5689A-0637

Brkt., Front Support Guide

$

$

Not available

44

MTD 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

45

MTD 784-5617

Friction Plate

Note: NLA

$

$

Currently unavailable

46

MTD 984-0042C

Friction Wheel Hub

$128.99

$

In Stock, only 4 left!

0

47

MTD 935-0243B

Friction Wheel Rubber

$17.99

$

In Stock, Qty 20+

0
