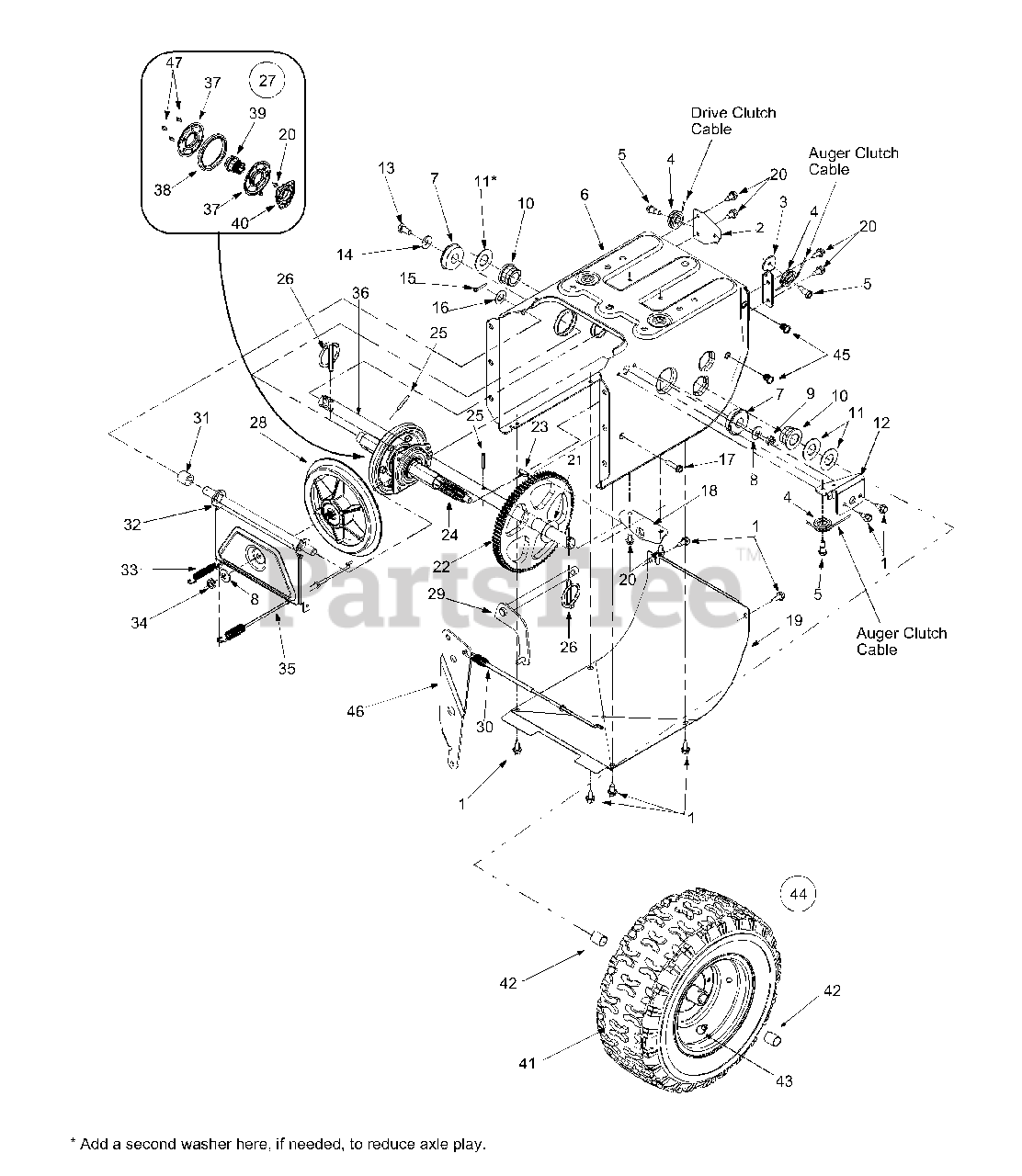

SB-750 (31AE633E190) - White Outdoor Snow Boss Snow Thrower (2002)

Snow Boss Snow Thrower

SB-750 (31AE633E190) - White Outdoor Snow Boss Snow Thrower (2002) > Parts Diagrams (5) > Drive

  • Title
710-1652

1

Hex Screw 1/4-20 x .625

Part# 710-1652

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

784-5688

2

Drive Cable Guide Bracket

Part# 784-5688

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-GUIDE-DRIVE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

BRACKET-GUIDE-DRIVE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

784-5687A

3

Auger Clutch Cable Bracket

Part# 784-5687A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-GUIDE-AUGER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

756-0625

4

Cable Roller

Part# 756-0625

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.90

738-0924

5

Shoulder Screw 1/4-28 x .375

Part# 738-0924 (Superseded to 738-0924A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

784-5630A

6

Frame Assembly

Part# 784-5630A

OEM Warranty Repair Part for White Outdoor

Variations

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

No Longer Available

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

POLO GREEN (0689)

No Longer Available

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

No Longer Available

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

No Longer Available

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

741-0563

7

Ball Bearing

Part# 741-0563 (Superseded to 941-0563)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.87

736-0105

8

Bell Washer

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0116

9

Lock Jam Nut, 3/8-24

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

741-0598

10

Hex Flange Bearing

Part# 741-0598 (Superseded to 941-0598)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.46

736-0188

11

Flat Washer, .76 x 1.49 x .06

Part# 736-0188

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

784-5689A

12

Front Support Guide Bracket

Part# 784-5689A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Guide Bracket, Front

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Guide Bracket, Front

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

710-0538

13

Hex Cap Screw, 5/16-18 x 625

Part# 710-0538

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

736-0242

14

Bell Washer .340 ID x .872 OD

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

714-0474

15

Cotter Pin, .125 x .75

Part# 714-0474 (Superseded to 914-0474)

OEM Warranty Repair Part for White Outdoor

Not available

736-0160

16

Flat Washer .536 ID x .930 OD

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0809

17

Hex Washer Screw 1/4-20

Part# 710-0809

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.07

784-5590

18

Shift Bracket Frame

Part# 784-5590

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

Variations

POWDER BLACK (0637)

Shift Fram Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

MTD/TROY-BILT RED (0638)

BRACKET-SHIFT FRAM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

RED METALLIC (0650)

BRACKET-SHIFT FRAM

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Shift Fram Bracket

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

POLO GREEN (0689)

BRACKET-SHIFT FRAM

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW 2 (4021)

BRACKET-SHIFT FRAM

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for White Outdoor

Not available

FLINT MICA (4033)

BRACKET-SHIFT FRAM

Part# FLINT MICA (4033)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

784-5638

19

Frame Cover

Part# 784-5638

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

Frame Cover, Black

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

Frame Cover, Black

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

Frame Cover, Black

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

Frame Cover, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

Frame Cover, Black

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

Frame Cover, Black

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Frame Cover, Black

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

Frame Cover, Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

LESCO GREEN (0683)

Frame Cover, Black

Part# LESCO GREEN (0683)

OEM Warranty Repair Part for White Outdoor

Not available

POLO GREEN (0689)

Frame Cover, Black

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

MASTERCRAFT GREEN (0709)

Frame Cover, Black

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

20

Hex Washer Screw 1/4-20

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0351

21

Flat Washer .760 ID x .50 OD

Part# 736-0351 (Superseded to 936-0351)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.12

717-1445

22

Gear, 80-tooth

Part# 717-1445

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $75.97

714-0126

23

Key, 3/16 x 3/4

Part# 714-0126 (Superseded to 914-0126)

OEM Warranty Repair Part for White Outdoor

Not available

717-1444

24

7-Tooth Shaft

Part# 717-1444 (Superseded to 917-04094)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $68.23

715-0249

25

Roll Pin

Part# 715-0249 (Superseded to 915-0249)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

714-0143

26

Clik Pin

Part# 714-0143 (Superseded to 714-0143A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.55

684-0042C

27

Friction Wheel Assembly

Part# 684-0042C (Superseded to 984-0042C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $97.92

656-0012A

28

Friction Wheel Disc

Part# 656-0012A (Superseded to 956-0012A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.95

684-0013B

29

Wheel Shift Rod Assembly

Part# 684-0013B (Superseded to 684-04243)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.08

746-0897

30

Drive Cable

Part# 746-0897 (Superseded to 946-0897)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $18.34

748-0190

31

Spacer

Part# 748-0190

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.39

684-0021

32

Friction Wheel Bracket Ass'y

Part# 684-0021

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Support Bracket Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0264

33

Extension Spring

Part# 732-0264 (Superseded to 932-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.50

712-0711

34

Jam Nut, 3/8-24

Part# 712-0711

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

746-0898

35

Drive Cable

Part# 746-0898 (Superseded to 946-0898)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.61

738-0869

36

Wheel Axle, .750 x 22.21

Part# 738-0869

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.45

784-5617A

37

Friction Wheel Side Plate

Part# 784-5617A (Superseded to 984-0042C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $97.92

735-0243B

38

Friction Wheel Rubber

Part# 735-0243B (Superseded to 935-0243B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.64

718-0301A

39

Friction Wheel Hub

Part# 718-0301A (Superseded to 984-0042C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $97.92

618-0063A

40

Friction Wheel Bearing

Part# 618-0063A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $64.87

734-1859

41

Tire Only, 15 x 5 x 6

Part# 734-1859

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

TIRE 15X5

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $79.84

741-0401

42

Sleeve Bearing, .75 x .87 x 1

Part# 741-0401 (Superseded to 941-0401)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.46

734-0255

43

Air Valve

Part# 734-0255 (Superseded to 934-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

634-0140

44

Wheel Assembly

Part# 634-0140

Note: (Incl. Ref. 41, 42, & 43)

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASM. COMP.

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

WHEEL ASM. COMP.

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

WHEEL ASM. COMP.

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

712-0703A

45

Insert Nut, 5/16-18

Part# 712-0703A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.44

784-5632A

46

Auger Idler Arm

Part# 784-5632A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ARM ASSY-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.98

710-1652

47

Hex Washer Screw 1/4-20

Part# 710-1652

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06
