SB-750 ST (31AE733E190) - White Outdoor Snow Boss Snow Thrower (1998) Handle Panel Assembly Parts Diagram

Snow Boss Snow Thrower

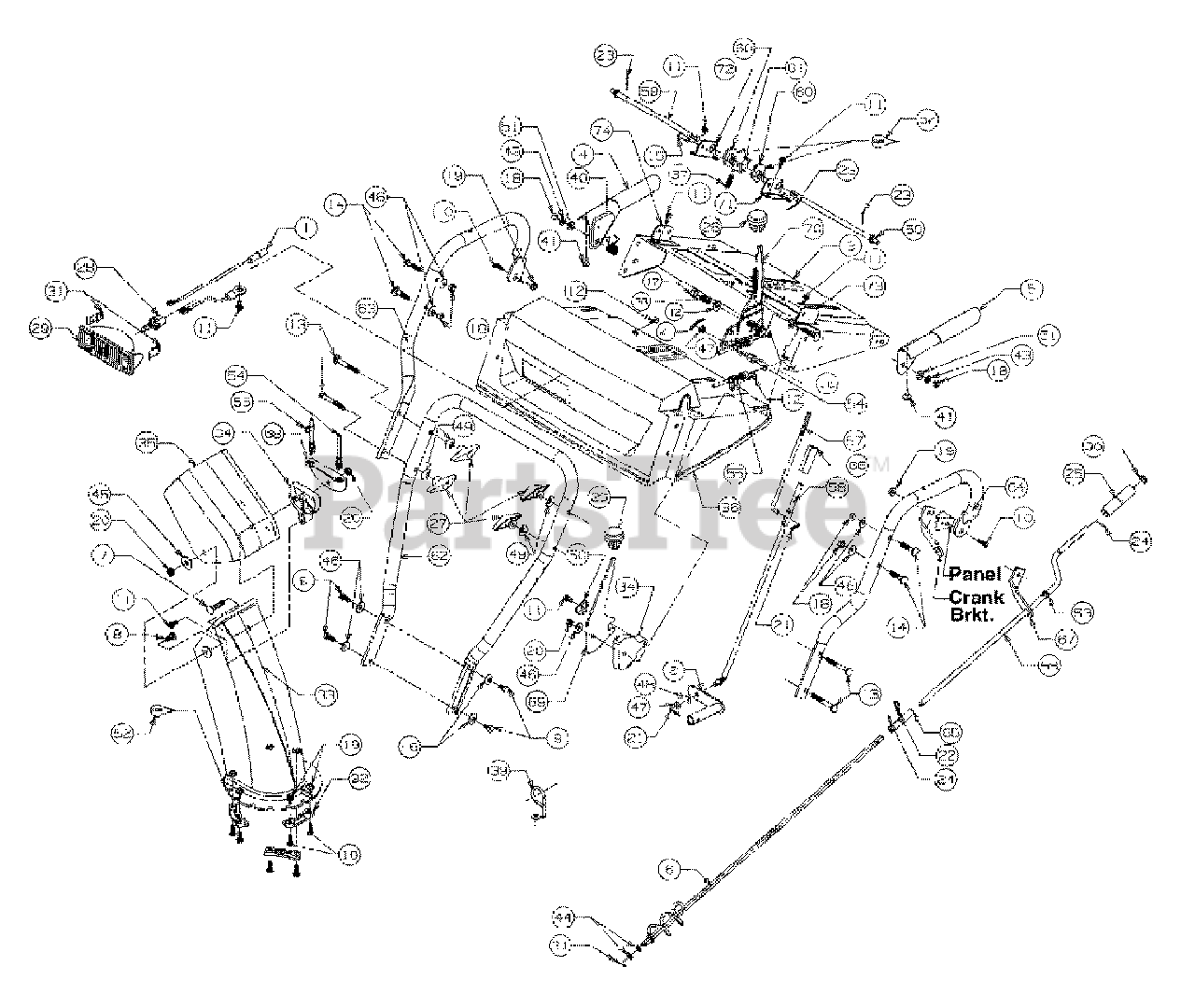

Handle Panel Assembly Parts Diagram

  • Title

1

MTD 929-0059

Harness-Light

$93.99

$

Usually ships in 3-6 days

0

2

MTD 684-0008A-0637

Arm-Shift

$50.99

$

Usually ships in 3-6 days

0

3

MTD 684-0032A

Panel Ass'y.-Handle w/Tilt

Note: NLA

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 684-0036A

Handle-Engagement-R.H.

$41.99

$

Usually ships in 3-6 days

0

5

MTD 684-0037B

Handle-Engagement-L.H.

$38.99

$

In Stock, only 2 left!

0

6

MTD 684-0053B-0637

Crank-Chute

$

$

Not available

7

MTD 710-0262

Bolt-Carriage

$3.99

$

In Stock, Qty 14

0

8

MTD 710-0451

Bolt-Carriage

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3008

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3015

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0896

Screw-Washer Head-Hex

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-04669

Screw-Hex

$3.49

$

In Stock, Qty 20+

0

13

MTD 710-1178

Bolt-Carriage

$

$

Not available

14

MTD 710-1250

Bolt-Carriage

$4.49

$

In Stock, Qty 5

0

15

MTD 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

16

MTD 911-0677

Ferrule

$16.99

$

In Stock, only 4 left!

0

17

MTD 912-0116

Nut-Hex Lock
(Superseded to 712-0116)

$

$

Not available

18

MTD 912-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 912-3027

Nut-Hex Lock

$3.99

$

In Stock, Qty 20+

0

20

MTD 912-3009

Nut-Hex Lock
(Superseded to 712-3009)

$

$

Not available

21

MTD 914-0104

Pin-Cotter Internal
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

22

MTD 914-0145

Pin-Cotter
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

23

UNKNOWN

$

$

Not available

24

MTD 915-0138

Pin-Roll

$4.49

$

In Stock, only 1 left!

0

25

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 6

0

26

MTD 920-0232

Knob-Shift

$9.99

$

In Stock, only 4 left!

0

27

MTD 920-0284

Knob-Wing Nut
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

28

MTD 925-1658

Lamp

$55.99

$

In Stock, Qty 5

0

29

MTD 925-1672

Housing-Lamp

$83.99

$

Usually ships in 3-6 days

0

30

MTD 926-0100

Cap-Push
(Superseded to 726-0100)

$

$

Not available

31

MTD 747-1136

Clip-Retaining

$10.99

$

Usually ships in 3-6 days

0

32

MTD 731-0851A

Keeper-Chute

$3.99

$

In Stock, Qty 20+

0

33

MTD 731-1300E

Chute-Lower

$54.99

$

In Stock, Qty 9

0

34

MTD 731-1313C

Guide-Cable

$11.99

$

Usually ships in 3-6 days

0

35

MTD 731-04427A

Chute-Upper
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

36

MTD 931-1737

Panel-Handle

$

$

Not available

37

MTD 732-0145

Spring

$3.99

$

In Stock, only 1 left!

0

38

MTD 732-0193

Spring

$4.49

$

In Stock, Qty 8

0

39

MTD 732-0705

Wire-Control

$11.99

$

Usually ships in 3-6 days

0

40

MTD 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

41

MTD 935-0199A

Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

42

MTD 736-0105

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

43

MTD 936-0119

Washer-Lock

$4.49

$

In Stock, Qty 20+

0

44

MTD 936-0140

Washer-Flat
(Superseded to 736-0140)

$

$

Not available

45

MTD 936-0231

Washer
(Superseded to 736-0231)

$

$

Not available

46

MTD 736-0242

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0264

Washer-Flat

$6.49

$

In Stock, Qty 11

0

48

MTD 936-0271

Washer-Lock

$4.49

$

In Stock, Qty 13

0

49

MTD 936-0451

Washer-Saddle
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0506A

Washer

$

$

Not available

51

MTD 736-0509

Washer

$6.49

$

In Stock, only 1 left!

0

52

MTD n/a

Lubricant

$

$

Currently unavailable

53

MTD 941-0475

Bushing-Plastic

$3.99

$

In Stock, Qty 20+

0

54

MTD 946-0896

Cable-Chute Control

$52.99

$

In Stock, only 1 left!

0

55

MTD 946-0901

Cable-Chute Control

$59.99

$

Usually ships in 3-6 days

0

56

MTD 747-0737-0637

Crank-Chute

$42.99

$

Usually ships in 3-6 days

0

57

MTD 747-0620A

Rod-Shift Upper

$11.99

$

In Stock, only 3 left!

0

58

MTD 747-0621

Rod-Shift Lower

$

$

Not available

59

MTD 747-0877

Rod-Cam

$21.99

$

Usually ships in 3-6 days

0

60

MTD 748-0362

Cam-Handle Lock

$7.49

$

In Stock, only 1 left!

0

61

MTD 948-0363

Pawl-Handle Lock

$15.99

$

In Stock, only 1 left!

0

62

MTD 749-0951A-0637

Handle-Lower
(Superseded to 749-0951A)

$62.99

$

Usually ships in 3-6 days

0

63

MTD 749-0954-0637

Handle-R.H.

$

$

Not available

64

MTD 749-0955-0637

Handle-L.H.

$

$

Not available

65

MTD 950-0785

Spacer

$32.99

$

Usually ships in 3-6 days

0

66

MTD 950-0963

Connector

$32.99

$

In Stock, only 3 left!

0

67

MTD 705-5266-0637

Bracket

$14.99

$

Usually ships in 3-6 days

0

68

MTD 784-5594

Bracket-Cable

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

69

MTD 784-5604A-0637

Handle-Chute Tilt

$23.99

$

Usually ships in 3-6 days

0

70

MTD 753-05395

Handle-Shift

$

$

Not available

71

MTD 784-5679-0637

Bracket-Handle Support-L.H.

$7.99

$

Usually ships in 3-6 days

0

72

MTD 784-5680-0637

Bracket-Handle Support-R.H.

$11.99

$

Usually ships in 3-6 days

0

73

MTD 784-5681

Bracket-Handle Support-L.H.

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

74

MTD 784-5682-0637

Bracket-Handle Support-R.H.

$26.99

$

Usually ships in 3-6 days

0
