SB-800 ST (315-746E190) - White Outdoor Snow Boss Snow Thrower (1995) Snow Throwers Illustration (Part 5) Parts Diagram

Snow Boss Snow Thrower

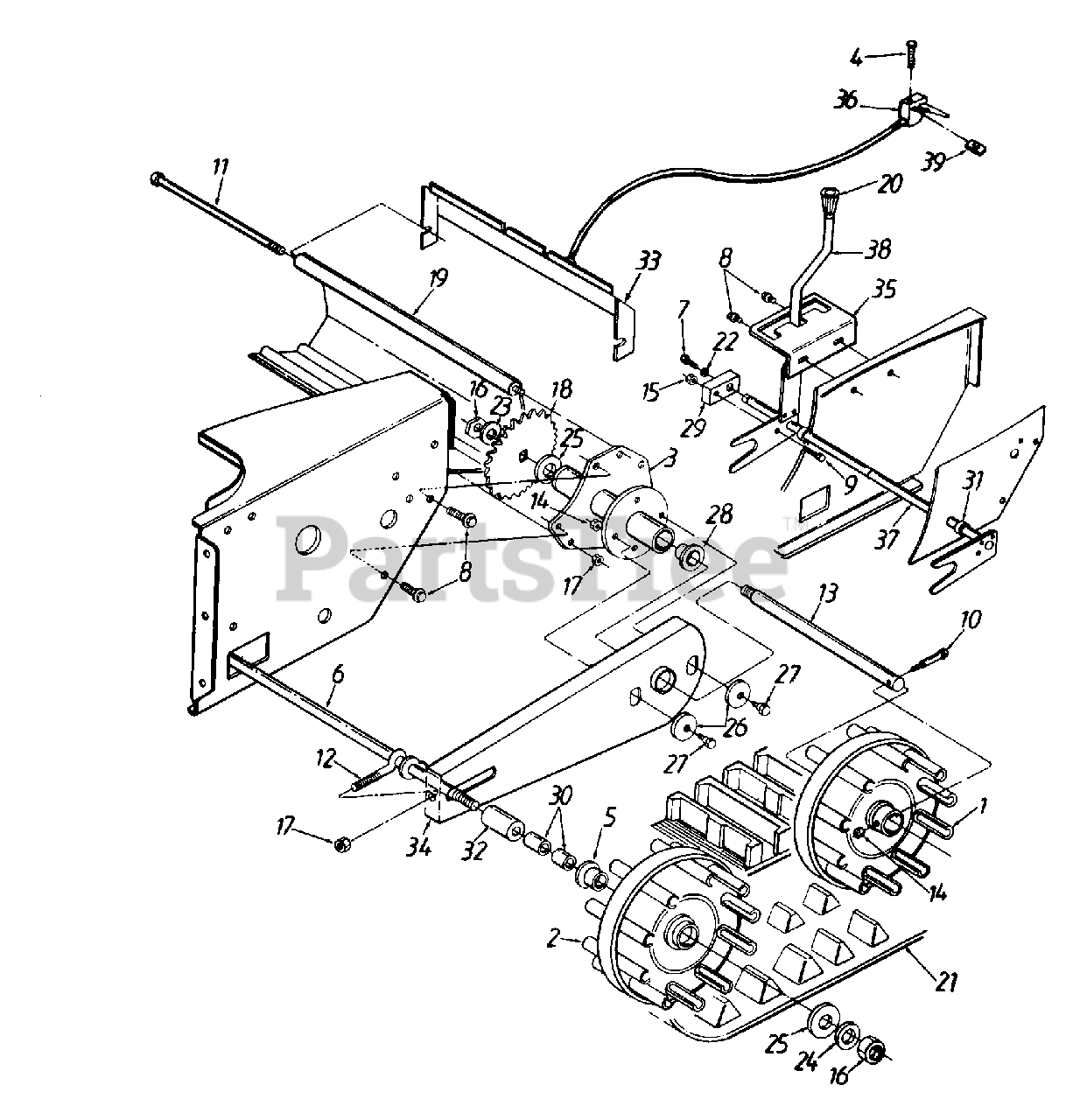

Snow Throwers Illustration (Part 5) Parts Diagram

  • Title

1

MTD 631-0002

Drive Wheel Ass'y.

Note: NLA

$

$

Not available

2

MTD 631-0032A

Idler Wheel Ass'y.

$47.99

$

In Stock, only 2 left!

0

3

MTD 683-0024-0637

Track Hub Ass'y.

$89.99

$

Usually ships in 3-6 days

0

4

MTD 710-1233

Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg.

$4.99

$

In Stock, Qty 9

0

5

MTD 941-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.

$13.99

$

In Stock, Qty 20+

0

6

MTD 753-05977

Idler Axle Ass'y.

$100.99

$

Usually ships in 3-6 days

0

7

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

8

MTD 710-0604A

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.

$4.99

$

In Stock, Qty 19

0

9

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Special)

$7.49

$

In Stock, Qty 11

0

10

MTD 710-1227

Bolt 5/16-18 x 1.5" Lg.

Note: NLA

$

$

Not available

11

MTD 710-1230

Hex Bolt Ass'y. 5/16-18 x 9.81" Lg.

Note: NLA

$

$

Not available

12

MTD 710-1231

Eyebolt 5/16-18 x 3" Lg.

$9.49

$

Usually ships in 3-6 days

0

13

MTD 711-0941

Drive Axle

Note: NLA

$

$

Not available

14

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 14

0

15

MTD 912-0214

Hex Cent. L-Nut 3/8-24 Thd.
(Superseded to 712-0214)

$6.99

$

In Stock, Qty 20+

0

16

MTD 912-0346

Hex Ins. Jam L-Nut 1/2-20 Thd.
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

17

MTD 912-0429

Hex L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

18

MTD 713-0115

24 Tooth Sprocket

$

$

Not available

19

MTD 719-0295A

Track Housing

$

$

Not available

20

MTD 720-0223

Grip

$15.99

$

In Stock, only 4 left!

0

21

MTD 731-1292

Snow Track

$291.99

$

Usually ships in 3-6 days

0

22

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

23

MTD 936-0255

Bell-Wash. .515" I.D. x 1.14" O.D.
(Superseded to 736-0255)

$

$

Not available

24

MTD 936-0179

Fl-Wash. .531" I.D. x 1.25" O.D.
(Superseded to 736-0179)

$4.99

$

In Stock, Qty 20+

0

25

MTD 936-0287

Fl-Wash. .793" I.D. x 1.24" O.D.
(Superseded to 736-0287)

$

$

Not available

26

MTD 936-0406

Fl-Wash. 3/8" I.D. x 7/16" O.D.

$7.49

$

In Stock, Qty 7

0

27

MTD 938-0155

Shld. Bolt .437" Dia. x .162

$7.49

$

Usually ships in 3-6 days

0

28

MTD 941-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.

$13.99

$

In Stock, Qty 20+

0

29

MTD 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

30

MTD 750-0499

Spacer .5" I.D. x .78" Lg.

$25.99

$

Usually ships in 3-6 days

0

31

MTD 750-0547

Spacer .628" I.D. x .5" Lg.

$5.99

$

In Stock, only 1 left!

0

32

MTD 750-0909

Spacer .51" I.D. x 1.34" Lg.

$9.49

$

Usually ships in 3-6 days

0

33

MTD 784-5609

Steering Cable Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

MTD 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

MTD 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5609-0691

BRACKET-STEERING - BLACK JACK (0691)

$

$

Not available

MTD 784-5609-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5609-0721

BRACKET-STEERING - SEARS RED (0721)

$

$

Not available

MTD 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

MTD 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

MTD 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

34

MTD 784-5639

Track Side Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

MTD 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

35

MTD 784-5642

Track Lockout Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

MTD 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5642-0721

PLATE-TRACK LOCKOU - SEARS RED (0721)

$

$

Not available

MTD 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

MTD 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

36

MTD 753-0707

Track Steer Cable w/Trigger

$78.99

$

In Stock, only 2 left!

0

37

MTD 684-0009

Track Pivot Rod Ass'y.
(Superseded to 684-0009A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

38

MTD 684-0038

Track Lock Handle Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$62.99

$

Usually ships in 3-6 days

0

MTD 684-0038-4021

HANDLE ASM-TRACKLOC - CUB YELLOW 2 (4021)

$62.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0665

HANDLE ASM-TRACKLOC - YARDMAN GREEN (0665)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

39

MTD 712-0127

Flat Weld Nut #10-24 Thd.

$3.49

$

In Stock, Qty 10

0
