SB-850 (315E646F190) - White Outdoor Snow Boss Snow Thrower (1995)

Snow Boss Snow Thrower

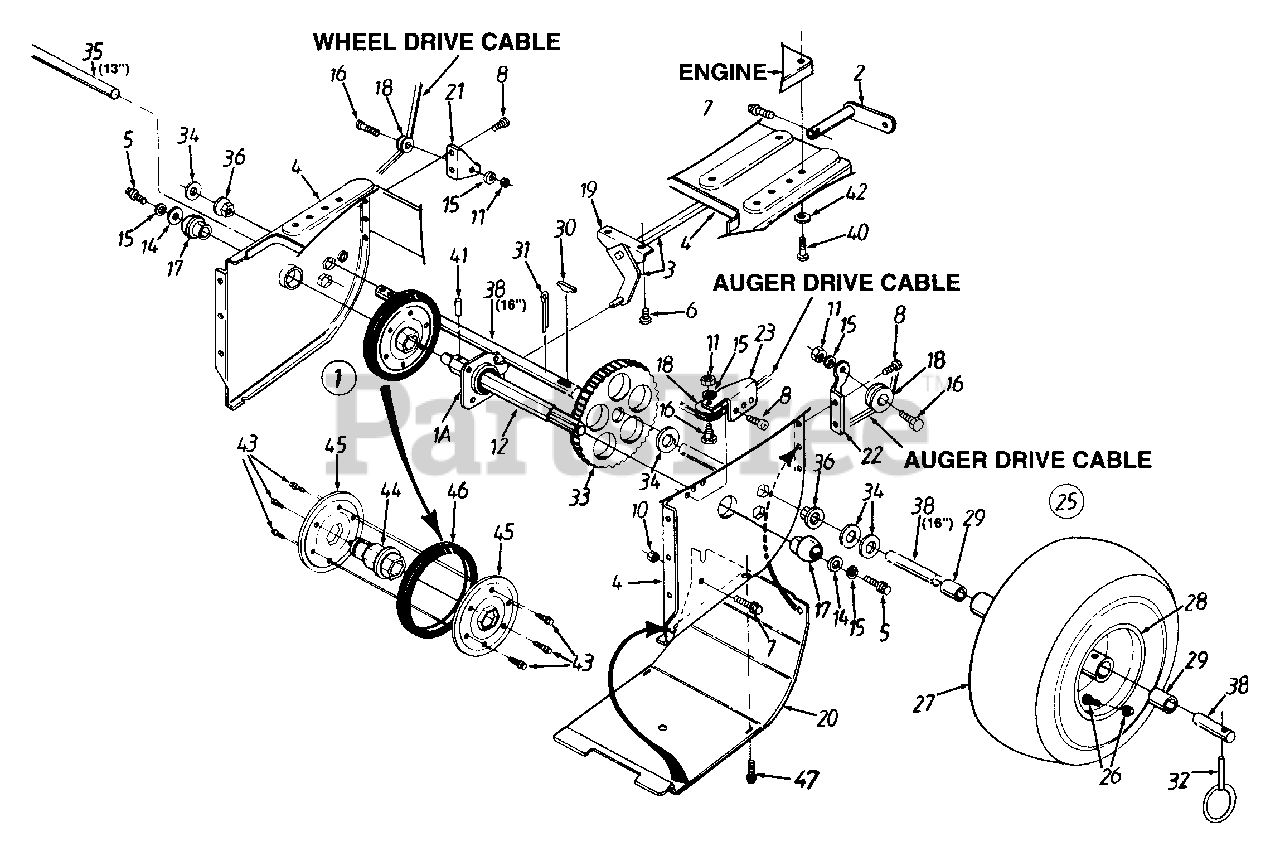

SB-850 (315E646F190) - White Outdoor Snow Boss Snow Thrower (1995) > Parts Diagrams (4) > Snow Thrower

  • Title
984-0042C

1

Friction Wheel Ass'y. Comp.

Part# 984-0042C

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $90.53

618-0063

1A

Friction Wheel Brg. Ass'y.

Part# 618-0063

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $59.97

684-0008A-0637

2

Shift Arm Ass'y.

Part# 684-0008A-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.00

684-0013

3

Shift Rod Ass'y.

Part# 684-0013

Note: NLA

OEM Warranty Repair Part for MTD

Not available

684-0030

4

Frame Ass'y.

Part# 684-0030

Note: NLA

OEM Warranty Repair Part for MTD

Variations

SILVER FLAKE (0629)

No Longer Available

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Frame Ass'y., 600 S/T

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

710-0642

5

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

Part# 710-0642

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.96

710-0653

6

Hex Tap Scr. 1/4-20 x .38" Lg.

Part# 710-0653

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-0788

7

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

Part# 710-0788

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

710-1017

8

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.37

912-0287

10

Hex Nut 1/4-20 Thd.

Part# 912-0287

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

912-0298

11

Hex Jam Nut 1/4-20 Thd.

Part# 912-0298

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.00

717-1415A

12

Gear Shaft

Part# 717-1415A

Note: NLA

OEM Warranty Repair Part for MTD

Not available

936-0176

14

Fl-Wash. .265" I.D. x .938" O.D.

Part# 936-0176

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

936-0329

15

L-Wash. 1/4" I.D.

Part# 936-0329

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.89

738-0870

16

Shld. Bolt 5/16 Dia. x .35" Lg.

Part# 738-0870

Note: NLA

OEM Warranty Repair Part for MTD

Not available

941-0563

17

Ball Brg. w/Snap Ring

Part# 941-0563

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.08

756-0625

18

Cable Roller Guide

Part# 756-0625

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.38

784-5590

19

Shift Bracket - Frame

Part# 784-5590

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Shift Fram Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

MTD/TROY-BILT RED (0638)

BRACKET-SHIFT FRAM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

RED METALLIC (0650)

BRACKET-SHIFT FRAM

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

OYSTER GRAY (0662)

Shift Fram Bracket

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

POLO GREEN (0689)

BRACKET-SHIFT FRAM

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW 2 (4021)

BRACKET-SHIFT FRAM

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

FLINT MICA (4033)

BRACKET-SHIFT FRAM

Part# FLINT MICA (4033)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.76

784-5638

20

Frame Cover

Part# 784-5638

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

Frame Cover, Black

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

Frame Cover, Black

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

CUB BEIGE (0499)

Frame Cover, Black

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

Frame Cover, Black

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

Frame Cover, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

Frame Cover, Black

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

Frame Cover, Black

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Frame Cover, Black

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

Frame Cover, Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

LESCO GREEN (0683)

Frame Cover, Black

Part# LESCO GREEN (0683)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

Frame Cover, Black

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

Frame Cover, Black

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

Frame Cover, Black

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

784-5644

21

Drive Cable Guide Brkt.

Part# 784-5644

Note: NLA

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-DR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-5646

22

Auger Cable Guide Brkt.

Part# 784-5646

Note: NLA

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-AU

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-5658-0637

23

Front Support Brkt. Guide

Part# 784-5658-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.45

734-1714A

25

Wheel Ass'y. Comp. (616E)

Part# 734-1714A

OEM Warranty Repair Part for MTD

Variations

Carlisle Gray (0911)

No Longer Available WHL ASM 13

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for MTD

Not available

Duro Gray (0915)

No Longer Available WHL ASM 13

Part# Duro Gray (0915)

OEM Warranty Repair Part for MTD

Not available

Carlisle Beige (0931)

No Longer Available WHEEL

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for MTD

Not available

Carlisle Yellow (0951)

No Longer Available WHEEL

Part# Carlisle Yellow (0951)

OEM Warranty Repair Part for MTD

Not available

734-1709

25

Wheel Ass'y. Comp. (646F)

Part# 734-1709

OEM Warranty Repair Part for MTD

Variations

Carlisle Gray (0911)

No Longer Available

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for MTD

Not available

Duro Gray (0915)

No Longer Available WHEEL

Part# Duro Gray (0915)

OEM Warranty Repair Part for MTD

Not available

Carlisle Beige (0931)

No Longer Available

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for MTD

Not available

Duro Beige (0935)

WHEEL ASM 16X4.8

Part# Duro Beige (0935)

OEM Warranty Repair Part for MTD

Not available

Carlisle Yellow (0941)

WHEEL ASM 16X4.8

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for MTD

Not available

734-1712

25

Wheel Ass'y. Comp. (666H)

Part# 734-1712

OEM Warranty Repair Part for MTD

Variations

Carlisle Gray (0911)

WHEEL ASM-COMP

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $193.82

Carlisle Beige (0931)

No Longer Available

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for MTD

Not available

Carlisle Yellow (0941)

No Longer Available WHL ASM 1

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for MTD

Not available

934-0255

26

Air Valve

Part# 934-0255

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

734-1527

27

Tire Only (616E)

Part# 734-1527

OEM Warranty Repair Part for MTD

Variations

Carlisle (0901)

No Longer Available

Part# Carlisle (0901)

OEM Warranty Repair Part for MTD

Not available

Duro (0905)

No Longer Available TIRE-SNOW

Part# Duro (0905)

OEM Warranty Repair Part for MTD

Not available

734-1530

27

Tire Only (646F)

Part# 734-1530

OEM Warranty Repair Part for MTD

Variations

Carlisle (0901)

TIRE-SNOW HOG-4.80

Part# Carlisle (0901)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.27

Duro (0905)

TIRE-SNOW HOG-4.80

Part# Duro (0905)

OEM Warranty Repair Part for MTD

Not available

734-1525

27

Tire Only (666H)

Part# 734-1525

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $106.24

734-1713

28

Rim Only (616E)

Part# 734-1713

OEM Warranty Repair Part for MTD

Variations

CUB BEIGE (0499)

No Longer Available WHEEL RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

WHEEL RIM 6.0 X 3.

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

No Longer Available RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

SPRING GREEN (0688)

No Longer Available WHEEL RIM

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for MTD

Not available

934-1708A

28

Rim Only (646F)

Part# 934-1708A

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

CUB BEIGE (0499)

No Longer Available WHEEL-RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Rim Only

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

No Longer Available WHEEL-RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

YELLOW JACKET (0731)

No Longer Available WHEEL-RIM

Part# YELLOW JACKET (0731)

OEM Warranty Repair Part for MTD

Not available

734-1711

28

Rim Only (666H)

Part# 734-1711

OEM Warranty Repair Part for MTD

Variations

CUB BEIGE (0499)

No Longer Available WHEEL-RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available WHEEL RIM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

No Longer Available WHEEL-RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

SPRING GREEN (0688)

No Longer Available WHEEL RIM

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for MTD

Not available

941-0401

29

Sleeve Bearing .752" I.D.

Part# 941-0401

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.04

914-0126

30

#9 Hi-Pro Key 3/16" x 3/4" Dia.

Part# 914-0126

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.00

714-0162

31

Cotter Pin 5/32" x 1-1/4" Lg.

Part# 714-0162

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

714-0143A

32

Klik Pin

Part# 714-0143A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.21

717-1414

33

79 Tooth Gear

Part# 717-1414

Note: NLA

OEM Warranty Repair Part for MTD

Not available

736-0188

34

Fl-Wash. .76" I.D. x 1.49" O.D.

Part# 736-0188

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

738-0869

35

Wheel Axle (616E)

Part# 738-0869

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $91.03

941-0598

36

Hex Flange Brg. .752" I.D.

Part# 941-0598

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.75

738-0830

38

Wheel Axle (646F & 666H)

Part# 738-0830

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.60

710-0502A

40

Hex Bolt 3/8-16 x 1.25"

Part# 710-0502A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

915-0249

41

Spr. Roll Pin 1.12" Lg.

Part# 915-0249

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-3052

42

Fl-Wash. .406" I.D. x 1" O.D.

Part# 736-3052

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0599

43

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

718-0240

44

Friction Wheel Hub

Part# 718-0240

Note: NLA

OEM Warranty Repair Part for MTD

Not available

784-5677

45

Friction Plate

Part# 784-5677

Note: NLA

OEM Warranty Repair Part for MTD

Not available

935-0243B

46

Friction Wheel Rubber

Part# 935-0243B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $16.20

710-3007

47

Hex Wash. Tap Scr. 3/8" Lg.

Part# 710-3007

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83
