SB-850 (316E646-190) - White Outdoor Snow Boss Snow Thrower (1996) Wheel Assemblies Parts Diagram

Snow Boss Snow Thrower

Wheel Assemblies Parts Diagram

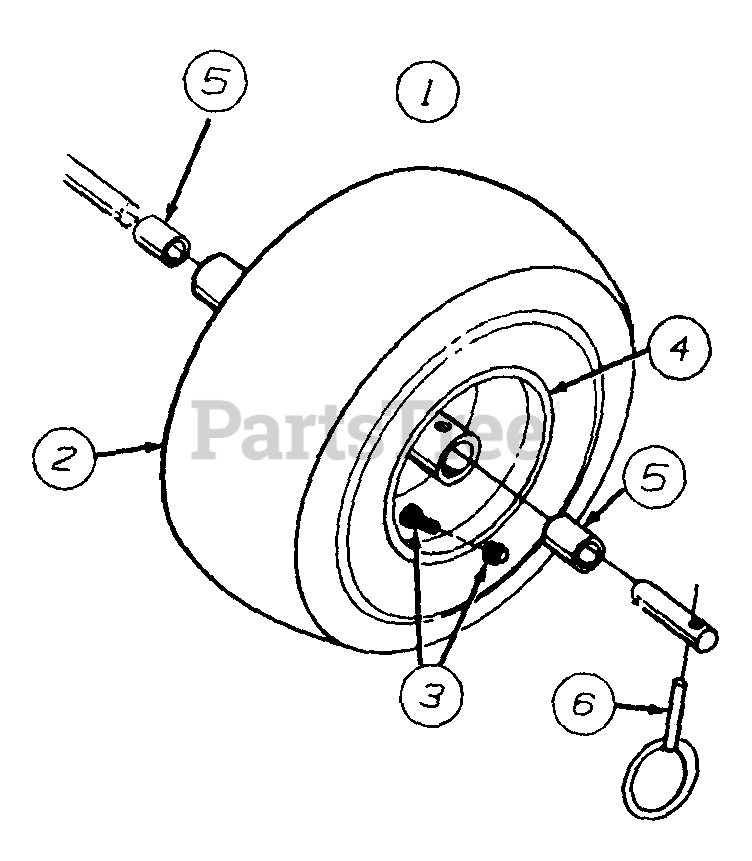

  • Title

1

MTD 734-1714A

Wheel Assembly Complete - 13 x 5

Note: For model 616E

Variations

734-1714A-0911

MTD 734-1714A-0911

No Longer Available WHL ASM 13 - Carlisle Gray (0911)

$

$

Not available

734-1714A-0915

MTD 734-1714A-0915

No Longer Available WHL ASM 13 - Duro Gray (0915)

$

$

Not available

734-1714A-0931

MTD 734-1714A-0931

No Longer Available WHEEL - Carlisle Beige (0931)

$

$

Not available

734-1714A-0951

MTD 734-1714A-0951

No Longer Available WHEEL - Carlisle Yellow (0951)

$

$

Not available

$

$

1

MTD 734-1709

Wheel Assembly Complete - 16 x 4.8

Note: For model 646F

Variations

734-1709-0911

MTD 734-1709-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

734-1709-0915

MTD 734-1709-0915

No Longer Available WHEEL - Duro Gray (0915)

$

$

Not available

734-1709-0931

MTD 734-1709-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

734-1709-0935

MTD 734-1709-0935

WHEEL ASM 16X4.8 - Duro Beige (0935)

$

$

Not available

734-1709-0941

MTD 734-1709-0941

WHEEL ASM 16X4.8 - Carlisle Yellow (0941)

$

$

Not available

$

$

1

MTD 734-1712

Wheel Assembly Complete - 16 x 6.5

Note: For model E666H

Variations

734-1712-0911

MTD 734-1712-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

$

$

Not available

734-1712-0931

MTD 734-1712-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

734-1712-0941

MTD 734-1712-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 734-1527

Tire Only - 13 x 5

Note: For model 616E

Variations

734-1527-0901

MTD 734-1527-0901

No Longer Available - Carlisle (0901)

$

$

Not available

734-1527-0905

MTD 734-1527-0905

No Longer Available TIRE-SNOW - Duro (0905)

$

$

Not available

$

$

2

MTD 734-1530

Tire Only - 16 x 4.8

Note: For model 646F

Variations

734-1530-0901

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$178.99

$

Usually ships in 3-6 days

0

734-1530-0905

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$178.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

2

MTD 734-1525

Tire Only - 16 x 6.5

Note: For model E666H

$172.99

$

In Stock, only 2 left!

0

3

MTD 934-0255

Air Valve

Note: For models 616E, 646F & E666H

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1713

Rim Only - 13 x 5

Note: For model 616E

Variations

734-1713-0499

MTD 734-1713-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

734-1713-0662

MTD 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

734-1713-0674

MTD 734-1713-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

734-1713-0688

MTD 734-1713-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

4

MTD 934-1708A

Rim Only - 16 x 4.8

Note: For model 646F

Variations

934-1708A-0499

MTD 934-1708A-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

934-1708A-0662

MTD 934-1708A-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

934-1708A-0674

MTD 934-1708A-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

934-1708A-0731

MTD 934-1708A-0731

No Longer Available WHEEL-RIM - YELLOW JACKET (0731)

$

$

Not available

$

$

4

MTD 734-1711

Rim Only - 16 x 6.5

Note: For model E666H

Variations

734-1711-0499

MTD 734-1711-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

734-1711-0629

MTD 734-1711-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

734-1711-0662

MTD 734-1711-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

734-1711-0674

MTD 734-1711-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

734-1711-0688

MTD 734-1711-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

5

MTD 941-0401

Sleeve Bearing

Note: For models 616E, 646F & E666H

$7.99

$

In Stock, Qty 5

0

6

MTD 714-0143A

Klick Pin

Note: For models 616E, 646F & E666H

$6.99

$

In Stock, only 2 left!

0
