SB-850 ST (314-648F190) - White Outdoor Snow Boss Snow Thrower (1994) Snow Throwers (Part 4) Parts Diagram

Snow Boss Snow Thrower

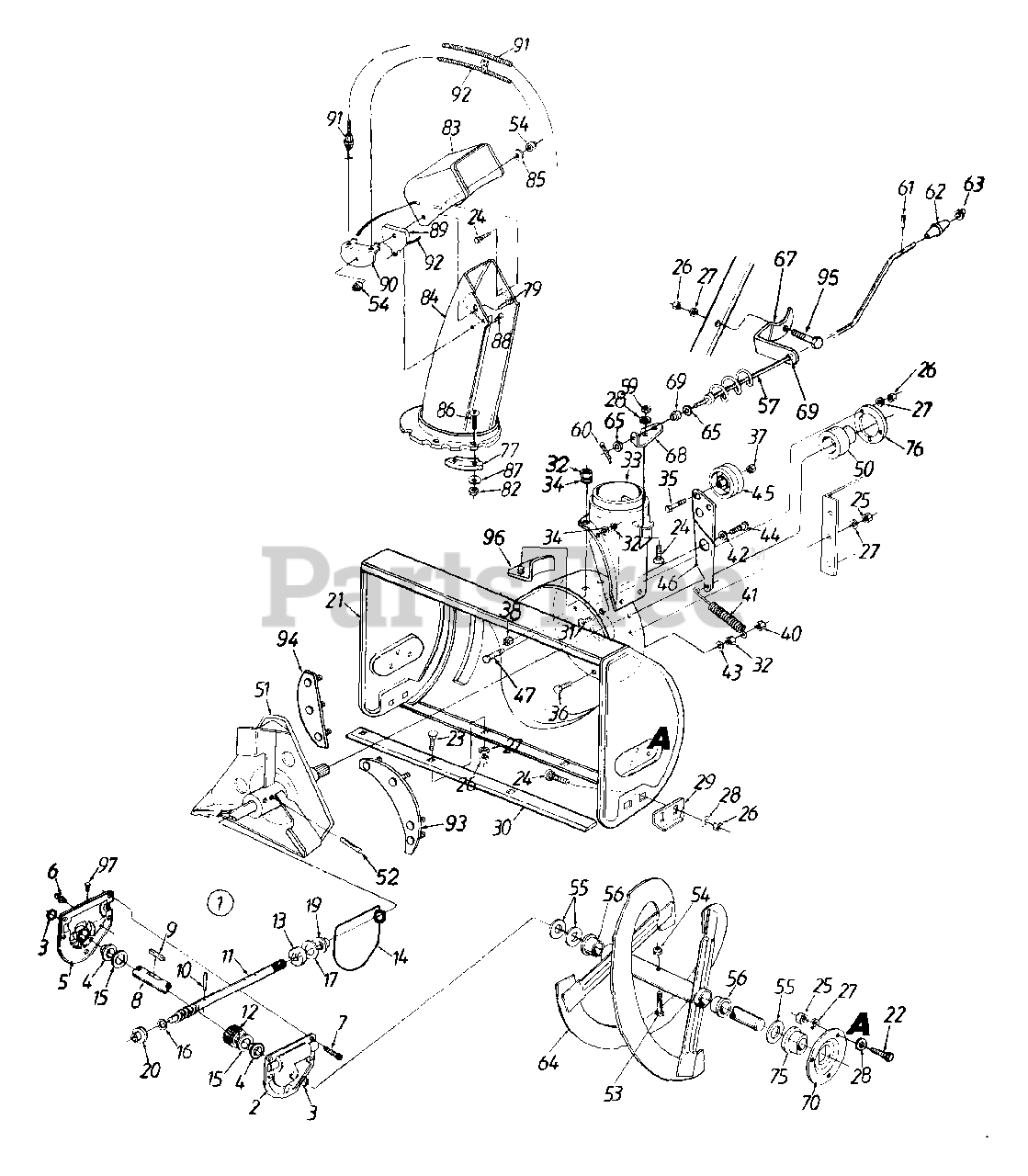

Snow Throwers (Part 4) Parts Diagram

  • Title

1

White Outdoor 618-0121

Worm Drive Ass'y. Comp.
(Superseded to 918-0415B)

Note: Code: N notates a new part (not previously existing).

$468.99

$

Usually ships in 3-6 days

0

2

White Outdoor 719-0292

Reducer Housing - L.H.

$

$

Not available

3

White Outdoor 721-0179

Oil Seal

$9.49

$

In Stock, Qty 20+

0

4

White Outdoor 741-0339

Flange Bearing .75" I.D.
(Superseded to 941-0339)

$13.99

$

In Stock, Qty 20+

0

5

White Outdoor 719-0293

Reducer Housing - R.H.

$

$

Not available

6

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0909

26" Auger Shaft
(Superseded to 711-0909A)

$

$

Not available

9

White Outdoor 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$8.49

$

In Stock, Qty 11

0

10

White Outdoor 715-0143

Spiral Pin 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

11

White Outdoor 717-0526

Impeller Shaft
(Superseded to 717P0526)

$115.99

$

In Stock, only 2 left!

0

12

White Outdoor 717-0528

Worm Gear
(Superseded to 917-04861)

$45.99

$

In Stock, Qty 20+

0

13

White Outdoor 718-0186

Thrust Collar

$8.99

$

In Stock, Qty 7

0

14

White Outdoor 721-0327

"O"-Ring (Special)

$6.99

$

In Stock, Qty 18

0

15

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0369

Fl-Wash. .5" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.99

$

In Stock, only 2 left!

0

19

White Outdoor 741-0376

Flange Bearing .75" I.D.
(Superseded to 941-0376)

$9.49

$

In Stock, only 3 left!

0

20

White Outdoor 748-0108

Flange Bearing .503" I.D.
(Superseded to 948-0108)

$9.49

$

In Stock, Qty 20+

0

21

White Outdoor 684-0040

26" Auger Housing Ass'y.

$

$

Not available

22

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

23

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

26

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 784-5580

Slide Shoe

Variations

White Outdoor 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$24.99

$

In Stock, Qty 10

0

White Outdoor 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$24.99

$

In Stock, Qty 10

0

White Outdoor 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$24.99

$

In Stock, Qty 7

0

White Outdoor 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$24.99

$

In Stock, Qty 20+

0

$24.99

$

In Stock, Qty 20+

0

30

White Outdoor 784-5579

26" Shave Plate
(Superseded to 790-00121-0637)

$38.99

$

In Stock, Qty 8

0

31

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

32

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

33

White Outdoor 731-1379

Chute Adapter
(Superseded to 731-1379D)

$69.99

$

In Stock, Qty 6

0

34

White Outdoor 736-0175

Spring Washer 1/4" I.D.
(Superseded to 936-0175)

$4.49

$

In Stock, only 3 left!

0

35

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$7.49

$

In Stock, Qty 11

0

36

White Outdoor 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

37

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, only 3 left!

0

38

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

41

White Outdoor 732-0611

Ext. Spring 3.6" Lg.
(Superseded to 932-0611)

$7.99

$

In Stock, Qty 8

0

42

White Outdoor 736-0167

Fl-Wash. 5/8" I.D. x 1.25"
(Superseded to 936-0167)

$7.49

$

In Stock, Qty 5

0

43

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

44

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$11.99

$

In Stock, only 2 left!

0

45

White Outdoor 756-0178

Fl-Idler 2.75" O.D.

$21.99

$

In Stock, only 2 left!

0

46

White Outdoor 784-5632

Auger Idler Brkt.
(Superseded to 984-0064-0637)

Variations

White Outdoor 784-5632-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$34.99

$

In Stock, only 2 left!

0

$34.99

$

In Stock, only 2 left!

0

47

White Outdoor 710-1087

Hex Bolt 5/16-18 x 5/8" Lg.
(Superseded to 710-3038)

$5.49

$

In Stock, only 1 left!

0

50

White Outdoor 741-0309

Ball Bearing .75" I.D.
(Superseded to 941-0309)

$79.99

$

In Stock, Qty 20+

0

51

White Outdoor 705-5187A

Blower Fan Ass'y.
(Superseded to 984-0065-0637)

Variations

White Outdoor 705-5187A-0637

Impeller Assembly - POWDER BLACK (0637)

$95.99

$

In Stock, only 4 left!

0

$95.99

$

In Stock, only 4 left!

0

52

White Outdoor 715-0114

Spiral Pin 1.5" Lg.

$9.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0890

Shear Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

55

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49"

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 741-0493A

Flange Bushing .8" I.D.
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

57

White Outdoor 684-0022

Chute Crank Ass'y.
(Superseded to 984-0022)

$105.99

$

In Stock, only 2 left!

0

59

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.99

$

In Stock, Qty 6

0

61

White Outdoor 715-0138

Roll Pin 1/8" Dia. x .63" Lg.
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

62

White Outdoor 720-0201A

Chute Crank Knob

$11.99

$

In Stock, only 2 left!

0

63

White Outdoor 726-0100

Push Nut

$4.99

$

In Stock, only 1 left!

0

64

White Outdoor 705-5193

Spiral Ass'y. - L.H.
(Superseded to 684-04183-0637)

$

$

Not available

White Outdoor 705-5192

Spiral Ass'y. - R.H.
(Superseded to 684-04182-0637)

Note: Not shown

Variations

White Outdoor 705-5192-0483

Spiral Assembly, RH 26" - CHARCOAL GRAY (0483)

$199.99

$

Usually ships in 3-6 days

0

White Outdoor 705-5192-0498

Spiral Assembly, RH 26" - OLD CUB YELLOW (0498)

$199.99

$

Usually ships in 3-6 days

0

White Outdoor 705-5192-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$199.99

$

Usually ships in 3-6 days

0

White Outdoor 705-5192-0638

Spiral Assembly, RH 26" - MTD/TROY-BILT RED (0638)

$199.99

$

Usually ships in 3-6 days

0

White Outdoor 705-5192-0662

Spiral Assembly, RH 26" - OYSTER GRAY (0662)

$199.99

$

Usually ships in 3-6 days

0

$199.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 13

0

67

White Outdoor 784-5678

Upper Chute Crank Brkt.

Variations

White Outdoor 784-5678-0637

No Longer Available BRACKET-CHUTE CRAN - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 784-5647

Lower Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$15.99

$

In Stock, only 3 left!

0

$15.99

$

In Stock, only 3 left!

0

69

White Outdoor 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 05845A

Bearing Housing
(Superseded to 05845C-0637)

Variations

White Outdoor 05845A-0637

Housing Bearing - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

75

White Outdoor 741-0300

Plastic Bearing w/Flats
(Superseded to 941-0300)

$15.99

$

In Stock, Qty 11

0

76

White Outdoor 05931

Bearing Housing
(Superseded to 05931A)

$11.99

$

Usually ships in 3-6 days

0

77

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$4.49

$

In Stock, Qty 5

0

82

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

83

White Outdoor 731-1320

Upper Chute
(Superseded to 731-04427B)

$17.99

$

In Stock, Qty 6

0

84

White Outdoor 731-1300

Lower Chute
(Superseded to 731-1300E)

$60.99

$

In Stock, Qty 7

0

85

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 19

0

86

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

87

White Outdoor 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

88

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 8

0

89

White Outdoor 731-1313

Cable Guide
(Superseded to 731-1313C)

$12.99

$

In Stock, Qty 16

0

90

White Outdoor 784-5594

Cable Bracket

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 2 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$12.99

$

In Stock, only 2 left!

0

$11.99

$

Usually ships in 3-6 days

0

91

White Outdoor 746-0896

Chute Control Cable
(Superseded to 946-0896)

$60.99

$

Usually ships in 3-6 days

0

92

White Outdoor 746-0901

Chute Control Cable w/Clip
(Superseded to 946-0901)

$67.99

$

Usually ships in 3-6 days

0

93

White Outdoor 684-0045

Plate Reinforcement Ass'y. - L.H.

Variations

White Outdoor 684-0045-0637

PLATE ASSY-LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0045-0638

PLATE ASSY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

94

White Outdoor 684-0046

Plate Reinforcement Ass'y. - R H.

Variations

White Outdoor 684-0046-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

95

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

96

White Outdoor 705-5225

Chute Reinforcement

Note: Code: N notates a new part (not previously existing).

$

$

Not available

97

White Outdoor 721-0325

Plug

$4.99

$

In Stock, only 3 left!

0
