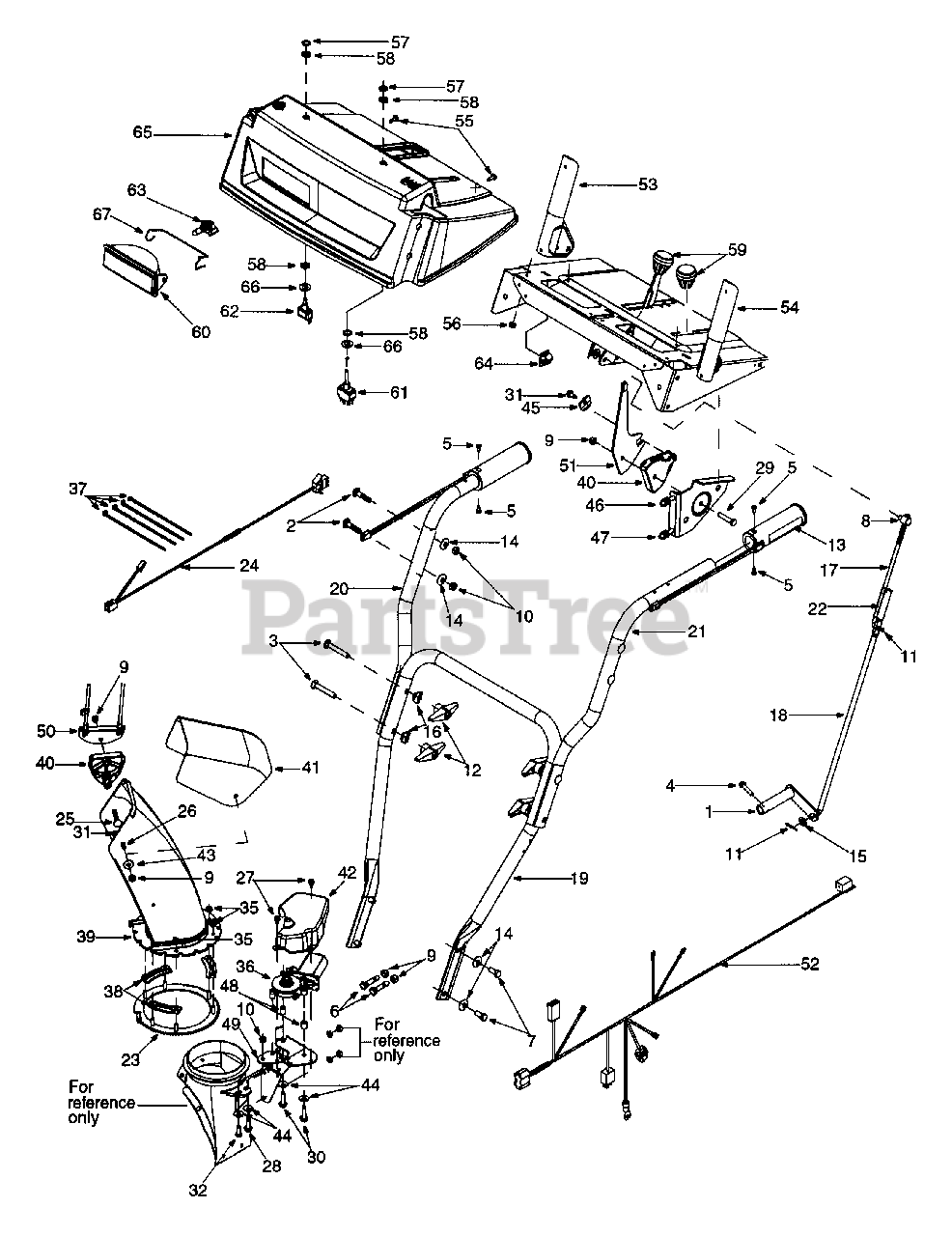

SB-850 W (31AH5F3F190) - White Outdoor Snow Boss Snow Thrower (2000)

Snow Boss Snow Thrower

SB-850 W (31AH5F3F190) - White Outdoor Snow Boss Snow Thrower (2000) > Parts Diagrams (6) > Handle Assembly / Chute Assembly

  • Title
684-0008A

1

Shift Arm Assembly

Part# 684-0008A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shift Arm Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.00

710-0262

2

Carriage Bolt 5/16-18 x 1.5"

Part# 710-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0449

3

Carriage Bolt 5/16-18 x 2.25"

Part# 710-0449 (Superseded to 710-0572)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0788

4

TT Screw 1/4-20 x 1"

Part# 710-0788

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

710-0837

5

C-Sunk Screw #10-16 x 0.625"

Part# 710-0837

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0890A

6

Shear Bolt 5/16-18 x 1.5"

Part# 710-0890A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.16

710-3008

7

Hex Screw 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

711-0677

8

Ferrule

Part# 711-0677 (Superseded to 911-0677)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.55

712-0429

9

Hex Lock Nut 5/16-18

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-3010

10

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

714-0104

11

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

720-0284

12

Handle Knob

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.03

725-1757

13

Heated Grip

Part# 725-1757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $72.32

736-0242

14

Belleville Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0275

15

Flat Washer

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

736-0451

16

Saddle Washer

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

747-0620A

17

Shift Rod: Upper

Part# 747-0620A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.53

747-0621

18

Shift Rod: Lower

Part# 747-0621

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.74

749-0951

19

Lower Handle

Part# 749-0951

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-LOWER SNOW

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.73

MTD/TROY-BILT RED (0638)

HANDLE-LOWER SNOW

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.73

749-0952A

20

Upper Handle: L Style RH

Part# 749-0952A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-UPPER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-UPPER-RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

HANDLE-UPPER-RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

749-0953A

21

Upper Handle: L Style LH

Part# 749-0953A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-UPPER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-UPPER-LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

HANDLE-UPPER-LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

750-0963

22

Connector: Shift Rod

Part# 750-0963 (Superseded to 950-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.60

618-0419

23

Gear Assembly: Ring

Part# 618-0419

OEM Warranty Repair Part for White Outdoor

Not available

629-0937

24

Electric Harness: Lower

Part# 629-0937

OEM Warranty Repair Part for White Outdoor

Not available

710-0262

25

Carriage Bolt: 5/16-18 x 1.5"

Part# 710-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0451

26

Carriage Bolt: 5.16-18 x .750"

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0599

27

TT Screw: 1/4-20 x 0.5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0602

28

TT Screw: 5/16-18 x 1"

Part# 710-0602

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

710-0805

29

Hex Screw: 5/16-18 x 1.5"

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0817

30

TT Screw: 5/16-18 x 1.25"

Part# 710-0817

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.27

710-0896

31

Hex Screw AB: 1/4-14 x 0.625"

Part# 710-0896

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-3008

32

Hex Screw: 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3027

35

Hex Flange Lock Nut

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

724-0249

36

Electric Motor: Chute Crank

Part# 724-0249 (Superseded to 953-0912A)

OEM Warranty Repair Part for White Outdoor

Not available

725-0157

37

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

731-0851A

38

Chute Flange Keeper

Part# 731-0851A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

731-1300A

39

Lower Chute

Part# 731-1300A (Superseded to 731-1300E)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.08

731-1313C

40

Cable Guide: Chute Tilt

Part# 731-1313C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.76

731-1320

41

Upper Chute

Part# 731-1320 (Superseded to 731-04427A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.40

731-2279

42

Motor Cover: Chute Rotation

Part# 731-2279

OEM Warranty Repair Part for White Outdoor

Not available

736-0159

43

5/16 Washer

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.76

736-0242

44

Belleville Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0506

45

Special Washer

Part# 736-0506 (Superseded to 736-0506A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

746-0896

46

Control Cable

Part# 746-0896 (Superseded to 946-0896)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.97

746-0901

47

Control Cable

Part# 746-0901 (Superseded to 946-0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.69

750-1232

48

Spacer

Part# 750-1232

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.50

782-0599

49

Motor Bracket

Part# 782-0599

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-MOTOR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5594

50

Cable Bracket

Part# 784-5594

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

Cable Bracket

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.53

POWDER BLACK (0637)

Cable Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.53

CUB YELLOW-99 (0716)

Cable Bracket

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.53

784-5604

51

Handle: Chute Tilt

Part# 784-5604

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Chute Handle Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.55

629-0936

52

Harness Assembly: Upper

Part# 629-0936 (Superseded to 629-0936A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $115.10

684-0036

53

Handle Assembly RH

Part# 684-0036 (Superseded to 684-0036A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.19

684-0037

54

Handle Assembly LH

Part# 684-0037 (Superseded to 684-0037B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.92

710-1003

55

Special Hex Screw

Part# 710-1003 (Superseded to 710-04669)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.21

712-0271

56

Hex Sems Nut: 1/4-20

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0693

57

Hex Nut

Part# 712-0693

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

716-0398

58

Lock Ring: Toggle Switch

Part# 716-0398

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.26

720-0232

59

Shift Knob

Part# 720-0232 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.74

725-1672

60

Lamp Housing

Part# 725-1672 (Superseded to 925-1672)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.13

725-1755

61

Toggle Switch: Double Throw

Part# 725-1755 (Superseded to 925-1755)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.23

725-1756

62

Toggle Switch: Single Throw

Part# 725-1756 (Superseded to 925-1756)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.97

725-1759

63

Halogen Lamp: 50W, 12V

Part# 725-1759 (Superseded to 925-1759)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.11

726-0152

64

Mounting Clamp

Part# 726-0152

OEM Warranty Repair Part for White Outdoor

Not available

731-2276

65

Handle Panel

Part# 731-2276

OEM Warranty Repair Part for White Outdoor

Not available

736-0226

66

Flat Washer

Part# 736-0226 (Superseded to 936-0226)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

747-1136

67

Headlight Retainer

Part# 747-1136

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.66
