SB-855 4X4 (31AH4G3F190) - White Outdoor Snow Boss Snow Thrower (2000) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

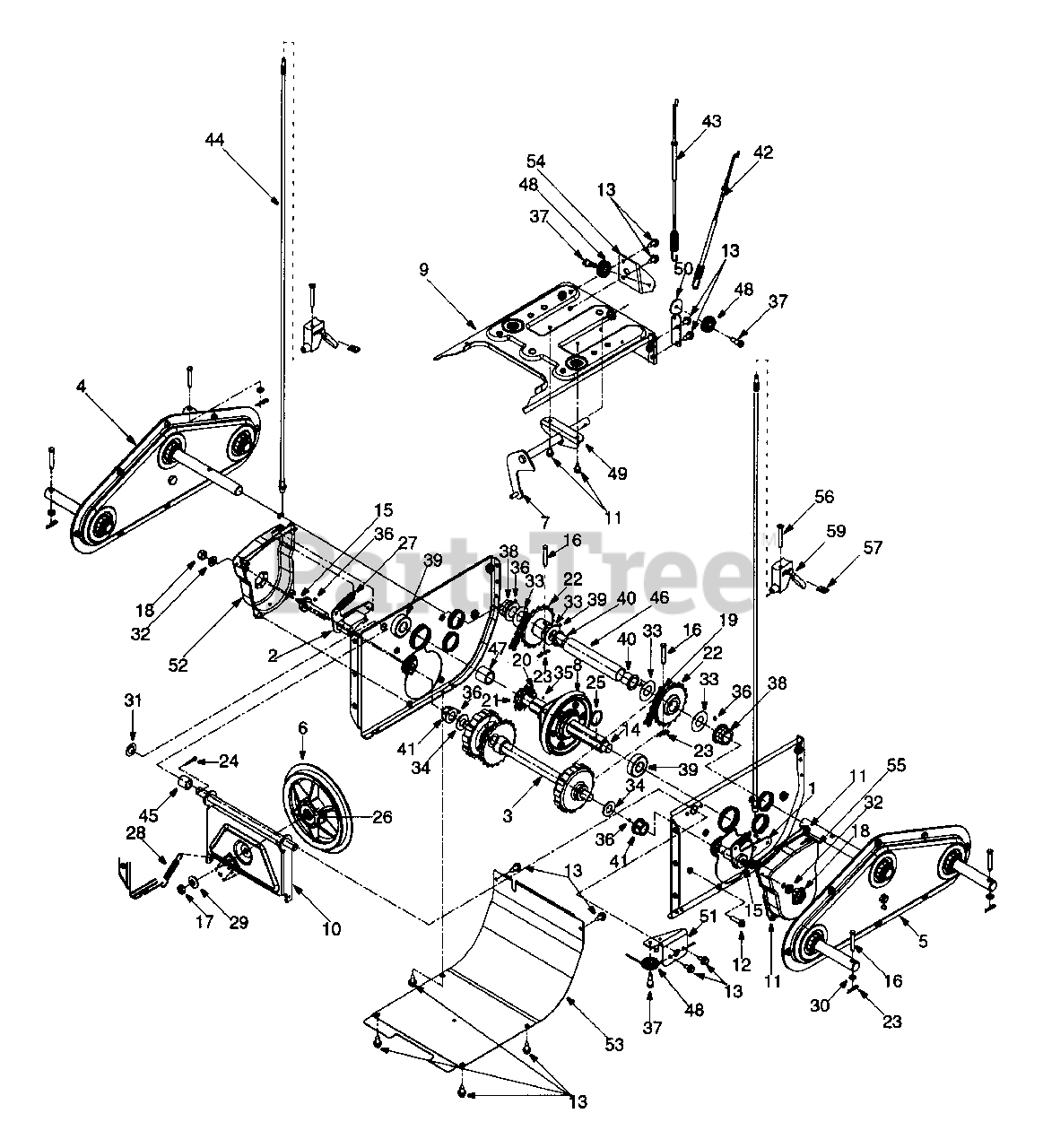

Frame Assembly Parts Diagram

  • Title

1

White Outdoor 618-0043

Dogg Assembly: RH

$22.99

$

In Stock, only 1 left!

0

2

White Outdoor 618-0044

Dogg Assembly: LH

$22.99

$

In Stock, only 1 left!

0

3

White Outdoor 618-0303A

Shift Assembly: Steerable Drive
(Superseded to 618-0575)

$

$

Not available

4

618-0420-0662

Chain Case Assembly: RH

$

$

Not available

5

618-0421-0662

Chain Case Assembly: LH

$

$

Not available

6

White Outdoor 656-0012A

Friction Wheel Disc Assy.
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

7

White Outdoor 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

White Outdoor 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

8

White Outdoor 984-0042C

Wheel Assembly, Friction

Note: See 'Friction Wheel Assembly' for breakdown

$128.99

$

In Stock, only 4 left!

0

9

White Outdoor 684-0130-0662

Transmission Frame Assembly

$

$

Not available

10

White Outdoor 684-0131A

Support Bracket Assembly
(Superseded to 684-0131A-0637)

Variations

White Outdoor 684-0131A-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 710-0599

Hex Washer Hd. TT Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-0788

Hex Washer Hd. TT Screw 1/4-20 x 1.0"

$6.99

$

In Stock, only 4 left!

0

13

White Outdoor 710-1652

Hex Washer Hd. TT Screw 1/4-20 x .625"

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 711-1267

Drive Shaft

$70.99

$

In Stock, only 1 left!

0

15

White Outdoor 711-1268

Actuator Shaft

$

$

Not available

16

White Outdoor 711-1364

Pin

$7.99

$

In Stock, only 2 left!

0

17

White Outdoor 712-0711

Jam Nut 3/8-24 Gr.8

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-3017

Hex Nut: 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 713-0131

Chain

$

$

Not available

20

White Outdoor 713-0233

Chain

$38.99

$

In Stock, only 1 left!

0

21

White Outdoor 713-0413

Sprocket: 19T

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor 713-0473

Sprocket

$

$

Not available

23

White Outdoor 714-0104

Pin

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

25

White Outdoor 716-0102

Snap Ring

$4.99

$

In Stock, Qty 20+

0

26

N/A

Adhesive: Loctite(R)

Note: Red 271, Purchase locally

$

$

Not available

27

White Outdoor 732-0209

Extension Spring
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

28

White Outdoor 732-0264

Extension Spring
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0142

Flat Washer

$4.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0160

Flat Washer

$3.99

$

In Stock, only 2 left!

0

32

White Outdoor 736-0169

Lock Washer

$3.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0351

Flat Washer

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 736-0626

Flat Washer

$8.99

$

In Stock, only 2 left!

0

35

N/A

Lubricant

Note: Purchase locally

$

$

Not available

36

N/A

Grease

Note: Purchase locally

$

$

Not available

37

White Outdoor 738-0924

Shoulder Screw
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

38

White Outdoor 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$11.99

$

In Stock, Qty 20+

0

39

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

40

White Outdoor 741-0701

Flange Bushing

$

$

Not available

41

White Outdoor 741-1111

Hex Flange Bearing

$8.99

$

In Stock, only 2 left!

0

42

White Outdoor 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$23.99

$

In Stock, Qty 20+

0

43

White Outdoor 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$25.99

$

In Stock, Qty 20+

0

44

White Outdoor 746-0956

Steering Cable
(Superseded to 946-0956C)

$21.99

$

In Stock, Qty 8

0

45

White Outdoor 748-0190

Spacer

$5.99

$

In Stock, only 1 left!

0

46

White Outdoor 750-1161

Support Tube: Axle
(Superseded to 750-1161A)

$43.99

$

Usually ships in 3-6 days

0

47

White Outdoor 750-1162

Spacer

$

$

Not available

48

White Outdoor 756-0625

Roller Cable

$8.99

$

In Stock, Qty 20+

0

49

White Outdoor 784-5590

Shift Bracket

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

50

White Outdoor 784-5687A

Auger Clutch Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

White Outdoor 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

White Outdoor 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

52

784-5730A-0662

Retaining Shaft RH: Actuator Drive

$

$

Not available

53

White Outdoor 784-5732-0662

Frame Cover
(Superseded to 784-5638A-0637)

$

$

Not available

54

784-5733-0662

Roller Bracket: Drive Cable

$

$

Not available

55

784-5740-0662

Retaining Shaft LH: Actuator Drive

$

$

Not available

56

White Outdoor 710-1233

Oval C-Sunk Machine Screw

$4.49

$

In Stock, Qty 13

0

57

White Outdoor 712-0127

Weld Nut

$3.49

$

In Stock, Qty 13

0

58

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

59

White Outdoor 746-0950

Turn Trigger
(Superseded to 746-0950A)

$20.99

$

In Stock, only 1 left!

0
