SB-855 W (31AH5C3F190) - White Outdoor Snow Boss Snow Thrower (2002) Gear Assembly Parts Diagram

Snow Boss Snow Thrower

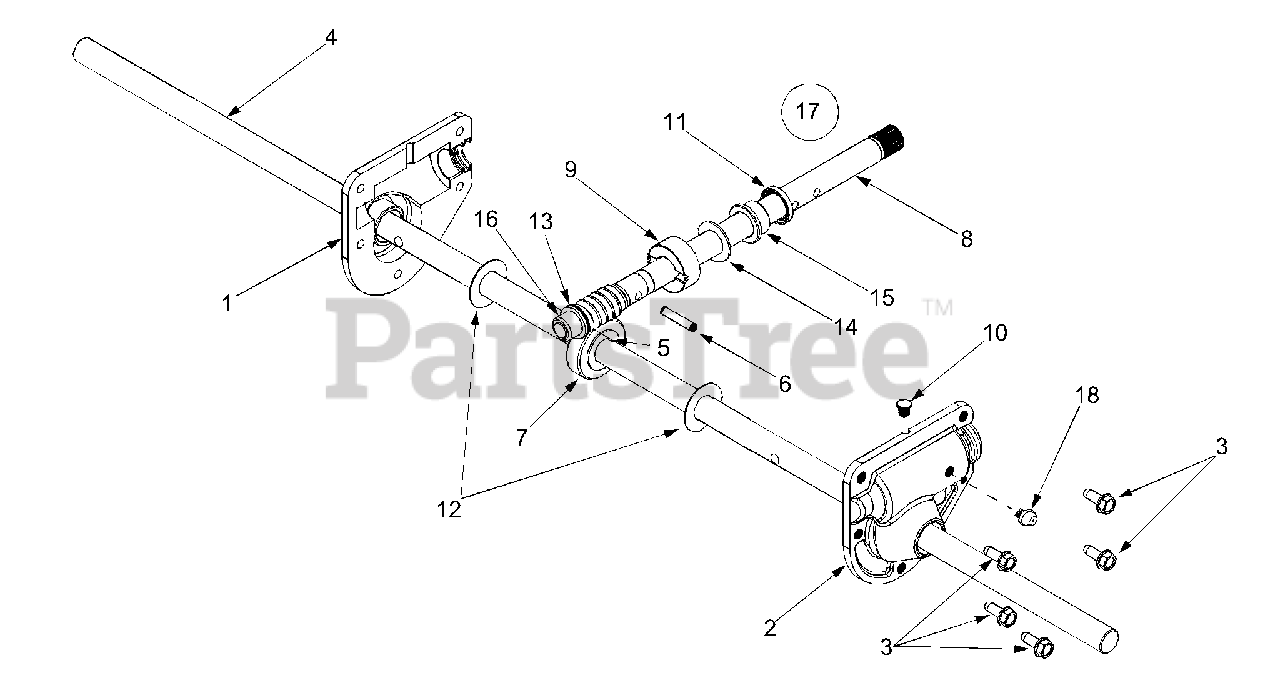

Gear Assembly Parts Diagram

  • Title

1

White Outdoor 618-0123

RH Housing
(Superseded to 918-0123A)

Note: (Incl. Ref. 17, 18)

$48.99

$

In Stock, Qty 14

0

2

White Outdoor 618-0418

LH Housing w/Fitting
(Superseded to 918-0418A)

Note: (Incl. Ref. 17, 18)

$57.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 711-0909A

Spiral Axle, 26" (850W)

$

$

Not available

White Outdoor 711-1024

Spiral Axle, 30" (1150W)
(Superseded to 711-1024A)

$129.99

$

Usually ships in 3-6 days

0

5

White Outdoor 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

6

White Outdoor 715-0143

Spring Spiral Pin, .25 x 1.25

$4.49

$

In Stock, Qty 15

0

7

White Outdoor 717-0528

Worm Gear, 20-tooth
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

8

White Outdoor 717-0526

Worm Shaft
(Superseded to 717P0526)

$101.99

$

In Stock, only 2 left!

0

9

White Outdoor 718-0186

Thrust Collar

$7.99

$

In Stock, only 2 left!

0

10

White Outdoor 721-0325

Grease Plug

$4.49

$

In Stock, only 1 left!

0

11

White Outdoor 721-0327

Grease Seal

$6.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0351

Flat Washer, .76 x 1.5 x .030

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 6

0

14

White Outdoor 736-0445

Flat Washer, .76 x 1.5 x .060

$3.99

$

In Stock, only 3 left!

0

15

White Outdoor 741-0662

Flange Bearing, .75 x 1.0 x .59

$9.99

$

In Stock, Qty 20+

0

16

White Outdoor 741-0663

Flange Bearing, .503 ID x .75 OD

$8.99

$

In Stock, Qty 20+

0

17

White Outdoor 618-0415A

Gear Ass'y Complete, 26" (850W)
(Superseded to 918-0415B)

$411.99

$

Usually ships in 3-6 days

0

White Outdoor 618-0417A

Gear Ass'y Complete, 30" (1150W)
(Superseded to 918-0417B)

$372.99

$

Usually ships in 3-6 days

0

18

White Outdoor 737-3000

Grease Fitting, 3/16" Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0
