SB-928 (31AE9M6G590) - White Outdoor Snow Boss Snow Thrower (2007) General Assembly Parts Diagram

Snow Boss Snow Thrower

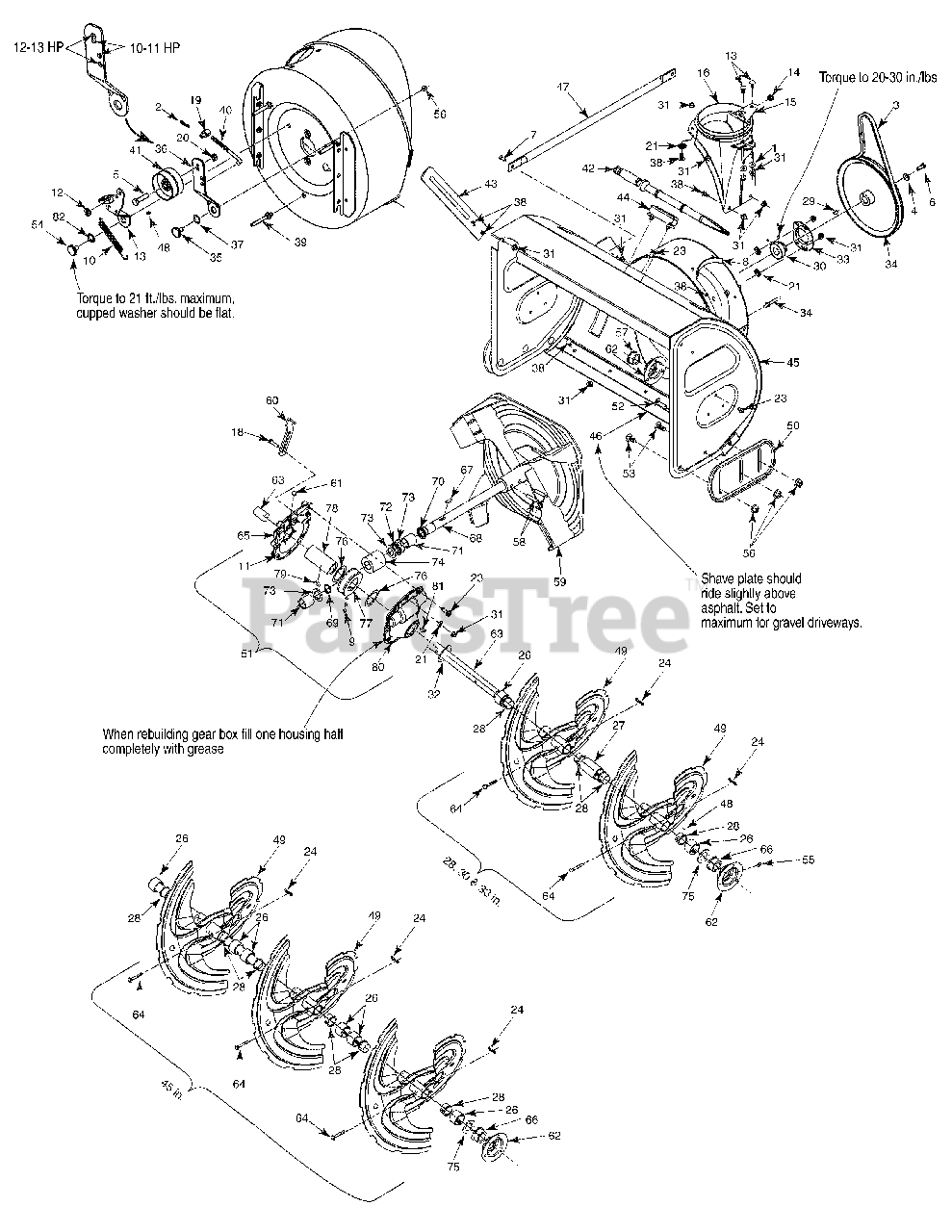

General Assembly Parts Diagram

  • Title

1

MTD 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

2

MTD 914-0104

Int. Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

3

MTD 954-0222A

V-Belt 1/2 x 44" Lg.

$40.99

$

In Stock, only 1 left!

0

4

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .06

$3.99

$

In Stock, Qty 20+

0

5

MTD 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

6

MTD 710-0371

Hex Screw 5/16-18 x .88
(Superseded to 710-1880)

$4.49

$

In Stock, Qty 11

0

7

MTD 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

8

MTD 784-5711-0637

Chute Bracket

$

$

Not available

9

MTD 737-0168A

Shell Alvania Grease (3 oz.)

$28.99

$

In Stock, only 1 left!

0

10

MTD 732-0858

Extension Spring .470 Dia. x 4.75

$23.99

$

In Stock, Qty 6

0

11

MTD n/a

Ultra Grey Loctite #5699

$

$

Currently unavailable

12

MTD 936-3008

Flat Washer .344 ID x .75 OD x .120

$6.49

$

In Stock, only 1 left!

0

13

MTD 918-0281A

Brake Bracket Ass’y (900 Series)

$60.99

$

In Stock, only 4 left!

0

14

MTD 941-0475

Plastic Bushing .380 ID

$3.99

$

In Stock, Qty 20+

0

15

MTD 784-5123-0637

Chute Brkt.

$16.99

$

In Stock, only 1 left!

0

16

MTD 731-1696B

Chute Adapter

$84.99

$

In Stock, only 2 left!

0

17

MTD 736-04216

Cupped Washer .340 ID x .872 OD x .06

$6.49

$

In Stock, only 2 left!

0

18

MTD 710-0528

Hex Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

19

MTD 911-0677

Adjustment Ferrule

$16.99

$

In Stock, only 4 left!

0

20

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

21

MTD 926-04012

Push-on Nut .25 diam
(Superseded to 726-04012)

$

$

Not available

22

MTD 712-3004A

Flange L-Nut 5/16-18 Gr. 5 Nylon

$3.49

$

In Stock, Qty 20+

0

23

MTD 710-04484

Hex TT Screw 3/8-16 x .75

$3.49

$

In Stock, Qty 20+

0

24

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

26

MTD 731-05163

Spacer 1.5 x 1.0 ID x 1.0" Lg.

$6.99

$

In Stock, Qty 20+

0

27

MTD 731-05162

Spacer 1.5 x 1.0 ID x 2.5" Lg.

$6.99

$

Usually ships in 3-6 days

0

28

MTD 741-0494

Flange Bushing 1.05 ID x 1.16 OD

$3.99

$

Usually ships in 3-6 days

0

29

MTD 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

30

MTD 941-04024

Self-Aligning Bearing .875 ID

$60.99

$

In Stock, only 1 left!

0

31

MTD 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-3046A

Flat Washer 1.010 x 1.88 x .060

$8.49

$

Usually ships in 3-6 days

0

33

MTD 05244B

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

34

MTD 756-0243

1/2" V-Pulley .875 ID x 10.12 OD

$88.99

$

Usually ships in 3-6 days

0

35

MTD 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

36

MTD 784-0385D

Auger Idler Bracket

$27.99

$

In Stock, only 1 left!

0

37

MTD 736-0174

Wave Washer .625 ID x .885 OD x .015

$6.49

$

Usually ships in 3-6 days

0

38

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-04606A

Screw 5/16-18 x .43

$6.99

$

In Stock, only 2 left!

0

40

MTD 747-0980A

Auger Idler Rod

$44.99

$

Usually ships in 3-6 days

0

41

MTD 756-0178

Flat Idler Pulley

$18.99

$

In Stock, only 4 left!

0

42

MTD 931-2643

Cleanout Tool

$18.99

$

In Stock, Qty 7

0

43

MTD 790-00181

Drift Cutter

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$32.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$32.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0721

BLADE-GUIDE (DRIFT - SEARS RED (0721)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-4021

BLADE-GUIDE - CUB YELLOW 2 (4021)

$37.99

$

Usually ships in 3-6 days

0

MTD 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

44

MTD 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

45

MTD 684-04218

Snowthrower Housing Ass’y 28 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04218-0606

HOUSING ASM:AUGER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04218-0662

HOUSING ASM:AUGER - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04218-0716

HOUSING ASM:AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

MTD 684-04220

Snowthrower Housing Ass’y 33 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04220-0716

HOUSING ASM-AUGER - CUB YELLOW-99 (0716)

$703.99

$

Usually ships in 3-6 days

0

MTD 684-04220-0606

HOUSING ASM-AUGER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04220-0691

HOUSING ASM-AUGER - BLACK JACK (0691)

$

$

Not available

$612.99

$

Usually ships in 3-6 days

0

45

MTD 684-04224

Snowthrower Housing Ass'y 45 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04224-0606

HOUSING ASM-AUGER - MAJESTIC ORANGE (0606)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0650

HOUSING ASM-AUGER - RED METALLIC (0650)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0662

HOUSING ASM-AUGER - OYSTER GRAY (0662)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0665

HOUSING ASM-AUGER - YARDMAN GREEN (0665)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0668

HOUSING ASM-AUGER - MOSS GREEN (0668)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0691

HOUSING ASM-AUGER - BLACK JACK (0691)

$899.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0716

HOUSING ASM-AUGER - CUB YELLOW-99 (0716)

$782.99

$

Usually ships in 3-6 days

0

MTD 684-04224-0721

HOUSING ASM-AUGER - SEARS RED (0721)

$899.99

$

Usually ships in 3-6 days

0

MTD 684-04224-4044

HOUSING ASM-AUGER - CRAFTSMAN RED (4044)

$899.99

$

Usually ships in 3-6 days

0

$782.99

$

Usually ships in 3-6 days

0

46

MTD 784-5716B

Shave Plate 28 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5716B-0606

PLATE-SHAVE 28" - MAJESTIC ORANGE (0606)

$45.99

$

In Stock, only 1 left!

0

MTD 784-5716B-0637

PLATE-SHAVE 28" - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5716B-0650

PLATE-SHAVE 28" - RED METALLIC (0650)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5716B-4021

PLATE-SHAVE 28" - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

46

MTD 784-5714B

Shave Plate 33 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5714B-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0606

Shave Plate, 33" - MAJESTIC ORANGE (0606)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0638

PLATE:SHAVE:33" - MTD/TROY-BILT RED (0638)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0650

Shave Plate, 33" - RED METALLIC (0650)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-4021

PLATE:SHAVE:33" - CUB YELLOW 2 (4021)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0691

PLATE:SHAVE:33" - BLACK JACK (0691)

$52.99

$

In Stock, only 1 left!

0

$47.99

$

Usually ships in 3-6 days

0

46

MTD 790-00280

Shave Plate 45 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00280-4021

Shave Plate, 45" - CUB YELLOW 2 (4021)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0691

Shave Plate, 45" - BLACK JACK (0691)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0638

Shave Plate, 45" - MTD/TROY-BILT RED (0638)

$57.99

$

In Stock, only 1 left!

0

$52.99

$

Usually ships in 3-6 days

0

47

MTD 749-1117

Support Tubing (33" & 45" Only)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

MTD 749-1117-0716

SUPPORT TUBE (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

48

MTD n/a

Arctic Grease

$

$

Currently unavailable

49

MTD 684-04151

Augers LH 28, 33 & 45 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04151-0606

Spiral Assembly, LH 900 - MAJESTIC ORANGE (0606)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0637

SPIRAL ASM:LH 900 - POWDER BLACK (0637)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0638

SPIRAL ASM:LH 900 - MTD/TROY-BILT RED (0638)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0650

SPIRAL ASM:LH 900 - RED METALLIC (0650)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0662

SPIRAL ASM:LH 900 - OYSTER GRAY (0662)

$201.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0674

SPIRAL ASM:LH 900 - YARDMAN YELLOW (0674)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0716

SPIRAL ASM:LH 900 - CUB YELLOW-99 (0716)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04151-0717

SPIRAL ASM:LH 900 - SILVER MIST (0717)

$201.99

$

Usually ships in 3-6 days

0

MTD 684-04151-4021

SPIRAL ASM:LH 900 - CUB YELLOW 2 (4021)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04151-4028

SPIRAL ASM:LH 900 - SEARS YELLOW (4028)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04151-4044

SPIRAL ASM:LH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$231.99

$

Usually ships in 3-6 days

0

49

MTD 684-04152

Augers RH 28, 33 & 45 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04152-0638

SPIRAL ASM:RH 900 - MTD/TROY-BILT RED (0638)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0499

SPIRAL ASM-RH 900 - CUB BEIGE (0499)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0606

SPIRAL ASM:RH 900 - MAJESTIC ORANGE (0606)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0637

SPIRAL ASM:RH 900 - POWDER BLACK (0637)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0650

SPIRAL ASM:RH 900 - RED METALLIC (0650)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0662

SPIRAL ASM:RH 900 - OYSTER GRAY (0662)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0674

SPIRAL ASM:RH 900 - YARDMAN YELLOW (0674)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0716

SPIRAL ASM:RH 900 - CUB YELLOW-99 (0716)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0717

SPIRAL ASM:RH 900 - SILVER MIST (0717)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-4021

SPIRAL ASM:RH 900 - CUB YELLOW 2 (4021)

$249.99

$

Usually ships in 3-6 days

0

MTD 684-04152-4028

SPIRAL ASM:RH 900 - SEARS YELLOW (4028)

$231.99

$

Usually ships in 3-6 days

0

MTD 684-04152-4044

SPIRAL ASM:RH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$201.99

$

Usually ships in 3-6 days

0

50

MTD 784-5697

Reversible Slide Shoe

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$42.99

$

In Stock, Qty 7

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$42.99

$

In Stock, only 2 left!

0

$42.99

$

Usually ships in 3-6 days

0

51

MTD 618-0436

Worm Gear Box Ass’y

$710.99

$

Usually ships in 3-6 days

0

51

MTD 618-0436

Worm Gear Box Ass’y (w/grease fitting)

$710.99

$

Usually ships in 3-6 days

0

52

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 10

0

54

MTD 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

55

MTD 937-3000

Grease Fitting (optional)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

57

MTD 941-0170

Flange bearing w/flats

$17.99

$

In Stock, only 2 left!

0

58

MTD 915-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7
(Superseded to 715-0118)

$

$

Not available

59

MTD 684-0090B

Blower Fan Ass’y Complete

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0090B-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$425.99

$

Usually ships in 3-6 days

0

MTD 684-0090B-0717

IMPELLER ASM:16" - SILVER MIST (0717)

$425.99

$

Usually ships in 3-6 days

0

$344.99

$

Usually ships in 3-6 days

0

60

MTD 784-5076-0637

Gear Housing Support Bracket

$43.99

$

Usually ships in 3-6 days

0

61

MTD 721-0325

Barbed Plug

$4.49

$

In Stock, only 1 left!

0

62

MTD 05845C

Bearing Housing

Variations

MTD 05845C-0637

Bearing Housing - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

MTD 05845C-0665

HOUSING:BEARING - YARDMAN GREEN (0665)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

62

MTD 784-0315A-0637

Bearing Housing

$

$

Not available

63

MTD 738-04156

Spiral Axle 28 inches

$149.99

$

Usually ships in 3-6 days

0

63

MTD 784-5714B

Spiral Axle 33 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5714B-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0606

Shave Plate, 33" - MAJESTIC ORANGE (0606)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0638

PLATE:SHAVE:33" - MTD/TROY-BILT RED (0638)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0650

Shave Plate, 33" - RED METALLIC (0650)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-4021

PLATE:SHAVE:33" - CUB YELLOW 2 (4021)

$52.99

$

In Stock, only 1 left!

0

MTD 784-5714B-0691

PLATE:SHAVE:33" - BLACK JACK (0691)

$52.99

$

In Stock, only 1 left!

0

$47.99

$

Usually ships in 3-6 days

0

63

MTD 790-00280

Spiral Axle 45 inches

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00280-4021

Shave Plate, 45" - CUB YELLOW 2 (4021)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0691

Shave Plate, 45" - BLACK JACK (0691)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00280-0638

Shave Plate, 45" - MTD/TROY-BILT RED (0638)

$57.99

$

In Stock, only 1 left!

0

$52.99

$

Usually ships in 3-6 days

0

64

MTD 738-04155

Shear Pin 5/16-18 x 1.75

$1.99

$

In Stock, Qty 20+

0

65

MTD 918-0246

Gear Housing Half - RH

$

$

Not available

66

MTD 941-0170

Flange Bearing

$17.99

$

In Stock, only 2 left!

0

67

MTD 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

68

MTD 711-1133

Auger Drive Shaft

$267.99

$

Usually ships in 3-6 days

0

69

MTD 716-0111

Snap Ring for .875 dia. shaft

$6.49

$

In Stock, Qty 11

0

70

MTD 921-0145

Oil seal for .875 ID Garlock (76 x 6133)

$9.49

$

In Stock, only 4 left!

0

71

MTD 941-0217

Sleeve Bearing .875 ID

$16.99

$

In Stock, Qty 11

0

72

MTD 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$15.99

$

In Stock, only 4 left!

0

73

MTD 936-0291

Flat Washer .88 ID x 1.4 OD x .125

$10.99

$

In Stock, only 3 left!

0

74

MTD 917-0299

Worm Gear LH Double Thread

$115.99

$

In Stock, only 2 left!

0

75

MTD 950-04020

Spacer

$11.99

$

In Stock, only 1 left!

0

76

MTD 936-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 736-0266)

$

$

Not available

77

MTD 917-1425

Worm Gear LH Double Thread (Bronze)

$165.99

$

In Stock, only 2 left!

0

78

MTD 738-0275

Worm Gear Shaft

$104.99

$

Usually ships in 3-6 days

0

79

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

80

MTD 918-0247

Gear Housing Half LH

$96.99

$

In Stock, only 1 left!

0

81

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available
