SB-945 (31AE9P6J590) - White Outdoor Snow Boss Snow Thrower (2005-2) Drive Assembly Parts Diagram

Snow Boss Snow Thrower

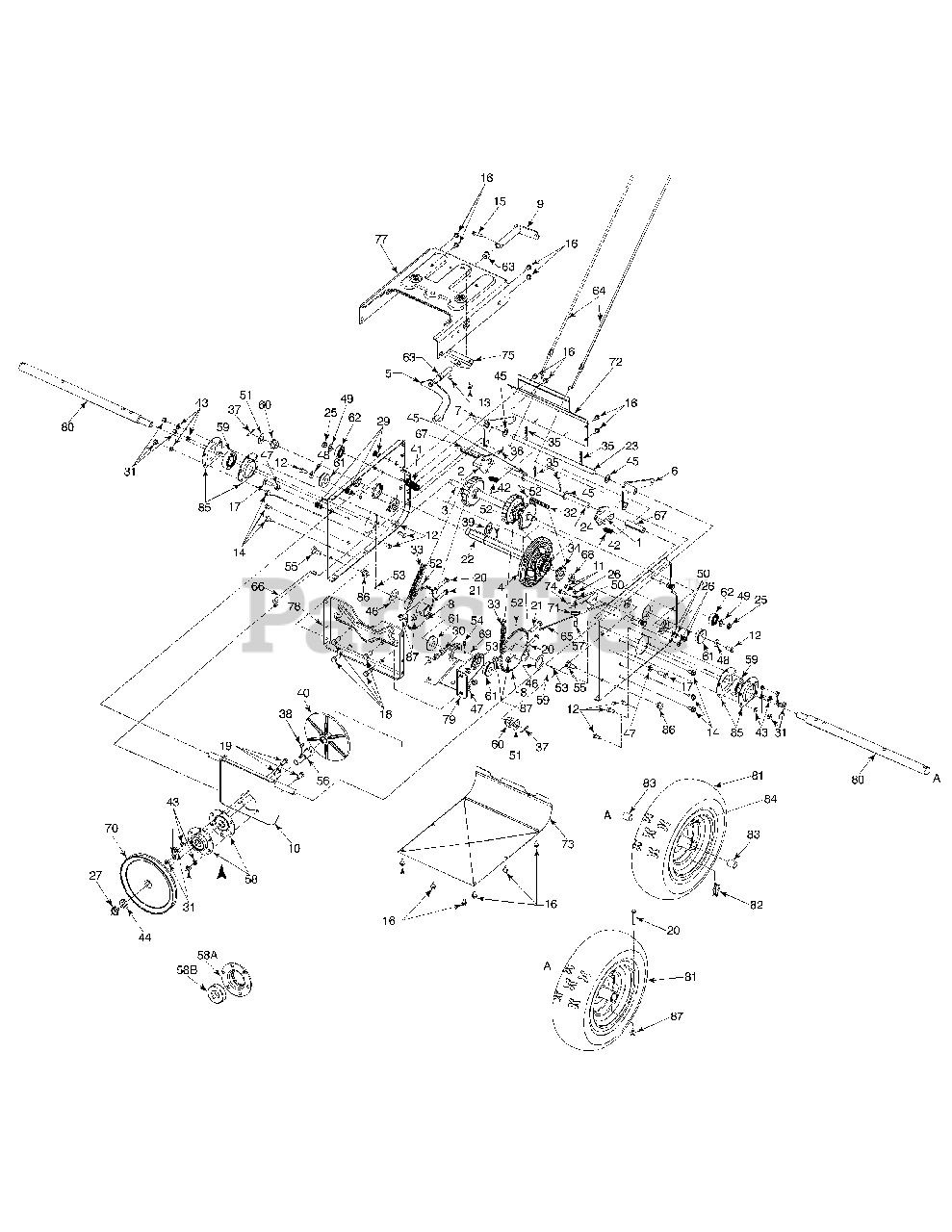

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 618-0279

LH Dog Assembly
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

2

White Outdoor 618-0280

RH Dog Assembly
(Superseded to 918-0280A)

$44.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0282D

Steering Shaft Assembly
(Superseded to 918-0282E)

$593.99

$

Usually ships in 3-6 days

0

4a

White Outdoor 618-04178

Wheel Ass’y Bearing 6.0" OD
(Superseded to 918-07239)

$175.99

$

In Stock, only 4 left!

0

4b

White Outdoor 718-04034

Friction Wheel Bonded

$

$

Not available

4c

White Outdoor 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 8

0

5

White Outdoor 684-04103

Shift Ass’y Rod
(Superseded to 984-04103)

$79.99

$

Usually ships in 3-6 days

0

6

White Outdoor 684-0118

Actuator Auger Bracket Ass’y
(Superseded to 684-0118B-0637)

$

$

Not available

7

White Outdoor 684-0119

Actuator Drive Bracket Ass’y
(Superseded to 684-0119B-0637)

Variations

White Outdoor 684-0119-0637

BRACKET-AUGER ACTUR - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 684-0122

32T Sprocket Ass’y

$238.99

$

Usually ships in 3-6 days

0

9

White Outdoor 684-0161

Shift Arm Ass’y
(Superseded to 684-0161-0637)

Variations

White Outdoor 684-0161-0637

ARM ASSY-SHIFT - POWDER BLACK (0637)

$74.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

10

White Outdoor 684-0162

Support Bracket Ass’y

Variations

White Outdoor 684-0162-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 710-0195

Hex Scr 1/4-28 x .625" Lg
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62

$4.99

$

In Stock, only 2 left!

0

13

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0726

Hex Wash Hd Tap Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 1 left!

0

16

White Outdoor 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-1879

Hex Hd. C-Sunk Scr. 3/8-16 x.880 Gr. 5

$7.49

$

Usually ships in 3-6 days

0

18

White Outdoor 710-3001

Hex Hd. C-Sunk Scr. 3/8-16 x .880 Gr. 5

$7.49

$

In Stock, Qty 5

0

19

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.99

$

In Stock, Qty 17

0

21

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.99

$

In Stock, Qty 20+

0

22

White Outdoor 711-04279

Hex Drive Shaft
(Superseded to 911-04279)

$

$

Not available

23

White Outdoor 711-1193

Actuator Shaft

$

$

Not available

24

White Outdoor 711-1194

Actuator Drive Shaft

$

$

Not available

25

White Outdoor 712-0116

Hex Nut 3/8-24

$4.99

$

In Stock, only 3 left!

0

26

White Outdoor 712-0138

Hex Nut 1/4-28

$7.49

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0413

Hex Jam Locknut 5/8-18 Gr. 5 Nylon

$6.99

$

In Stock, Qty 10

0

29

White Outdoor 712-0717

Nut Insert 3/8-16 UNC

$8.99

$

Usually ships in 3-6 days

0

30

White Outdoor 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 13

0

31

White Outdoor 712-3010

Hex Nut 5/16-18 hd. (Gr. 5)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 713-0284

#41 Chain 1/2" pitch x 36 links- Endless

$25.99

$

Usually ships in 3-6 days

0

33

White Outdoor 713-0286

#420 Chain 1/2" pitch x 40 links-Endless

$70.99

$

Usually ships in 3-6 days

0

34

White Outdoor 713-04015

10T Sprocket #41 x .500
(Superseded to 913-04015)

$12.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

36

White Outdoor 714-0104

Int. Cotter Pin 5/16 DIA

$4.49

$

In Stock, Qty 17

0

37

White Outdoor 714-0115

Cotter Pin 1/8 x 1.0

$4.49

$

In Stock, only 2 left!

0

38

White Outdoor 714-0388

No. 61 Hi-Pro Key 3/16 x 5/8
(Superseded to 914-0388)

$8.49

$

In Stock, Qty 11

0

39

White Outdoor 716-0136

E-ring .875 diam.

$9.49

$

In Stock, Qty 10

0

40

White Outdoor 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$87.99

$

Usually ships in 3-6 days

0

41

White Outdoor 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$15.99

$

In Stock, only 2 left!

0

42

White Outdoor 732-0209

Extension Spring .47 OD x 2.03 Lg.
(Superseded to 932-0209)

$7.99

$

In Stock, Qty 8

0

43

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-0158

Lockwasher 5/16 ID

$4.99

$

In Stock, Qty 8

0

45

White Outdoor 736-0160

Flat Washer .531 ID x .930 OD

$4.49

$

Usually ships in 3-6 days

0

46

White Outdoor 736-0163

Flat Washer 1.03 ID x 1.62 OD x .03

$4.99

$

In Stock, Qty 17

0

47

White Outdoor 736-0217

Lockwasher Heavy 3/8" ID

$4.49

$

In Stock, only 3 left!

0

48

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .06

$4.99

$

In Stock, Qty 20+

0

49

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

51

White Outdoor 736-0623

Flat Washer .64 ID x 1.24 OD x .06
(Superseded to 736-0187)

$4.99

$

In Stock, Qty 20+

0

52

Lubricant - LPS 2 Industrial Strength (purchase locally)

$

$

Not available

53

White Outdoor 737-0318

Grease:Arctic:EP NLGI 1-58F
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

54

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 738-0279

Drive Plate Spindle

$61.99

$

Usually ships in 3-6 days

0

57

White Outdoor 738-0924

Hex Shld.Scr.1/4-28 x .375
(Superseded to 738-0924A)

$7.49

$

In Stock, only 2 left!

0

58A

White Outdoor 741-0163A

Bearing Hsg. Ass’y.

$48.99

$

Usually ships in 3-6 days

0

58B

White Outdoor 08253B

Brg. Housing 1.85" ID

$20.99

$

In Stock, only 4 left!

0

58

White Outdoor 741-0919

Ball Bearing .787 ID x 1.85 OD x .56
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

59

White Outdoor 741-04025

Self aligning brg. 1.0 ID
(Superseded to 941-04025)

$38.99

$

Usually ships in 3-6 days

0

60

White Outdoor 741-0225

Hex Flange Bearing .630 ID
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

61

White Outdoor 741-0563

Ball Bearing w/snap ring
(Superseded to 941-0563)

$38.99

$

In Stock, only 3 left!

0

62

White Outdoor 741-04076

Ball Bearing .5625 ID x 1.3750 x .437

$15.99

$

In Stock, Qty 12

0

63

White Outdoor 741-0748

Flange Bushing .500 ID x .627 OD

$12.99

$

Usually ships in 3-6 days

0

64

White Outdoor 746-0949A

Steering Cable

$55.99

$

Usually ships in 3-6 days

0

65

White Outdoor 746-0951

Auger Idler Cable
(Superseded to 946-0951A)

$47.99

$

In Stock, only 2 left!

0

66

White Outdoor 747-0973

Drive Clutch Rod

$51.99

$

Usually ships in 3-6 days

0

67

White Outdoor 750-0903

Split Spacer 1/2 x 5/8 x 2.69
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

68

White Outdoor 750-0997

Spacer .625 ID x 1.0 OD x .23
(Superseded to 950-0997)

$7.49

$

In Stock, only 2 left!

0

69

White Outdoor 750-1302A

Spacer .6725ID x 1.125OD x 2.485
(Superseded to 750-1302B)

$50.99

$

Usually ships in 3-6 days

0

70

White Outdoor 756-0344

1/2" “V" Pulley .625 ID x 7.50 OD

$86.99

$

Usually ships in 3-6 days

0

71

White Outdoor 756-0625

Cable Guide Roller

$9.99

$

In Stock, Qty 11

0

72

White Outdoor 784-0379

Upper Frame Cover

Variations

White Outdoor 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0379-0662

No Longer Available COVER-UPPER FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0379-0665

No Longer Available COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$14.99

$

Usually ships in 3-6 days

0

73

White Outdoor 784-0380

Lower Frame Cover

Variations

White Outdoor 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

74

White Outdoor 784-0384

Auger Cable Bracket Guide
(Superseded to 784-0384-0637)

Variations

White Outdoor 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

75

White Outdoor 784-0403

Shift Bracket
(Superseded to 784-0403-0637)

Variations

White Outdoor 784-0403-0637

Shift Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 784-0404

Bearing Retaining Bracket

$8.99

$

In Stock, only 2 left!

0

77

White Outdoor 790-00162

Transmission Frame Ass’y (900)

Variations

White Outdoor 790-00162-0662

FRAME:TRANS:900 - OYSTER GRAY

$

$

Not available

White Outdoor 790-00162-0665

FRAME:TRANS:900 - YARDMAN GREEN

$

$

Not available

White Outdoor 790-00162-0709

FRAME:TRANS:900 - MASTERCRAFT GREEN

$

$

Not available

$

$

78

White Outdoor 784-0406

Frame Support Bracket
(Superseded to 784-0406A-0637)

Variations

White Outdoor 784-0406-0637

BRACKET-SUPPORT FRAME - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

79

White Outdoor 784-0407

Axle Brg. Support Bracket
(Superseded to 784-0407-0637)

Variations

White Outdoor 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

80

White Outdoor 738-1164A

Axle.995 x 14.10" Lg (33")

$78.99

$

Usually ships in 3-6 days

0

80

White Outdoor 738-1165A

Axle .995 x 12.6" Lg. (28")
(Superseded to 711-04608A)

$110.99

$

In Stock, only 1 left!

0

80

White Outdoor 738-1166A

Axle .995 x 20.4" Lg. (45")

$170.99

$

Usually ships in 3-6 days

0

81

White Outdoor 734-1531

Wheel Assembly - LH /RH (31AE9M6) 16.5 X 4.8 Snow Hog

$

$

Not available

81

White Outdoor 634-0225

Wheel Assembly - LH (31AE9P6) 16 x 6.5 x 8 X-Trac
(Superseded to 634-0225A)

$269.99

$

Usually ships in 3-6 days

0

81

White Outdoor 634-0226

Wheel Assembly - RH (31AE9P6) 16 x 6.5 x 8 X-Trac
(Superseded to 634-0226A)

Variations

White Outdoor 634-0226-0911

WHEEL COMP-16 X 6. - Carlisle Gray (0911)

$326.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0226-0931

WHEEL COMP-16 X 6. - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

$265.99

$

Usually ships in 3-6 days

0

81

White Outdoor 734-1530

Tire 16.5 X 4.8 Snow Hog

Variations

White Outdoor 734-1530-0901

SNOW HOG TIRE 4.80 - Carlisle (0901)

$178.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$178.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

81

634-0231

Tire 16.5 X 6.5 x 8 X-Trac

$

$

Not available

81

White Outdoor 734-1532

Rim for 16.5 X 4.8 Snow Hog

$

$

Not available

81

White Outdoor 734-2031

Rim for 16.5 X 6.5 x 8 X-Trac

$176.99

$

Usually ships in 3-6 days

0

82

White Outdoor 714-0151A

Klik Pin

$43.99

$

Usually ships in 3-6 days

0

83

White Outdoor 741-0246A

Bearing 1.0 ID x 1.127 OD x 1.00

$14.99

$

Usually ships in 3-6 days

0

84

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

85

White Outdoor 05244A

Bearing Housing
(Superseded to 05244B)

$25.99

$

In Stock, only 2 left!

0

86

White Outdoor 712-04065

Flange L-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 712-04063

Flange L-Nut 5/16-18 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0
